Item:
- 20 LED
- 36 LED
The Hella Marine DuraLED 20 and DuraLED 36 are high-output IP67-rated heavy-duty LED lamps for 9–33V DC systems, delivering 6500K (20 LED) or 5000K (36 LED) white light. Power consumption: 4W (DuraLED20) and 7W (DuraLED36). Each lamp is impact- and shock-resistant, fully sealed, and supplied with 2.5m of marine cable. Certified to ISO 8846 for ignition protection.
- Description
- Ask a Question
-

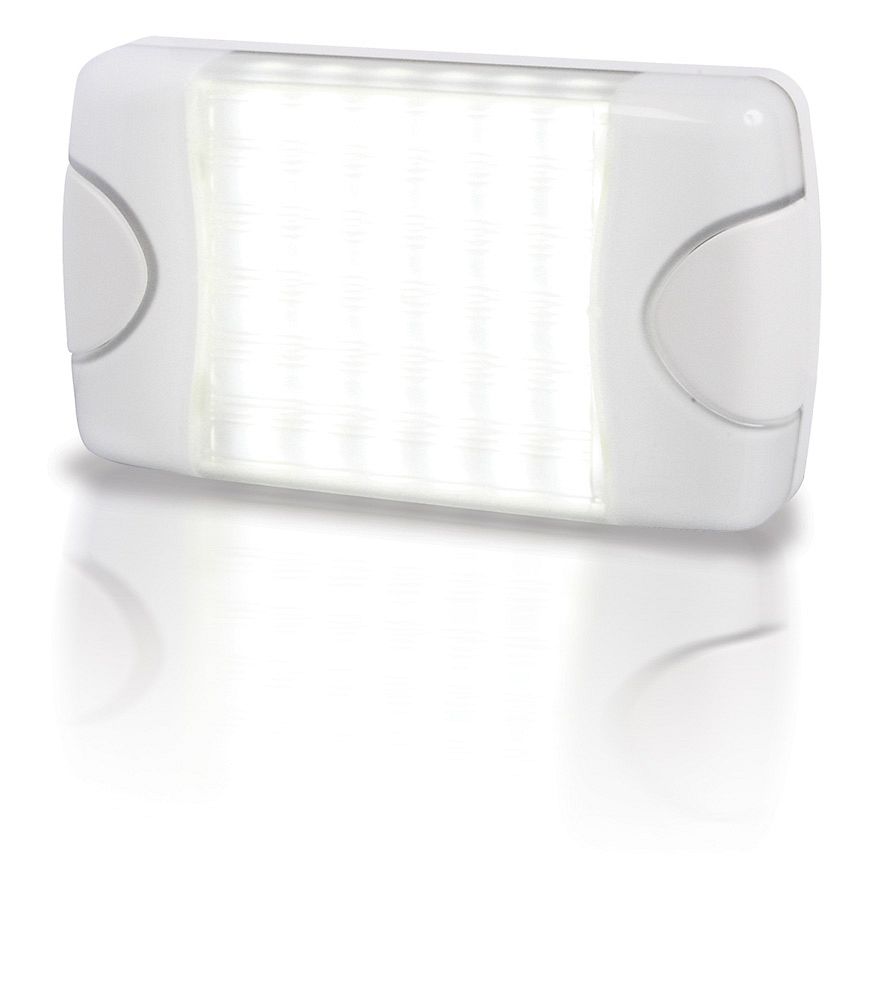

Hella Marine DuraLED 20/36 Heavy Duty Lamp 9–33V DC IP67 Surface Mount – 4W/7W – 177x100 mm White
Description:
The Hella Marine DuraLED 20 and DuraLED 36 are ultra-reliable, heavy-duty LED lighting solutions designed for use in demanding marine environments. Offering cool white light with low power consumption and high durability, these lamps are ideal replacements for traditional incandescent or fluorescent lights in engine rooms, lockers, lazarettes, wet areas, and more.
These lamps feature advanced optic engineering to deliver a wide, glare-free light spread. Each unit is fully sealed and surface-mounted, with a robust nylon bush mounting system that protects the housing from stress. Both models include 2.5m of pre-wired tinned twin-core marine cable for sealed, corrosion-resistant installation. EMC-safe and certified for use in hazardous environments, the DuraLED series is purpose-built to meet ISO 8846 ignition protection standards.
Available Models:
- 2JA 980 608-001 – DuraLED 20 (20 LEDs, 4W, 6500K)
- 2JA 959 037-521 – DuraLED 36 (36 LEDs, 7W, 5000K)
Key Features:
- Heavy-duty LED lamp for marine and industrial applications
- Ultra-low power consumption: 4W (DuraLED 20) or 7W (DuraLED 36)
- Wide beam angle with no harsh point sources or glare
- Multivolt™ technology: 9–33V DC input range
- Pre-wired with 2.5m of twin-core tinned marine-grade cable
- Surface mount with shock-absorbing nylon bush
- Sealed to IP67 standard – fully waterproof and dustproof
- EMC-safe – won’t interfere with radios or electronics
- Ignition protected – compliant with ISO 8846
- Cool-touch operation reduces fire and burn hazards
- UV-resistant impact acrylic lens and white nylon shroud
Specifications:
Product Models 2JA 980 608-001 (DuraLED 20), 2JA 959 037-521 (DuraLED 36) Operating Voltage Multivolt™ 9–33V DC Power Consumption DuraLED 20: <4W
DuraLED 36: <7WCurrent Draw DuraLED 20: <0.33A @ 12V / <0.17A @ 24V
DuraLED 36: <0.51A @ 12V / <0.28A @ 24VColour Temperature DuraLED 20: 6500K
DuraLED 36: 5000KDegree of Protection IP67 (fully sealed, waterproof and dustproof) Ignition Protection ISO 8846 (for use in high-risk areas) Cable 2.5 m of twin-core tinned marine cable Lens Material UV-resistant, enhanced impact acrylic Shroud Material White heavy-duty nylon Installation Surface mount with reinforced nylon bush Dimensions 177 mm x 100 mm Weight 345 g (including cable) Voltage Protection +500V spike / -700V reverse polarity Certifications CE, RCM, UKCA, ISO 8846 (Ignition protection)
Applications:
- Engine compartments
- Storage lockers
- Wet and dry marine environments
- Lazarettes and technical spaces
- Commercial and recreational vessels
Benefits:
- Energy-efficient replacement for fluorescent/incandescent lighting
- Consistent appearance throughout the vessel
- Completely sealed for harsh marine conditions
- Long-life LED technology minimizes maintenance
- Safe for use in explosive or enclosed areas
- Delivers even light with no harsh glare
-
