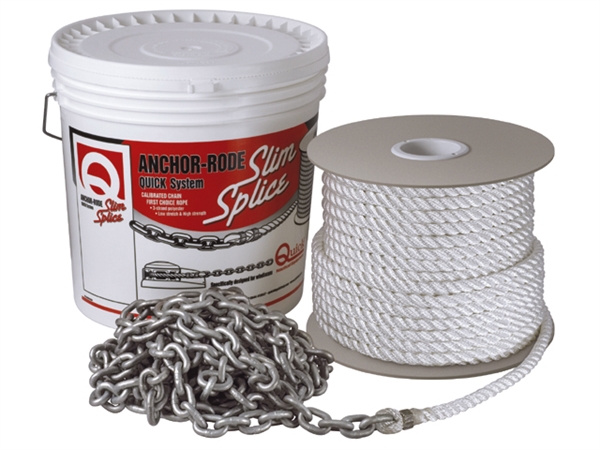

Quick Slim Splice Anchor Rope & Galvanized DIN766 Chain Combination

ID 1348253

$ 533.95

1-2 weeks delivery time

Type:

Chain 6 mm 10 m
Chain 6 mm 20 m
Chain 8 mm 10 m
Chain 8 mm 7,6 m
Chain 8 mm 20 m
Chain 10 mm 6,1 m
Chain 10 mm 10 m
Chain 10 mm 20 m

Item:

Rope 12,7 mm 30 m
Rope 12,7 mm 51 m
Rope 12,7 mm 80 m
Rope 14,2 mm 22,4 m
Rope 14,2 mm 114,4 m
Rope 14,2 mm 51 m
Rope 14,2 mm 80 m
Rope 15,8 mm 53,4 m
Rope 15,8 mm 54,9 m
Rope 15,8 mm 20 m
Rope 15,8 mm 40 m
Rope 15,8 mm 51 m
Rope 15,8 mm 80 m
Rope 12,7 mm 40 m
Rope 12,7 mm 61 m
Rope 12,7 mm 100 m
Rope 14,2 mm 61 m
Rope 14,2 mm 100 m
Rope 14,2 mm 122 m
Rope 14,2 mm 30 m
Rope 15,8 mm 61 m
Rope 15,8 mm 100 m
Rope 15,8 mm 30 m
Rope 15,8 mm 50 m

The Quick Slim Splice Anchor Rope & Chain Combination is a complete anchor rode designed to provide a strong and reliable connection between the anchor and the vessel. Each assembly combines a calibrated galvanized DIN766 chain with a premium 3-strand polyester rope joined by the Quick Slim Splice, creating a slimmer and more tapered transition that helps prevent jamming when passing through the windlass gypsy. Available in multiple configurations with 6 mm, 8 mm and 10 mm chains, rope diameters from 12.7 mm to 15.8 mm, chain lengths from 6.1 to 20 meters, and rope lengths from 20 to 114.4 meters.

Description
Ask a Question

Quick Slim Splice Anchor Rope & Galvanized DIN766 Chain Combination

The Quick Slim Splice Anchor Rope & Chain Combination is a complete anchor rode designed to provide a dependable connection between the anchor and the vessel. Each assembly combines a calibrated galvanized DIN766 chain with a premium 3-strand polyester anchor rope, joined using the proprietary Quick Slim Splice connection.

The splice is the most critical point of any rope and chain combination. Unlike conventional splices, the Quick Slim Splice features a slimmer, tapered profile that significantly reduces the possibility of jamming when the rope-to-chain transition passes through the windlass gypsy. This design helps ensure smoother operation, improved reliability, and extended service life.

Key Features

Complete anchor rode with calibrated galvanized DIN766 chain and 3-strand polyester rope.
Quick Slim Splice connection with a slim, tapered profile.
Helps prevent jamming during rope-to-chain transition through the windlass gypsy.
High-quality polyester rope for strength, flexibility, and durability.
Galvanized calibrated chain designed for compatibility with marine windlasses.
Available in numerous rope, chain, and length configurations.

Available Configurations

Chain Size	Chain Length	Rope Diameter	Rope Length
6 mm DIN766	10 m	12.7 mm	30 m
6 mm DIN766	10 m	12.7 mm	51 m
6 mm DIN766	20 m	12.7 mm	80 m
8 mm DIN766	7.6 m	14.2 mm	22.4 m
8 mm DIN766	7.6 m	14.2 mm	114.4 m
8 mm DIN766	10 m	14.2 mm	51 m
8 mm DIN766	20 m	14.2 mm	80 m
8 mm DIN766	7.6 m	15.8 mm	53.4 m
10 mm DIN766	6.1 m	15.8 mm	54.9 m
10 mm DIN766	10 m	15.8 mm	20 m
10 mm DIN766	10 m	15.8 mm	40 m
10 mm DIN766	10 m	15.8 mm	51 m
10 mm DIN766	20 m	15.8 mm	80 m

Technical Specifications

Specification	Value
Chain Type	Calibrated Galvanized DIN766
Rope Type	3-Strand Polyester
Connection System	Quick Slim Splice
Available Chain Sizes	6 mm, 8 mm, 10 mm
Chain Lengths	6.1 m, 7.6 m, 10 m, 20 m
Rope Diameters	12.7 mm, 14.2 mm, 15.8 mm
Rope Lengths	20 m to 114.4 m (depending on version)

Benefits of the Quick Slim Splice System

Reduced splice diameter for smoother passage through the windlass.
Tapered rope-to-chain transition minimizes snagging.
Improves windlass performance during deployment and retrieval.
Provides excellent strength and long service life.
Suitable for modern anchor windlass installations.

Quick Part Numbers: QALSS-11, QALSS-02, QALSS-12, QALSS-13, QALSS-07, QALSS-15, QALSS-10, QALSS-05, QALSS-14, QALSS-17, QALSS-18, QALSS-19, QALSS-20, QALSS-21
