The Plastimo Flat Anchor is manufactured from hot-dip galvanised steel to provide excellent corrosion resistance and long-term durability in marine environments. This traditional flat anchor design is suitable for boats from 5.5 m to over 25 m and is available in 4 kg, 6 kg, 8 kg, 10 kg, 12 kg, 14 kg, 15 kg, 16 kg, 20 kg, 25 kg, 30 kg, 40 kg, 50 kg and 75 kg versions. Multiple sizes and dimensions allow the anchor to be matched to a wide range of vessels and anchoring requirements.
- Description
- Ask a Question
-

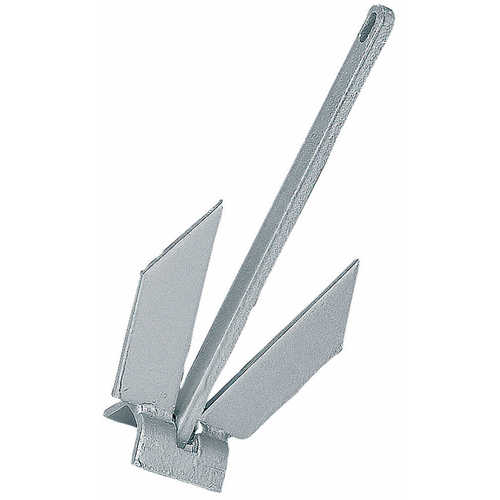

Plastimo Flat Anchor – Hot-Dip Galvanised Steel – 4 kg to 75 kg
The Plastimo Flat Anchor is one of the most widely used anchor designs for recreational and commercial boating. Manufactured from hot-dip galvanised steel, it offers excellent corrosion resistance and long service life in demanding marine environments.
The robust flat anchor construction provides dependable anchoring performance for a wide variety of boats. Available in fourteen weight options ranging from 4 kg to 75 kg, the range covers vessels from 5.5 metres to over 25 metres in length, allowing boat owners to select the appropriate anchor for their application.
Features
- Traditional flat anchor design
- Manufactured from hot-dip galvanised steel
- Excellent corrosion resistance
- Robust welded construction
- Suitable for recreational and commercial marine applications
- Available in fourteen weight options
- Recommended for boats from 5.5 m to over 25 m
Available Variants
Part Number Boat Length Weight A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) 401040 5.5 m 4 kg 410 235 33 12 23 13 401041 5.5 m 6 kg 470 270 40 14 28 15 401042 6.5 m 8 kg 510 305 40 16 32 15 401043 7.5 m 10 kg 580 320 40 16 32 15 401044 9 m 12 kg 590 340 40 16 32 20 P205998 10 m 14 kg 630 375 40 20 40 20 401047 11 m 15 kg 650 375 50 20 40 20 P205999 11.5 m 16 kg 700 375 50 20 40 20 401048 16 m 20 kg 730 400 60 20 45 20 404955 18 m 25 kg 755 440 58 25 50 25 401049 20 m 30 kg 810 500 60 25 50 27 401054 25 m 40 kg 910 510 67 25 50 27 414194 >25 m 50 kg 1000 560 85 26 55 27 414195 >25 m 75 kg 1135 620 88 35 70 27
Technical Specifications
Product Type Flat Anchor Material Hot-Dip Galvanised Steel Finish Hot-Dip Galvanised Application Marine Anchoring Available Weights 4 kg, 6 kg, 8 kg, 10 kg, 12 kg, 14 kg, 15 kg, 16 kg, 20 kg, 25 kg, 30 kg, 40 kg, 50 kg, 75 kg Recommended Boat Length 5.5 m to over 25 m -
