Osculati Chromelux® Stainless Steel Bow Roller with Safety Pin

ID 1384760

$ 75.70

1-2 weeks delivery time

Type:

Short
Standard
Incl.Chain stopper

The Osculati Chromelux® Bow Roller is manufactured from AISI 304 stainless steel with a polished Chromelux® finish and is designed for anchor deployment and retrieval systems. Supplied with a polyamide (nylon) sheave and upper safety pin, the range includes Standard, Anchor Locking, and Short versions to suit different installation requirements. Available in lengths of 170 mm and 210 mm, all models feature a width of 57 mm, a height of 70 mm, and replaceable sheaves for long-term serviceability.

Description
Ask a Question

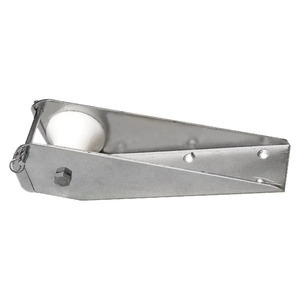

Osculati Chromelux® Stainless Steel Bow Roller with Safety Pin – Standard, Locking & Short Versions

The Osculati Chromelux® Bow Roller is designed to provide reliable anchor deployment, retrieval and storage. Manufactured from AISI 304 stainless steel with a polished Chromelux® finish, it combines corrosion resistance with a durable and attractive appearance suitable for marine installations.

Each model is equipped with a polyamide sheave and an upper safety pin to ensure smooth anchor handling and secure anchor retention. The range includes three configurations to accommodate different anchoring systems and available installation space.

Key Features

AISI 304 stainless steel construction
Chromelux® polished finish
Polyamide (nylon) sheave
Integrated upper safety pin
Designed for anchor deployment and retrieval
Available in Standard, Anchor Locking and Short versions
Replaceable sheave assembly
Marine-grade corrosion-resistant construction

Available Variants

Osculati Code	Length (mm)	Width (mm)	Height (mm)	Version	Spare Sheave	Weight (kg)
01.484.12	210	57	70	Standard	01.346.50	0.63
01.484.13	210	57	70	With Anchor Locker	01.346.50	1.00
01.484.14	170	57	70	Short	01.346.50	0.55

Technical Specifications

Material: AISI 304 stainless steel
Finish: Chromelux® polished finish
Sheave Material: Polyamide (nylon)
Safety Pin: Integrated upper pin
Length Range: 170-210 mm
Width: 57 mm
Height: 70 mm
Product Type: Bow roller for anchor retrieval systems
Replacement Sheave: Osculati 01.346.50

Applications

Anchor deployment systems
Anchor retrieval systems
Bow-mounted anchor installations
Sailing boats and motor boats
Anchor retention and chain guidance

Version Overview

Standard: General-purpose bow roller configuration.
With Anchor Locker: Version equipped with integrated anchor locking functionality.
Short: Compact version for installations with limited bow space.
