ID
1384777
$ 712.66
1-2 weeks delivery time
Type:
- Anchor up to 12 kg
- Anchor up to 20 kg
- Chain stopper
Size, mm:
- 410x85x62
- 510x102x88

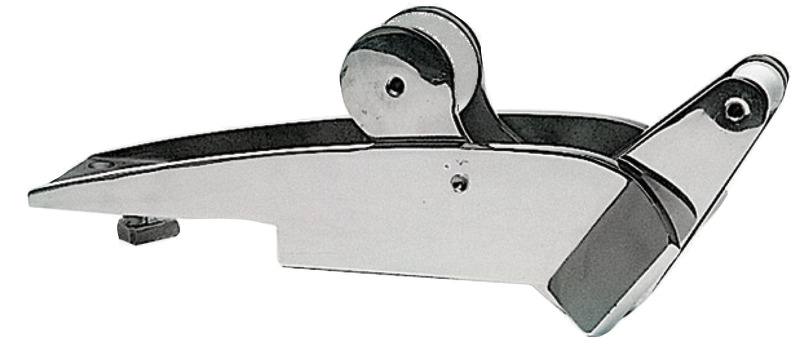

The Osculati See-Saw Bow Roller is manufactured from mirror-polished cast AISI 316 stainless steel and designed for secure anchor deployment, retrieval and stowage. Featuring a wide overhang design, stainless steel sheaves and an integrated anchor locker system, it prevents anchor contact with the bow while ensuring smooth anchor handling. Suitable for CQR, Bruce®, Danforth, Trefoil® and Delta anchors, the range is available for anchors up to 12 kg and 20 kg and supports calibrated chains from 6 mm to 10 mm.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel See-Saw Bow Roller with Anchor Locker Kit – For CQR, Bruce®, Danforth, Trefoil® & Delta Anchors up to 20 kg
The Osculati See-Saw Bow Roller is designed to provide smooth anchor deployment and retrieval while keeping the anchor safely positioned away from the bow. Its extended overhang geometry minimizes the risk of anchor contact with the hull, helping protect the bow during anchoring operations.
Manufactured from mirror-polished cast AISI 316 stainless steel, the assembly offers outstanding corrosion resistance and long-term durability in marine environments. Stainless steel sheaves and an integrated anchor locker system provide reliable anchor handling and secure anchor retention during navigation.
Key Features
- Cast AISI 316 stainless steel construction
- Mirror-polished finish
- See-saw bow roller design
- Integrated anchor locker system
- Wide overhang design to prevent bow contact
- Stainless steel sheaves
- Suitable for multiple anchor types
- Compatible with calibrated anchor chains
Compatible Anchor Types
- CQR anchors
- Bruce® anchors
- Danforth anchors
- Trefoil® anchors
- Delta anchors
- Similar anchor designs
Available Variants
Osculati Code A (mm) B (mm) C (mm) D (mm) E (mm) L (mm) Max Anchor Weight (kg) Chain Ø (mm) Weight (kg) 01.339.10 410 160 250 62 25 85 12 6/8 6.9 01.339.20 530 240 290 88 22 102 20 8/10 10.0
Technical Specifications
- Material: Cast AISI 316 stainless steel
- Finish: Mirror polished
- Sheave Material: Stainless steel
- Anchor Compatibility: CQR, Bruce®, Danforth, Trefoil® and Delta anchors
- Maximum Anchor Capacity: Up to 20 kg
- Chain Compatibility: 6/8 mm and 8/10 mm calibrated chain
- Application: Anchor deployment, retrieval and retention systems
Optional Accessory
Accessory Code Description Compatible Model 01.339.21 Anchor locker kit including rollers, anchor stopper and screw knob 01.339.20
Applications
- Bow-mounted anchoring systems
- Anchor deployment and retrieval
- Anchor retention during navigation
- Sailing yachts
- Motor boats
- Cruising vessels
- Marine anchoring installations
Construction Details
- Heavy-duty cast stainless steel body
- Extended overhang for bow protection
- Integrated anchor locking system
- Stainless steel sheaves for durability
- Designed for demanding marine environments
-
