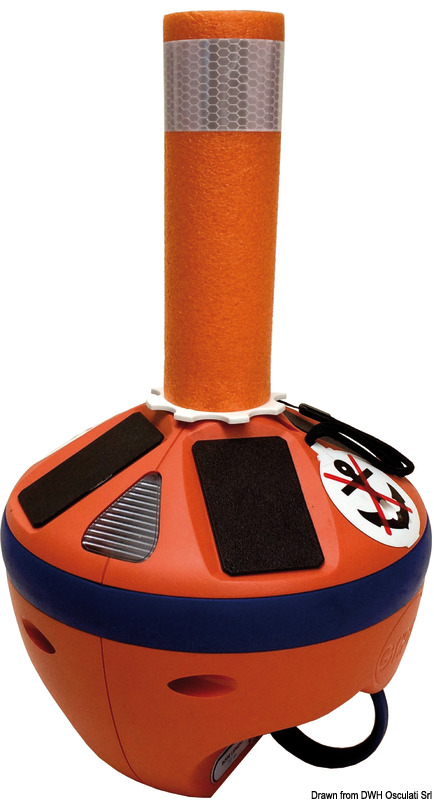

GRIPPY Anchor Recovery Buoy System with Automatic Rope Rewind and Visual Marker

ID 1379056

$ 504.04

1-2 weeks delivery time

Item:

Grippy BASIC
Grippy LIGHT
Grippy HEAVY
Grippy ABR
Extension Rope 10 m

The GRIPPY Anchor Recovery Buoy System is a compact and lightweight anchor retrieval device designed to mark anchor position and simplify anchor recovery. Manufactured in Italy, it features a self-winding floating rope, stainless steel cable anchor guard, integrated visual marker, and fully waterproof electronic and mechanical compartments. Depending on the version, GRIPPY includes automatic solar-powered night lighting and the ABR (Automatic Brake Rope) system. Available in BASIC, LIGHT, HEAVY, and ABR versions with rope lengths from 15 m to 25 m and breaking loads from 500 kg to 1000 kg.

Description
Ask a Question

GRIPPY Anchor Recovery Buoy System with Automatic Rope Rewind and Visual Marker

The GRIPPY Anchor Recovery Buoy System is designed to simplify anchor positioning, marking, and recovery operations. The floating buoy automatically deploys when the anchor is lowered and remains positioned vertically above the anchor location, providing a clear visual indication of the anchor position.

The system incorporates two completely watertight chambers that separate mechanical and electronic components from seawater exposure. All versions are equipped with a stainless steel cable anchor guard that protects the anchor buoy line from abrasion against rocks and allows easy removal of the buoystone when not required.

After anchor retrieval, the buoy automatically rewinds its rope and returns beneath the bow, maintaining a compact and tidy installation.

Key Features

Compact and lightweight anchor recovery buoy system
Manufactured in Italy
Automatic self-winding rope mechanism
Visual anchor position indicator
Two fully watertight compartments
Stainless steel cable anchor guard
Automatic deployment when the anchor is lowered
Automatic rope rewind during anchor recovery
Handrail support included
Retractable visual indicator

Version Features

BASIC: Visual signal marker
LIGHT: Visual marker with automatic solar-powered night lighting
HEAVY: Heavy-duty version with solar-powered night lighting and higher breaking load
ABR: Automatic Brake Rope system with cable locking mechanism and automatic stop function when exceeding 90° inclination during anchor recovery

Available Variants

Osculati Code	Model	Rope Length (m)	Anchor Guard	Breaking Load (kg)	Description	Ø (mm)	Weight (kg)
01.211.05	GRIPPY BASIC	15	Stainless Steel, 500 kg	500	Visual Signaller	200	1.2
01.211.02	GRIPPY LIGHT	25	Stainless Steel, 500 kg	500	Visual Signaller + Automatic Night Lights	200	1.3
01.211.03	GRIPPY HEAVY	20	Stainless Steel, 1200 kg	1000	Visual Signaller + Automatic Night Lights	200	1.4
01.211.04	GRIPPY ABR	20	Stainless Steel, 1200 kg	1000	Visual Signaller + Automatic Night Lights	200	1.5

Optional Accessory

Osculati Code	Description
01.211.09	10 m Rope Extension, 1200 kg Breaking Load

Technical Specifications

Product Type: Anchor Recovery Buoy System
Construction: Waterproof mechanical and electronic chambers
Anchor Guard: Stainless steel cable protection
Power Supply: Solar charging (LIGHT, HEAVY and ABR versions)
Night Lighting: Automatic activation at night (LIGHT, HEAVY and ABR versions)
Diameter: 200 mm
Handrail Support: Included
Visual Indicator: Retractable
Application: Anchor marking and anchor recovery assistance
