ID
1300773
$ 23,977.31
1-2 weeks delivery time
-
+

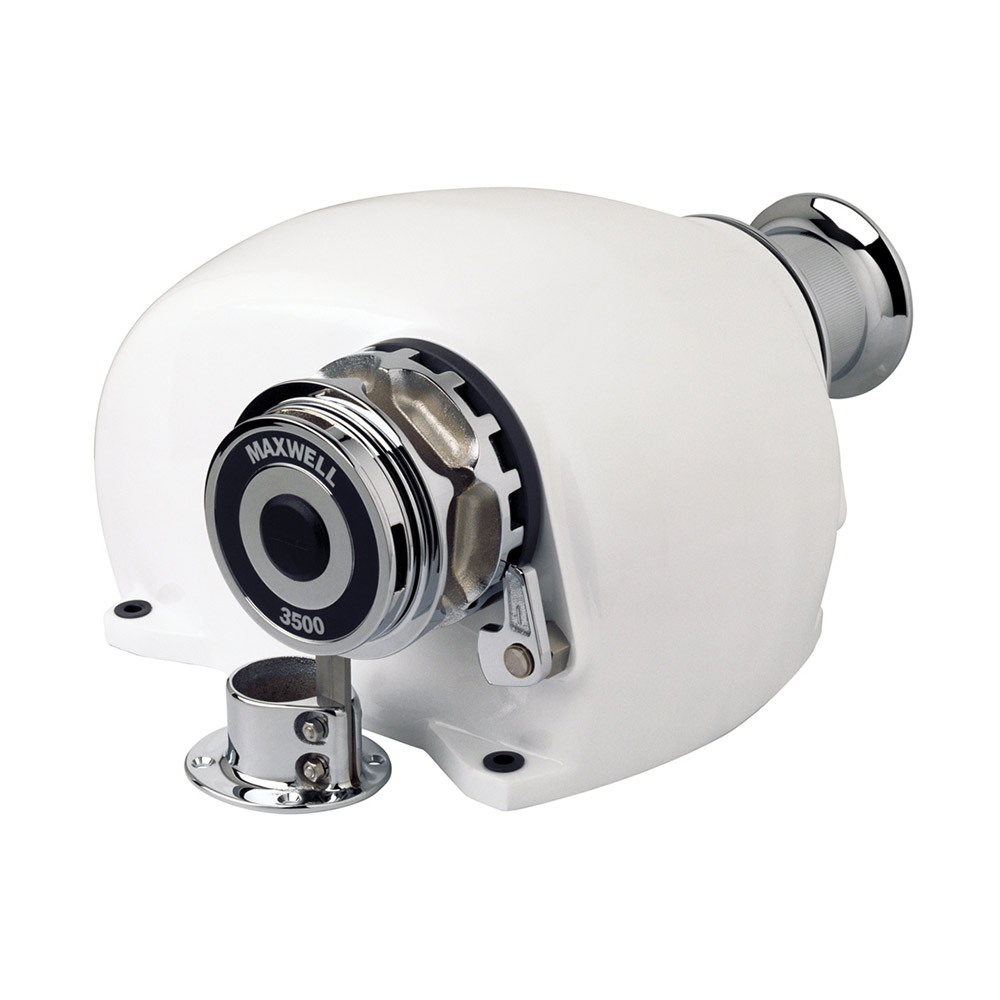

The Maxwell 3500 HWVC Hydraulic Horizontal Windlass Port Chainwheel Drum Starboard Chainwheel (Vetus P106535) is a premium hydraulic-driven marine anchoring system from the HWVC 3500 series featuring a port-side chainwheel and drum combined with a starboard chainwheel configuration. Designed for horizontal deck installation, this hydraulic windlass provides powerful, smooth, and reliable handling of standard 10–13 mm anchor chain and auxiliary rope/chain tasks for larger vessels in demanding marine environments.
- Description
- Ask a Question
-
Maxwell 3500 HWVC Hydraulic Horizontal Windlass Port Chainwheel Drum Starboard Chainwheel (Vetus P106535)
Specification Details Model 3500 HWVC Prt CHW Str CHW DRM Hyd Article Number Vetus P106535 Drive Type Hydraulic Configuration Port-side chainwheel & drum with starboard chainwheel Maximum Pull Capacity Approx. 1590 kg (3500 lb) – typical for HWVC 3500 series Chain Size Compatibility 10–13 mm (3/8″–1/2″) – series standard Hydraulic Pressure Approx. 138 bar (2000 psi) – typical for series Recommended Hydraulic Flow Approx. 40 l/min (11 US gal/min) – typical for series Line Speed (Hydraulic) Approx. 12 m/min (39 ft/min) – typical for hydraulic operation
Technical Features
- Hydraulic drive for continuous, smooth anchoring performance under load
- Horizontal deck-mounted windlass with combined port chainwheel/drum and starboard chainwheel
- Designed for automatic handling of anchor chain and auxiliary rope/chain retrieval
- Compatible with standard marine anchor chains sized 10–13 mm
- Heavy-duty construction in marine-grade materials for durability and corrosion resistance
- Hydraulic operation reduces electrical load and enhances reliability in demanding environments
Applications
- Primary anchoring system on large leisure yachts and commercial vessels
- Hydraulic anchoring installations requiring reliable, smooth chain handling
- Deck operations demanding both anchor chain management and auxiliary rope/chain control
-
