$ 9,779.91
1-2 weeks delivery time
-
+

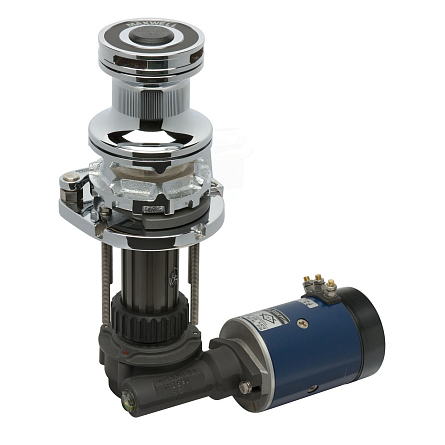

The Maxwell VWRC12HD-12 24V 2000W Anchor Windlass (Vetus P106263) is a high-power 24 V DC electric vertical windlass engineered for marine anchoring systems with 2000 W motor output, 100 mm total deck clearance (TDC), and clockwise (CW) rotation direction. Designed for demanding rope/chain handling, this windlass delivers reliable anchor deployment and retrieval performance on vessels requiring heavy-duty anchoring capability.
- Description
- Ask a Question
-
Maxwell VWRC12HD-12 24V 2000W Anchor Windlass, 100 TDC, Clockwise (Vetus P106263)
Specification Details Brand Maxwell Product Code Vetus P106263 Model VWRC12HD-12 Power Supply 24 V DC Motor Output 2000 W Total Deck Clearance (TDC) 100 mm Rotation Direction Clockwise (CW) Drive Type Electric DC motor Chain/Rope Compatibility Designed for short link chain and rope configurations Installation Type Vertical through-deck mount Application Marine anchoring systems for boats and yachts
Key Features
- Powerful 24 V DC, 2000 W motor for effective anchor retrieval and deployment
- Clockwise (CW) rotation suited for specific anchoring arrangements and vessel layouts
- 100 mm total deck clearance for standard foredeck installation
- Vertical configuration to reduce deck footprint and simplify mounting
- Robust design for reliable performance in marine environments
Installation and Operation Notes
- Requires appropriate onboard 24 V DC electrical supply and protection
- Ensure reinforced structural deck mount suitable for anchoring loads
- Compatible with short link chain and rope configurations for secure anchoring
- Routine maintenance recommended for long-lasting performance
-
