ID
1300626
$ 10,581.38
1-2 weeks delivery time
-
+
The Maxwell RC12-HD 13mm Hydraulic Windlass GT 205bar 200TDC CW with Drum (model Vetus P105876) is a heavy-duty hydraulic anchor windlass designed for marine applications handling 13 mm short-link chain with a 200 TDC clockwise configuration and gear transmission suited for 205 bar hydraulic systems. It includes a chain drum for rope handling and optimized anchor deployment and retrieval.
- Description
- Ask a Question
-
Maxwell RC12-HD 13mm Hydraulic Windlass GT 205bar 200TDC CW with Drum (Vetus P105876)

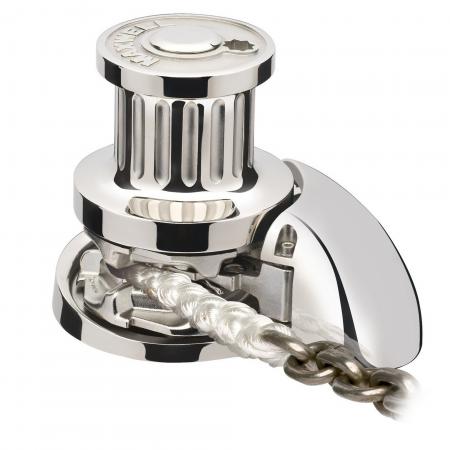

The Maxwell RC12-HD with drum is a robust hydraulic rope/chain windlass engineered for demanding marine environments, compatible with 10-13 mm short link chain and rated for 205 bar hydraulic systems. Designed for 200TDC clockwise operation and equipped with an integrated drum, this model supports reliable anchoring performance on a wide range of vessels.
Specification Details Manufacturer Maxwell (Vetus branded) Model RC12-HD Part Number Vetus P105876 Chain Compatibility Up to 13 mm short link chain Hydraulic Pressure Rating 205 bar Rotation 200TDC clockwise (CW) Drive Type Hydraulic gearbox transmission Anchor Rope Handling Integrated drum for rope or rope/chain combination Typical Use Marine anchoring / light to medium duty commercial vessels
Key Features
- Hydraulic operation optimized for 205 bar supply systems
- Designed for 13 mm chain and corresponding rope sizes
- Clockwise 200TDC rotation for reliable anchoring performance
- Chain drum for combined rope handling during anchor retrieval and pay-out
- Heavy-duty construction suitable for challenging marine conditions
Performance Attributes
- Efficient anchoring operation with hydraulic drive
- Compatibility with standardized chain dimensions in marine use
- High endurance for frequent anchoring cycles
Typical Installation Notes
- Install in conjunction with appropriate chain stop and snubber systems
- Ensure correct hydraulic supply pressure (≈205 bar) for rated performance
- Orientation: clockwise rotation (CW) as per vessel layout requirements
-
