ID
1281859
$ 8,890.22
1-2 weeks delivery time
-
+

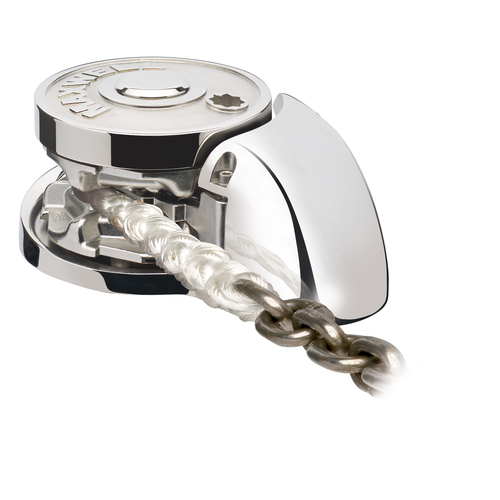

The Maxwell RC12-HD heavy duty vertical electric anchor windlass (Vetus part number P105403) is a powerful anchoring solution featuring a 24 V DC, 2000 W electric drive with anti-clockwise (ACW) rotation and a 100TDC total capacity rating. Designed for use with 10 mm short link anchor chain, this model is supplied without an integrated drum and is engineered to deliver dependable automatic anchor deployment and retrieval under demanding marine operating conditions.
- Description
- Ask a Question
-
Maxwell RC12-HD Heavy Duty Vertical Electric Anchor Windlass, 10 mm Chain, 24V DC, 2000W, 100TDC, ACW (No Drum)
The Maxwell RC12-HD heavy duty vertical electric anchor windlass, supplied under Vetus part number P105403, is engineered for robust anchoring and mooring performance in demanding marine environments. This model features a 24 V DC electric motor rated at 2000 W and is configured for anti-clockwise (ACW) rotation. With a total capacity rating of 100TDC, it is designed for use with 10 mm short link anchor chain and is supplied without an integrated drum (no reel) for chain-only installations.
Design and Functional Features
- Heavy duty vertical windlass configuration suitable for electric drive installations
- 24 V DC electric drive system with high-power 2000 W motor
- Anti-clockwise (ACW) rotation configuration
- Total capacity rating: 100TDC
- Supplied without integrated drum (no reel configuration)
- Designed for reliable automatic anchor deployment and retrieval in demanding marine applications
- Part of the Maxwell RC12-HD heavy duty windlass series featuring Wave Design™ chainwheel technology
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under electric power
- Recommended use with chain stoppers or snubbing devices to remove load from the windlass while at anchor
- Chain stoppers or snubbing systems should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Nominal chain diameter: 10 mm (3/8″)
- Rope compatibility: 16 mm–24 mm nylon rope when used in combined rope/chain systems
Technical Specifications
Parameter Specification Part Number P105403 Model RC12-HD Series Type Heavy Duty Drive Type 24 V DC Electric Motor Power 2000 W Total Drum Capacity 100 TDC Rotation Direction Anti-clockwise (ACW) Drum No Chain Compatibility 10 mm short link chain -
