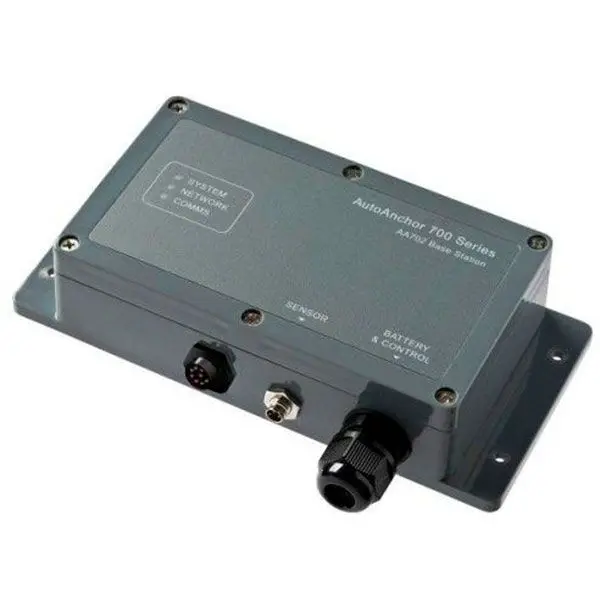

The Maxwell P102982 is a separate base station designed for use with the Maxwell AA710 wireless handheld controller. This base station enables wireless control of up to six onboard systems, including windlasses and thrusters, and allows configuration for dual windlass installations. It is powered directly from a 12 V or 24 V DC onboard power supply.
- Description
- Ask a Question
-
Maxwell AA710 / AA570 Wireless Control Base Station
The Maxwell AA710 / AA570 base station is designed to work in conjunction with the Maxwell AA710 wireless handheld controller. It enables wireless operation of multiple onboard systems through a single remote handset. The base station connects to windlasses, thrusters, and other onboard equipment via six dedicated outputs, supporting flexible system configuration including dual windlass control.
Key Features
- Separate base station for Maxwell AA710 wireless control systems
- Enables wireless control of up to six onboard functions
- Allows control of two windlasses when used in appropriate configurations
- Designed for use with the Maxwell AA710 handheld controller
- Dedicated positive-switching outputs (OUT1–OUT6)
- LED indicators for system status and diagnostics
- Compact and rugged housing suitable for marine environments
System Applications
- Windlass control
- Bow and stern thrusters
- Lights
- Anchor wash systems
- Other onboard equipment
Power Supply
- Powered directly from the vessel’s DC system
- Compatible with 12 V and 24 V DC installations
Technical Specifications
Parameter Specification Product Code P102982 Product Type Wireless Control Base Station Compatible Handset Maxwell AA710 Number of Outputs 6 (OUT1–OUT6) Output Type Positive-switching Operating Voltage 12 V / 24 V DC -
