€ 4.914,81
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Diameter, mm:
- 10
- 12-13
Voltage:
- 12V
- 24V
- HYD

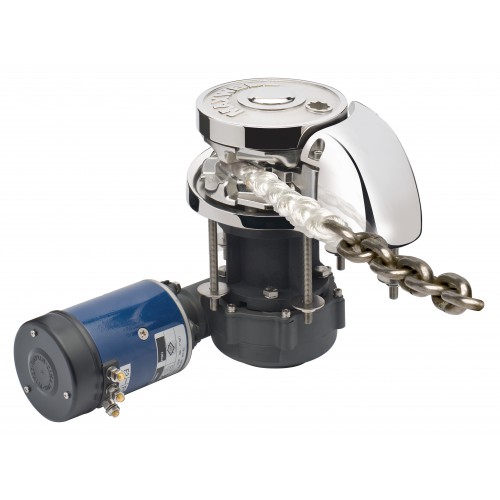

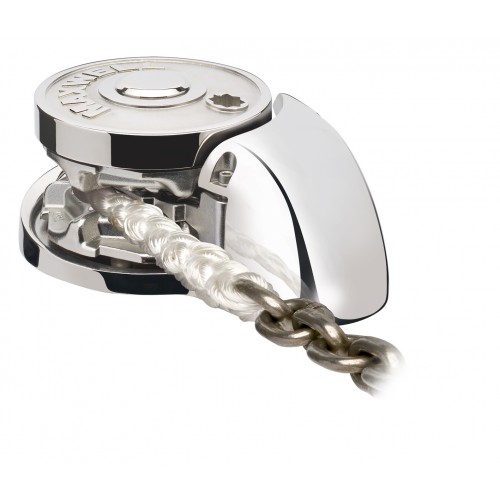

The Maxwell RC12 Anchor Windlass is a high-performance anchor handling system, ideal for vessels between 10.5 and 23 meters. With 316 stainless steel construction, it offers exceptional durability in seawater conditions and supports 10-13 mm chains combined with 16-20 mm cables.
- Description
- Ask a Question
-
The Maxwell RC12 Anchor Windlass represents a new generation of anchor handling systems, combining advanced engineering with an elegant design. Crafted from marine-grade 316 stainless steel, it ensures exceptional corrosion resistance and long-term durability. Designed for vessels between 10.5 and 23 meters, this winch offers smooth operation with 10-13 mm chains and 16-20 mm cables.
Key Features:
- Classic open design with polished 316 stainless steel construction for durability and aesthetics.
- Maximum thrust capacity of 1590 kg with a chain lifting speed of up to 20 m/min, ensuring efficient anchor handling.
- Supports 10 mm (RC12-10) and 13 mm (RC12-12) anchor chains combined with 16-20 mm cables.
- Suitable for metal vessels (10.5-18.5 m) and plastic yachts (11-23 m), adapting to a wide range of vessel types.
- Available in electric (12V/24V) and hydraulic (HYD) models for versatile operation.
- Backed by a 3-year manufacturer's warranty for peace of mind.
Specifications:
Electrical Models:
Model Traction Static Load Chain Lifting Speed Cable Lifting Speed Motor Power Weight Maxwell RC12-10 1134 kg 2200 kg 20 m/min 17 m/min 1200 W 29 kg Maxwell RC12-12 1590 kg 2200 kg 15 m/min 13 m/min 1200 W 29 kg Hydraulic Models:
Model Traction Static Load Chain Lifting Speed Cable Lifting Speed Hydraulic Pressure Hydraulic Flow Weight Maxwell RC12-10 HYD 1134 kg 2200 kg 20 m/min 17 m/min 138 bar 42 l/min 23 kg Maxwell RC12-12 HYD 1590 kg 2200 kg 15 m/min 13 m/min 138 bar 42 l/min 23 kg Dimensions:

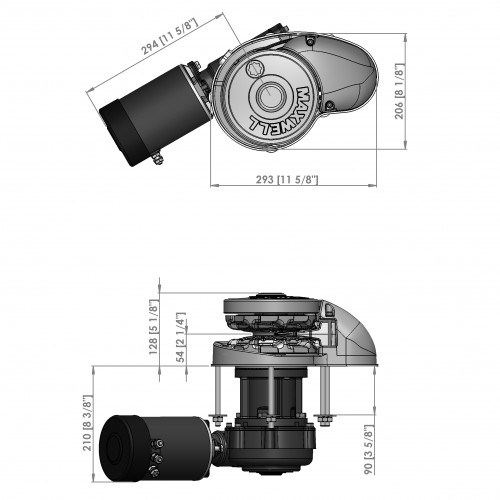

Type A B C D E F G H I J RC12-10 293 mm 128 mm 206 mm 210 mm 294 mm 482 mm 90 mm 54 mm 106 mm 62 mm RC12-12 293 mm 128 mm 206 mm 210 mm 294 mm 482 mm 90 mm 54 mm 106 mm 62 mm Selection Guide:
Model Light Vessel Length Light Vessel (Cable Only) Heavy Vessel Length Chain Size Cable Size Maxwell RC12-10 11.0-16.8 m 11.0-18.5 m 10.7-14.0 m 10 mm 16-20 mm Maxwell RC12-12 13.7-20.5 m 13.7-23.0 m 12.2-18.5 m 12-13 mm 20 mm Vetus Catalog Parts:
P104900, P104901, P104902, P104903, P104904, P104905
Contact our Yacht Supply24 team for assistance or visit our feedback form.
Documents
User's manual - Maxwell RC12 Size: 790,5 KbMaxwell RC12 Anchor Windlass vertical without drum Size: 1,3 Mb -
