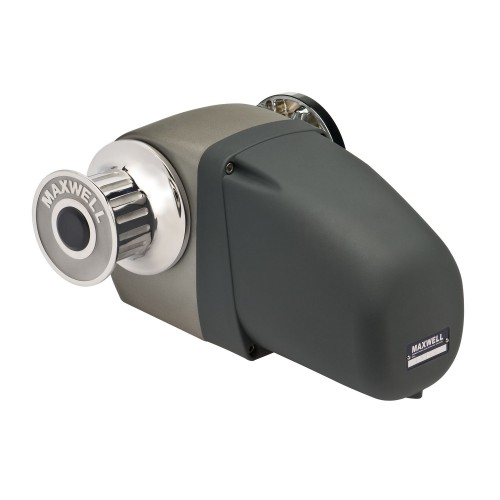

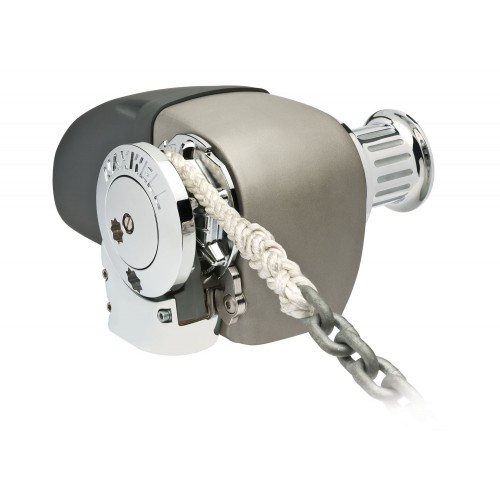

Maxwell HRC10 Drum Horizontal Anchor Windlass

€ 2.099,61

1-2 weeks delivery time
Price incl. 19% VAT

Diameter, mm:

Voltage:

The Maxwell HRC10 Horizontal Drum Anchor Windlass offers a stylish and ergonomic design for effortless anchor handling. Ideal for yachts 9-18 meters long, it supports 8-10 mm chains and 14-16 mm cables, delivering up to 1500 kg of thrust for reliable performance.

Description
Ask a Question

The Maxwell HRC10 Horizontal Drum Anchor Windlass combines functionality, style, and exceptional performance. Designed for horizontal installation, this windlass is ideal for yachts and vessels requiring reliable anchor handling solutions. With a maximum thrust of 1500 kg and compatibility with both 8-10 mm chains and 14-16 mm cables, the HRC10 series ensures seamless operation in all conditions.

Key Features:

Stylish Design: Enhances the visual appeal of your yacht while optimizing below-deck space.
Powerful Performance: Delivers up to 1500 kg of thrust for efficient anchor handling.
Versatile Compatibility: Supports 8-10 mm chains and 14-16 mm cables for flexible installation.
Durable Construction: Engineered for marine environments with corrosion-resistant materials.
Free-Fall Mode: Allows for safe and controlled manual operation during anchoring.

Selection Guide:

Model	Light Vessel	Light Vessel (with cable)	Heavy Vessel	Chain Size	Cable Size
Maxwell HRC10-8	10.0-14.5 m	10.0-16.0 m	8.5-12.2 m	8 mm	14-16 mm
Maxwell HRC10-10	10.7-16.0 m	10.7-17.8 m	9.2-14.0 m	10 mm	16 mm

Specifications:

Model	Traction	Static Load	Lifting Speed (Chain)	Lifting Speed (Cable)	Motor Power	Weight
Maxwell HRC10-8	700 kg	1500 kg	24 m/min	20 m/min	1000 W	19.0 kg
Maxwell HRC10-10	850 kg	1500 kg	24 m/min	20 m/min	1200 W	20.0 kg

Hydraulic Specifications:

Model	Traction	Static Load	Lifting Speed (Chain)	Lifting Speed (Cable)	Hydraulic Pressure	Flow	Weight
Maxwell HRC10-8	700 kg	1500 kg	24 m/min	20 m/min	138 bar	20 l/min	13.0 kg
Maxwell HRC10-10	850 kg	1500 kg	24 m/min	20 m/min	138 bar	20 l/min	14.0 kg

Dimensions:

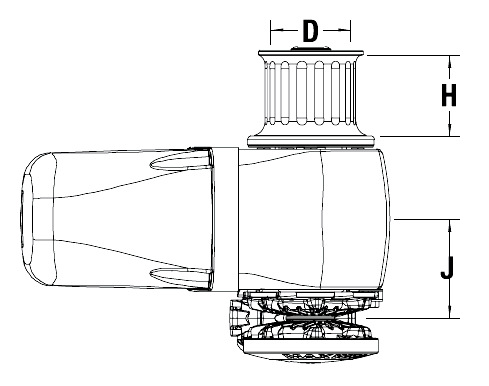

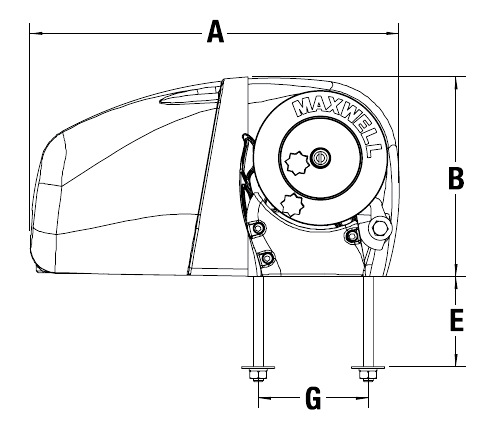

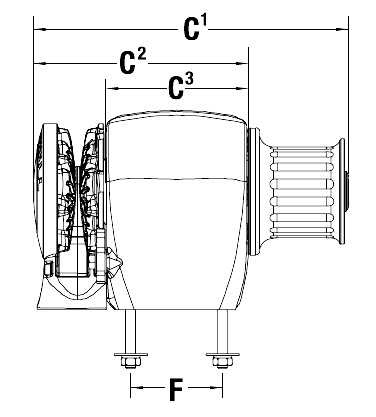

Maxwell HRC10 Drum Dimensions

Type	A	B	S1	C2	C3	D	E	F	G	H	J
HRC10	369 mm	199 mm	316 mm	225 mm	140 mm	80 mm	90 mm	92 mm	110 mm	80 mm	99 mm

Features:

Innovative Wave Design™ sprocket for precise cable/chain engagement.
Durable construction with anodized and composite components for corrosion resistance.
Simple installation and maintenance.
Supports free-fall mode for smooth and controlled anchor deployment.

Warning: Always secure the anchor chain and stop the load on the winch during vessel movement or anchoring to prevent damage or accidental unwinding.
