Lofrans X1 Anchor Windlasses for Boats 7-15 m, Chain 6/8 mm

$ 1.401,41

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

500
800
1000

Item:

Without drum
With drum

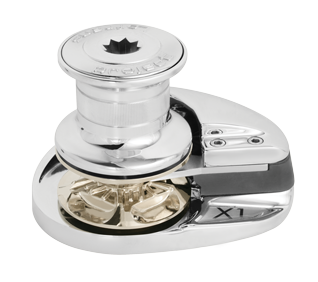

The Lofrans X1 Vertical Windlass is designed for yachts from 7–15 m. Featuring a chrome bronze base, IP67-rated heavy-duty motor, and anodized aluminium gearbox, it offers power options of 500W, 800W, or 1000W at 12V, with chain sizes 6 mm or 8 mm (DIN766/ISO 4565). Available with or without drum, the X1 provides reliable rope-chain handling, manual chain release, and independent gypsy/drum operation.

Description
Ask a Question

Lofrans X1 Vertical Anchor Windlass – For Boats 7–15 m

The Lofrans X1 Anchor Windlass is a premium solution for yachts between 7 and 15 meters. Built with a chrome bronze base and drum, an IP67 heavy-duty electric motor, and an anodised marine aluminium gearbox, the X1 is engineered for durability, efficiency, and long service life. Available in multiple configurations, it can be supplied with or without a drum, and supports both 6 mm and 8 mm DIN766 chains.

Main Features

Corrosion-Resistant Construction: Chrome bronze body and drum, built for marine environments.
Flexible Configurations: Available with or without drum, compatible with 6 mm and 8 mm chains.
Independent Operation: Gypsy and drum can be operated separately for greater versatility.
Manual Chain Release: Ensures easy and safe anchoring adjustments.
Rope-Chain Combination Gypsy: Smooth rope/chain handling with spring-loaded arm.
High Protection Rating: IP67 motor for reliable performance in tough marine conditions.
Maintenance-Friendly: Easy servicing with removable clutch between motor and gearbox.

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD / print)

Technical Specifications – Lofrans X1

Power (W)	Voltage (V)	Drum Option	Chain Size (mm)	Boat Length (m)
500	12	With / Without	6 / 8	7–12
800	12	With / Without	6 / 8	7–12
1000	12	With / Without	8	7–15

The Lofrans X1 Vertical Windlass combines advanced engineering with robust construction, making it a trusted choice for both sailing and motor yachts. For assistance in choosing the right model for your vessel, contact the Yacht Supply24 team.
