QUICK Anchor Control Panel with Anchor Chain Counter and LED Backlight

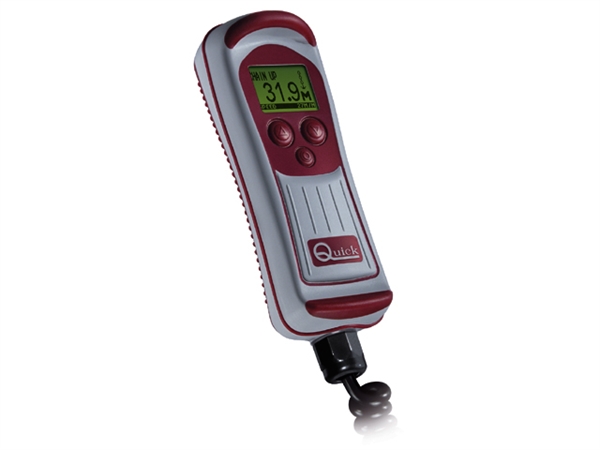

The QUICK CHC 1103 Anchor Control Panel is a versatile and highly durable marine control system designed to streamline anchoring operations. This control panel features a graphic LCD display with LED backlight, ensuring ease of use even in low light conditions. It is built to withstand the rigors of marine environments and offers a range of advanced control functions for both anchor chain management and winching operations.

Key Features:

• High Durability: Constructed with rubber inserts for strength, long-lasting durability, watertightness, and secure grip.
• Extended Cable: Comes with a 4.2-meter cable for flexible installation.
• Waterproof Design: Equipped with a watertight deck plug and socket for reliable marine performance.
• Storage Bracket: Includes a bracket for easy storage when not in use.
• LED Indicator: Comes with an integrated LED indicator for easy operation monitoring.
• Maintenance-Free: The panel requires no maintenance, ensuring uninterrupted operation.

Control Functions:

• Automatic lowering function for precise chain handling.
• Up alarm function for safety.
• Locked keys function to prevent accidental activation.
• Control of the free-fall windlass feature for faster anchor deployment.
• Anchor recovery function in case of sensor failure.

Displayed Information:

• Information can be displayed in 5 languages for global compatibility.
• Chain speed for accurate monitoring of chain retrieval or deployment.
• Supply voltage for continuous performance tracking.
• Depth of lowered chain displayed in meters or feet.

General Features:

• Graphic LCD display with easy-to-read visibility from any angle.
• Backlit display screen with 8 brightness levels for optimal readability.
• 8 different display contrast levels with automatic compensation for varying light conditions.
• CAN bus interface for efficient and reliable data transfer.

Technical Specifications:

• UP/DOWN contacts current: Maximum 4A.
• Supply voltage: 9 to 32 V DC.
• Current absorbed when idling: 31 mA at 12V – 18 mA at 24V.
• Maximum current absorbed: 85 mA + current used by solenoid/reversing solenoid unit.
• Operating temperature: -20°C to +70°C.
• Protection rating: IP 67 (dust-tight and waterproof).
• Communication interface: CAN BUS with a differential transceiver for secure data communication.
• Weight: 750 g (1.65 lb).
