The SiOnyx Nightwave D1 (C014900/C012800/C014700) is a patented marine night vision camera for ultra-low light navigation. Works on 12/24V DC or 5V USB, outputs NTSC 640×480 @30Hz (50 Ohm) and streams 640×480 Wi-Fi at >20 fps to the SiOnyx app or MFD displays. 44° FOV, focus range 10 m to infinity, nitrogen-purged anti-fog lens. Size: 127×127×152 mm, 870 g, cables 5 m 50-Ohm power/video + 2 m USB, IP67, CE certified.
- Description
- Ask a Question
-

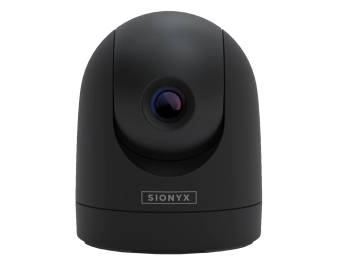

Marine Night Vision Camera for Boat — SiOnyx Nightwave D1 12/24V, IP67, 44° FOV, Full-Color Night Mode
Description
The SiOnyx Nightwave D1 is a globally patented, ultra-low-light marine night vision camera system built for safe nighttime navigation on boats and yachts. Using the XQE1350 BSI Black Silicon CMOS sensor, it provides real-time full-color digital visibility even in moonless starlight, without visible light projection.
Designed for rough maritime conditions, the sealed nitrogen-purged lens prevents internal condensation or fogging during rapid temperature shifts. Nightwave integrates seamlessly with major marine multifunction displays (MFDs) via analog input and can also stream live video directly to phones or tablets through the SiOnyx mobile app via Wi-Fi.
Key Features
- Ultra-low-light full-color digital night vision
- Patented Black Silicon CMOS sensor (XQE1350 BSI)
- 44° wide field of view for enhanced awareness
- Analog output: NTSC 640×480 @30Hz (50 Ohm)
- Wi-Fi streaming: 640×480 @ >20 fps to SiOnyx app
- IP67 waterproof and dustproof marine housing
- Nitrogen-purged anti-fog sealed lens
- Focus detection: 10 m to infinity
- Mount type: 1/4'' × 20 tripod mount
- Power: 12/24V DC or 5V USB
- Operating temperature: −20°C to +50°C
- Cable set: 5 m 50-Ohm video/power + 2 m USB
- Available colors: Black (C014900), White (C012800), Grey (C014700)
- Certification: CE
Technical Specifications
Sensor Type XQE1350 BSI Black Silicon CMOS Sensor Resolution 1280 × 1024 Analog Video Output NTSC 640 × 480 @30Hz, 50 Ohm Wi-Fi Video Output 640 × 480 @ >20 fps Field of View 44° Focus Range 10 m to infinity Lens Diameter 16 mm Mount 1/4'' × 20 tripod mount Housing Dimensions (H×W×D) 127 × 127 × 152 mm Weight 870 g Power Supply 12/24V DC or 5V USB Protection Rating IP67, nitrogen-purged sealed lens Cable Length 5 m (50-Ohm video/power) + 2 m (USB) Connectors SMA / BNC / RCA / USB / Wi-Fi
Package Includes
- SiOnyx Nightwave D1 run-time navigation camera (color as selected)
- 5 m 50-Ohm video/power cable
- 2 m USB cable
- Mounting hardware
- User & installation manual
-
