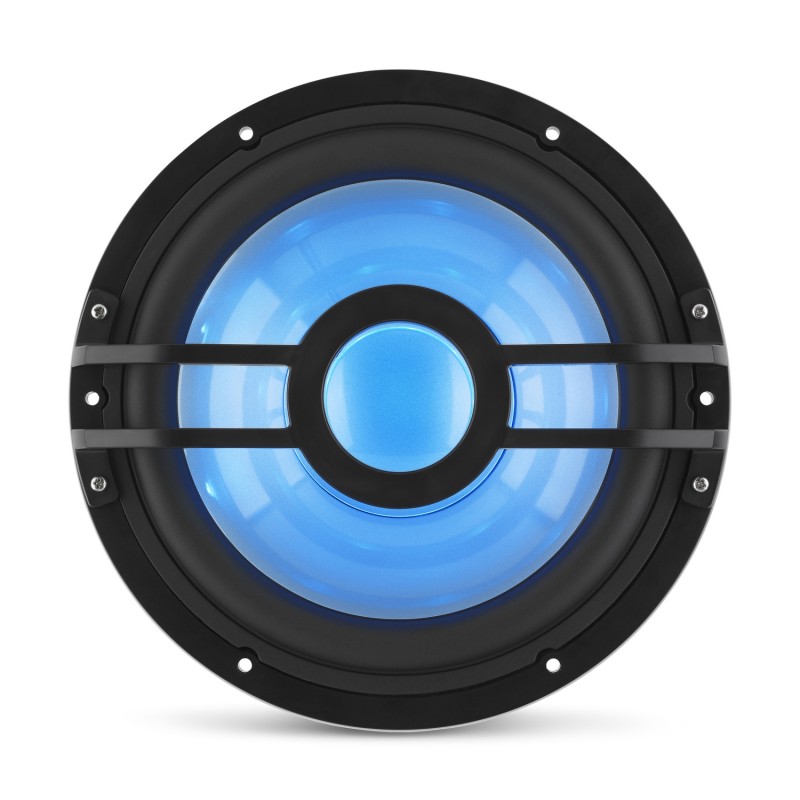

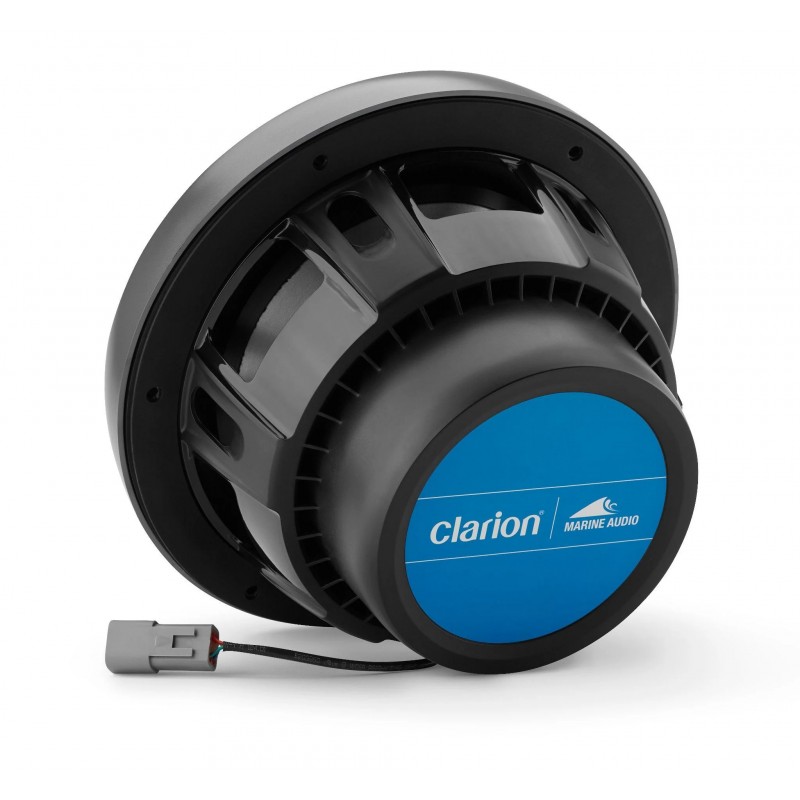

Clarion CMSP-101RGB-4 is a 10-inch marine subwoofer with RGB LED lighting designed for infinite baffle setups, delivering 250 W RMS power handling, 4 Ω impedance, and strong low-frequency output in marine environments.
- Description
- Ask a Question
-

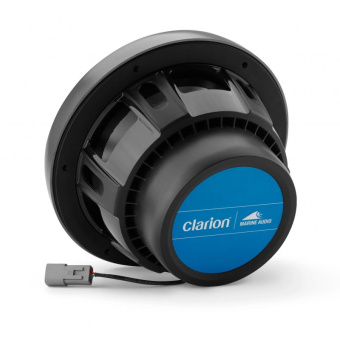

Clarion CMSP-101RGB-4 - 10" Marine Subwoofer W/ RGB LED 4-Ohm 250 Watts 30-500 Khz
Product Description
Marine subwoofer with integrated RGB LED illumination designed for infinite baffle installation without a dedicated rear enclosure. Built for high excursion and low distortion, delivering strong low frequency performance in marine environments. Sold individually without grille.
Key Features
- 10" marine subwoofer with RGB LED lighting
- Optimised for infinite baffle applications
- High power handling and long excursion design
- 4 Ω nominal impedance
- Sold individually, grille not included
Technical Data
Size 10" Colour Black Speaker Type Infinite Baffle Subwoofer Continuous Power Handling (RMS) 250 W Recommended Amplifier Power (RMS) 250 W Sensitivity (SPL @ 1 W/1 m) 86 dB Nominal Impedance 4 Ω Frequency Range 30-500 KHZ Weight 4.85 kg (10.69 lbs) Cone Material Injection-molded polypropylene LED Lighting RGB LED Supply Voltage 10-14.4 VDC LED Load Current @ 14.4 VDC (max) 220 mA
Mounting Dimensions
Physical Diameter (without grille) 269 mm (10.57") Physical Depth 131 mm (5.16") Mounting Depth Clearance 131 mm (5.16") Mounting Hole 222 mm (8.75") Bolt Hole Circle 247 mm (9.72")
Performance Parameters
Free Air Resonance (FS) 2 Ω: 44.81 Hz / 4 Ω: 47.15 Hz Electrical Q (Qes) 2 Ω: 0.832 / 4 Ω: 1.005 Mechanical Q (Qms) 2 Ω: 11.410 / 4 Ω: 11.532 Total Q (Qts) 2 Ω: 0.775 / 4 Ω: 0.925 Equivalent Compliance (Vas) 2 Ω: 0.87 cu ft (24.77 L) / 4 Ω: 0.88 cu ft (24.93 L) One-way Linear Excursion (Xmax) 10 mm (0.39") Effective Piston Area (SD) 0.0314 m² (48.67 in²) DC Resistance (Re) 2 Ω: 2.180 Ω / 4 Ω: 4.080 Ω
Barcode
729218926222
Brand: Clarion
-
