The Isotherm Cruise CR40 Cubic (1040BB1AC0000) is a compact 40-liter marine refrigerator/freezer designed for exceptional installation flexibility, supporting both front-opening and top-loading configurations. Powered by a reliable 12/24V Secop BD35F compressor that can be remotely mounted up to 1.3 meters, the CR40 offers efficient cooling with a low energy draw of 0.186 kWh/24h (front-opening) or 0.786 kWh/24h (top-loading).
- Description
- Ask a Question
-
Isotherm Cruise CR40 Cubic Marine Refrigerator/Freezer – Model 1040BB1AC0000

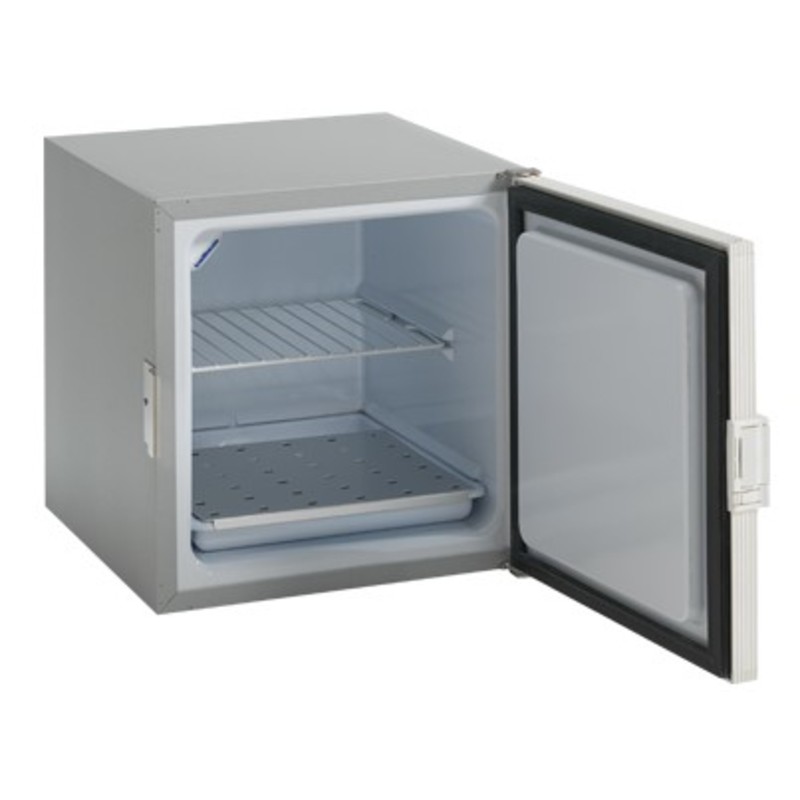

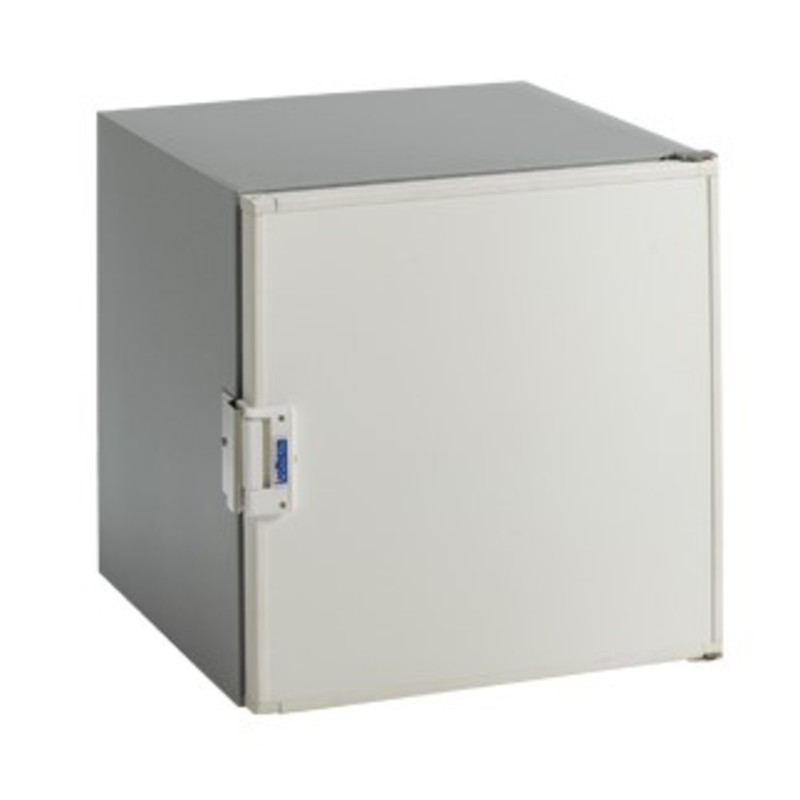

The Isotherm Cruise CR40 Cubic is a highly versatile 40-liter refrigerator/freezer engineered for marine and mobile applications. It can be installed either as a front-opening unit or as a top-loading built-in box, making it suitable for a wide range of cockpit, cabin, or galley configurations. Its removable Secop BD35F 12/24V compressor can be placed up to 1.3 meters away from the cooling box, offering excellent installation flexibility in tight or poorly ventilated spaces.
Main Features
- 40-liter refrigerator/freezer with dual installation options.
- Front-opening or top-loading configuration for maximum flexibility.
- Universal 12/24V Secop BD35F compressor for quiet, efficient cooling.
- Remote compressor installation up to 1.3 meters.
- White front door, compatible with custom panels and finishes.
- Energy-efficient performance with two different consumption modes.
- Reaches -10°C when installed in a well-insulated compartment.
Technical Specifications
Model Code 1040BB1AC0000 Capacity 40 L Voltage 12/24 V DC Compressor Secop BD35F Front-Opening Consumption 0.186 kWh / 24 h Front-Opening Temperature Range +10°C to -12°C Top-Loading Consumption 0.786 kWh / 24 h Top-Loading Temperature Range +10°C to -18°C Weight 17.6 kg Color / Door White (custom panel compatible) Compressor Distance Up to 1.3 m
Installation Configurations
- Front-opening mode: lowest energy consumption (0.186 kWh/24h).
- Top-loading mode: improved freezing capacity (down to -18°C).
- Remote compressor: ideal for tight or hot spaces with limited ventilation.
Performance and Design
The CR40 Cubic is built for marine-grade performance, meeting ISO and EN standards for onboard refrigeration. Its cubic shape, removable compressor, and customizable door panel allow it to integrate seamlessly into cockpit wet bars, helm seats, cabin modules, or compact galleys.
Applications
- Sailboats and yachts requiring flexible refrigeration layouts.
- Powerboats and RIBs with cockpit modules or limited internal space.
- RVs and campervans seeking compact dual-function fridge/freezer solutions.
- Custom furniture installations with remote cooling modules.
The Isotherm Cruise CR40 Cubic (1040BB1AC0000) delivers industry-leading flexibility, energy efficiency, and installation freedom, making it one of the most adaptable 40-liter marine refrigerator/freezer systems available today.
Documents
Isotherm Cruise 40 Cubic Manual Size: 5,3 MbIsotherm Cruise 40 Cubic Spare Parts List Size: 203,4 Kb -
