The Tecma T-NAN012PW/E Nano ECO is a compact 12V marine toilet designed for vessels up to 50 ft (15 m), featuring advanced Turbine Technology for powerful, clog-resistant flushing with only 0.5–2.7 L of water per flush. Equipped with a thermosetting seat, MAC 4 discharge pump, Eco rocker switch, dual check valves with water trap, and quiet low-power operation, it delivers the comfort of a larger toilet while minimizing space, water, and energy consumption.
- Description
- Ask a Question
-

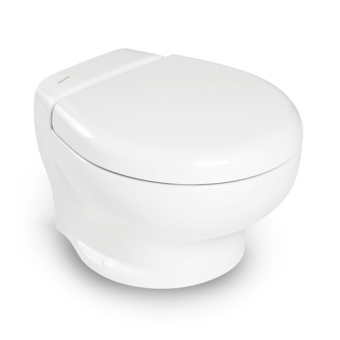

Tecma T-NAN012PW/E Nano ECO 12V Marine Toilet with Turbine Technology
The Tecma T-NAN012PW/E Nano ECO is the most compact macerating toilet in the Tecma range, specifically engineered for boats and yachts up to 50 ft (15 m). Despite its space-saving dimensions, it provides the comfort of a much larger marine toilet while delivering exceptional flushing performance through Tecma's advanced Turbine Technology.
Powered by a 12V electrical system, the Nano ECO combines quiet operation, low water consumption, and minimal energy usage with virtually maintenance-free performance. Its innovative macerator system leaves the bowl clean and dry after every flush, while dual check valves and an integrated water trap help eliminate unpleasant odors.
Key Features
- Compact marine toilet for vessels up to 50 ft (15 m)
- Advanced Turbine Technology for clog-resistant flushing
- Powerful macerator with clean, dry bowl after every flush
- Eco rocker switch reduces water and energy consumption
- Extremely quiet operation
- Dual check valves with integrated water trap for odor prevention
- Compatible with raw water or pressurized fresh water flushing
- Simple plumbing and electrical installation
- Virtually maintenance-free operation
- Thermosetting seat and cover
Technical Specifications
Specification Value Manufacturer Tecma Manufacturer Part Number T-NAN012PW/E Series Nano ECO Operating Voltage 12V DC Recommended Vessel Size Up to 50 ft (15 m) Technology Turbine Technology Seat Height 11.6 in Weight 17.6 kg (38.8 lb) Water Consumption 0.5–2.7 L (0.1–0.7 gal) per flush Color White Seat & Cover Thermosetting Outlet Pump MAC 4 (12/24V) Water Inlet Device Solenoid valve (optional inlet pump) Control Panel Eco rocker switch Optional Control Panels All-in-One SFT / Multiframe SFT / Touch SFT / Premium Plus Flush Water Raw water or pressurized fresh water
Benefits
- Small footprint makes installation easy in compact marine heads.
- Turbine Technology provides powerful, clog-resistant flushing.
- Quiet operation improves onboard comfort.
- Low water and electrical consumption help conserve onboard resources.
- Dual check valves and water trap minimize odor formation.
- Leaves the bowl clean and dry after each flush.
- Designed for simple installation and minimal maintenance.
Applications
The Tecma T-NAN012PW/E Nano ECO is ideal for sailing yachts, motorboats, cruisers, sport boats, and other vessels up to 50 ft where installation space is limited but premium comfort and reliable marine sanitation are required. Its compact dimensions, efficient operation, and advanced flushing technology make it an excellent solution for modern onboard bathrooms.
-
