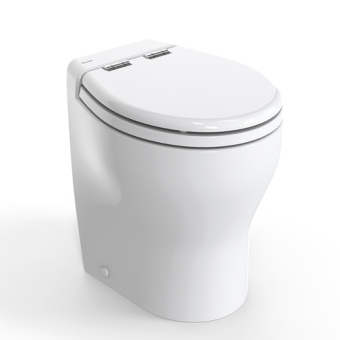

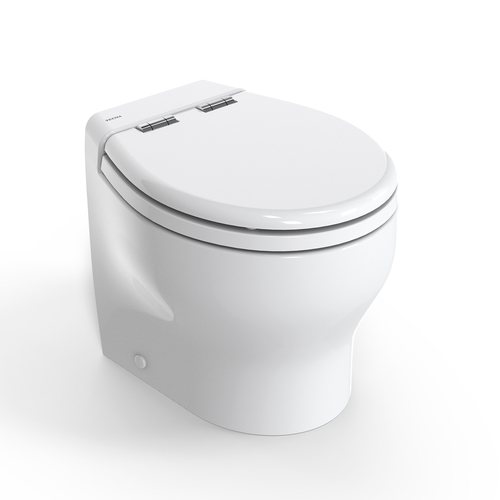

Tecma T-C2G012PW/D02S00 - 12V Elegance 2G Cut Short Marine Toilet All-In-One Standard Panel Poly Soft Closing Inlet Water Pump

ID 1293877

$ 2,518.16

1-2 weeks delivery time

- +

Add to cart

Tecma T-C2G012PW/D02S00 Elegance 2G Cut Short Marine Toilet is a compact 12V electric toilet designed for yachts with angled bulkheads or raised-step bathroom layouts. Equipped with an inlet water pump, MAC 11 discharge pump with a 40 mm outlet, polyester-coated wooden soft-closing seat and All-in-One SFT 2-button control panel, it combines efficient flushing with low water consumption of 0.5–2.7 L per flush. The compact Flexi Line small bowl design maximizes available space while maintaining the refined appearance of the Elegance 2G series.

Description
Ask a Question

Tecma T-C2G012PW/D02S00 12V Elegance 2G Cut Short Marine Toilet with Inlet Water Pump

The Tecma T-C2G012PW/D02S00 Elegance 2G Cut Short is a compact electric marine toilet from the second-generation Flexi Line collection. Designed specifically for installations against angled bulkheads or on raised platforms, the Cut Short configuration allows yacht builders to maximize bathroom space while maintaining a consistent interior design throughout the vessel.

Powered by a 12V DC electrical system, this model is equipped with an inlet water pump, a MAC 11 discharge pump with a 40 mm outlet connection and an All-in-One SFT two-button control panel. The polyester-coated wooden seat incorporates a soft-closing mechanism, while Tecma's second-generation flushing technology provides efficient performance with low water consumption.

Key Features

12V electric marine toilet
Elegance 2G Cut Short configuration
Compact Flexi Line small bowl design
Designed for angled bulkheads and raised-step installations
Italian ceramic construction
Polyester-coated wooden soft-closing seat
Inlet water pump
MAC 11 discharge pump with 40 mm outlet
All-in-One SFT two-button control panel included
Low water consumption of 0.5–2.7 L per flush
Improved second-generation flushing system
Without integrated bidet function

Technical Specifications

Specification	Value
Manufacturer	Tecma
Manufacturer Part Number	T-C2G012PW/D02S00
Series	Elegance 2G Cut Short
Operating voltage	12V DC
Bowl type	Small bowl
Base dimensions	327 × 280 mm
Water consumption	0.5–2.7 L (0.1–0.7 gal) per flush
Standard color	White
Optional colors	Bone / Black
Seat and cover	Polyester-coated wood with soft-close mechanism
Outlet pump	MAC 11 (12/24V) with 40 mm outlet
Water inlet device	Inlet water pump
Control panel	All-in-One SFT (2-button)
Bidet function	Not included

Optional Configurations

Multiframe control panel.
Premium Plus control panel.
Touch control panel.
Polyester-coated wooden seat in black.
Thermosetting soft-closing seat in white.
Thermosetting seat in white or bone.
MAC 11 discharge pump in 110V or 230V versions.
Solenoid water inlet valve.

Applications

The Tecma T-C2G012PW/D02S00 is designed for yacht and boat bathrooms where conventional toilet installations are limited by hull shape or raised-floor layouts. Its compact Cut Short geometry, inlet water pump and second-generation Flexi Line design provide an efficient, space-saving marine sanitation solution while maintaining the elegant styling of the Elegance 2G collection.
