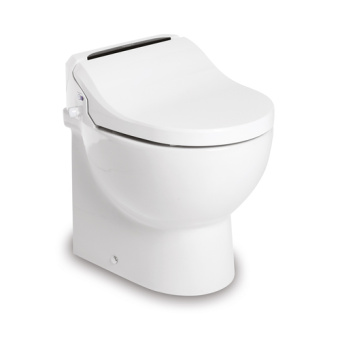

Tecma T-BRU024NW/U02C00 - 24V E-Breeze Marine Toilet Standard Solenoid Valve With Toilet Seat 230V

ID 1369831

$ 4,023.01

1-2 weeks delivery time

- +

Add to cart

Tecma T-BRU024NW/U02C00 E-Breeze Marine Toilet combines a 24V electric toilet system with a mandatory 230V multifunction electronic seat featuring an integrated bidet, heated seat, warm water washing and warm air drying functions. Equipped with a MAC 11 discharge pump, standard solenoid inlet valve and All-in-One 2-button control panel, it delivers low water consumption of 0.5–2.7 L per flush while meeting international hygiene standards with certified electronic bidet technology. The complete unit measures 550 × 390 × 500 mm, weighs 30 kg, and features a durable thermosetting soft-closing seat.

Description
Ask a Question

Tecma T-BRU024NW/U02C00 24V E-Breeze Marine Toilet with Electronic Bidet and 230V Heated Seat

The Tecma T-BRU024NW/U02C00 E-Breeze is an advanced electric marine toilet that combines Tecma's proven sanitation technology with an integrated electronic multifunction bidet system. Designed for premium yacht bathrooms, it provides enhanced hygiene, comfort and convenience while eliminating the need for a separate bidet installation.

The toilet operates from a 24V DC onboard electrical system, while all multifunction seat features require a dedicated 230V AC power supply. Equipped with an integrated electronic bidet, heated thermosetting seat, warm water washing, warm air dryer and deodorizer, the E-Breeze delivers a comprehensive onboard hygiene solution compliant with international certification standards.

Key Features

24V electric marine toilet
230V multifunction electronic toilet seat
Integrated electronic bidet system
Italian ceramic construction
Thermosetting soft-closing seat and cover
Integrated MAC 11 discharge pump
Standard solenoid water inlet valve
All-in-One two-button control panel included
Wireless remote control
Low water consumption of 0.5–2.7 L per flush
Certified electronic hygiene system
Suitable where installation of a separate bidet is not practical

Electronic Bidet Functions

Three washing programs
Integrated electronic bidet
Massage function
Intensive Impulse Pulsation (IIP) spray function
Heated seat with adjustable temperature
Warm water washing with adjustable temperature
Adjustable water spray intensity
Warm air dryer with adjustable temperature
Integrated deodorizer
Automatic nozzle cleaning

Technical Specifications

Specification	Value
Manufacturer	Tecma
Manufacturer Part Number	T-BRU024NW/U02C00
Series	E-Breeze
Toilet operating voltage	24V DC
Electronic seat voltage	220–240V AC, 50 Hz
Dimensions (H × W × D)	550 × 390 × 500 mm
Weight	30 kg (66.1 lb)
Water consumption	0.5–2.7 L (0.1–0.7 gal) per flush
Color	White
Seat and cover	Electronic multifunction thermosetting soft-close seat
Outlet pump	MAC 11 (24V)
Water inlet device	Standard solenoid valve
Control panel	All-in-One (2-button)
Integrated bidet	Electronic
Optional inlet device	Inlet pump

Electronic Seat Specifications

Parameter	Specification
Power supply	220–240V AC, 50 Hz
Maximum power consumption	1160–1380 W
Water supply pressure	0.79–7.40 atm
Seat temperature	34–40°C (93.2–104.0°F), 3 levels
Seat power consumption	55–65 W
Water temperature	34–40°C (93.2–104.0°F), 3 levels
Spray intensity	5 adjustable levels, max. 1 L/min (0.2642 GPM)
Dryer temperature	5 adjustable levels
Dryer power consumption	280–333 W
Electrical protection	15 mA GFCI
Protection rating	IP24
Power cable length	1800 mm (70.9 in)
Number of nozzles	2
Certifications	CQC, CE, IC, IEC, IECEE
Warranty	2 years

Important Installation Information

The toilet operates on a 24V DC electrical system.
All electronic seat and bidet functions require a 220–240V AC power supply.
The multifunction seat will not operate without a 230V connection.
Wireless remote control operates using three AAA batteries.

Applications

The Tecma T-BRU024NW/U02C00 is designed for premium yacht bathrooms where advanced hygiene, passenger comfort and space efficiency are priorities. By integrating a multifunction electronic bidet into the toilet seat, it provides a complete sanitary solution without requiring additional bathroom fixtures.
