ID
1307398
$ 17.58
1-2 weeks delivery time
-
+
The Osculati 13.185.13 Square LED Courtesy Light is a compact marine lighting fixture designed for 12V onboard electrical systems. Manufactured from chrome-plated brass, the fixture provides focused blue courtesy illumination using a single LED delivering 0.5 lumens output with a 30° beam angle while consuming only 0.23W of power. Designed for pressure-fit recessed installation, the light requires a 25.4 mm mounting hole and features compact 30 x 30 mm external dimensions. The IP65-rated waterproof construction makes the fixture suitable for companionways, cockpit seating, stairways, deck passages, and decorative marine ambient lighting applications.
- Description
- Ask a Question
-

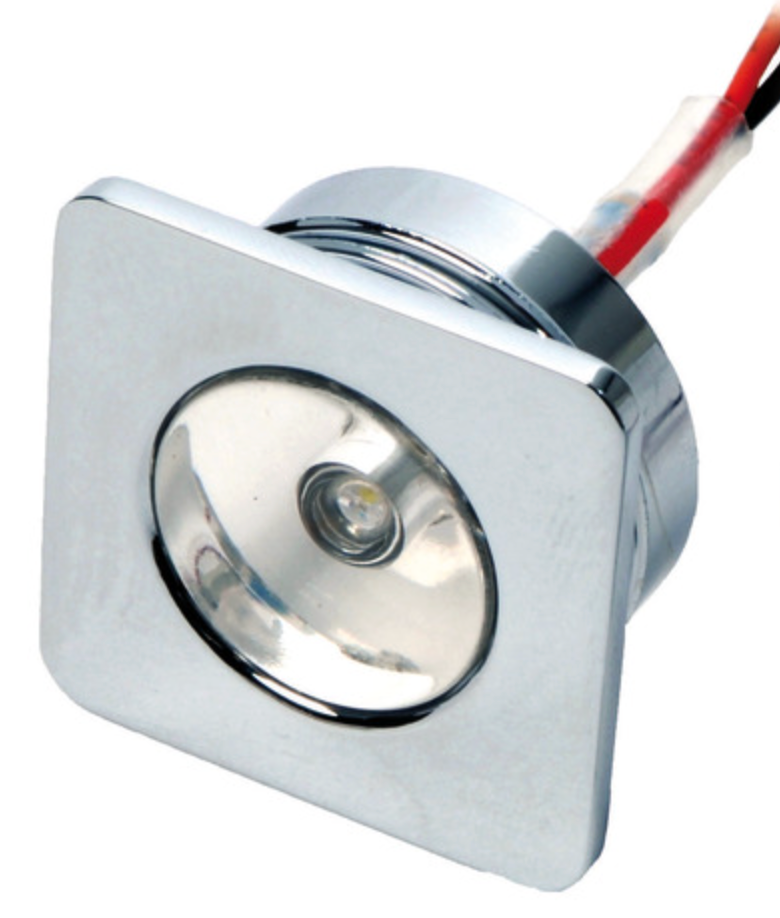

Osculati 13.185.13 Square Blue LED Courtesy Light 30x30 mm in Chrome-Plated Brass
The Osculati 13.185.13 square LED courtesy light is a compact marine lighting fixture developed for onboard ambient and courtesy illumination applications. Designed for 12V electrical systems, the fixture combines low power consumption with durable marine-grade construction.
The housing is manufactured from chrome-plated brass, providing corrosion resistance together with a polished marine finish suitable for modern boat interiors and exterior installations.
The fixture incorporates a single blue LED producing 0.5 lumens output with a focused 30° beam angle while consuming only 0.23W of power. The concentrated lighting configuration is suitable for decorative ambient lighting, companionways, cockpit seating, stairways, and deck passage illumination.
The fixture uses pressure-fit mounting for simplified recessed installation without visible mounting hardware, providing a clean low-profile appearance onboard.
The recessed installation requires a 25.4 mm mounting hole and features compact 30 x 30 mm external dimensions for discreet integration into marine surfaces.
The IP65-rated waterproof construction protects the fixture against dust ingress and water spray exposure, ensuring reliable operation in demanding marine environments.
Main Features
- Compact marine square LED courtesy light
- Suitable for 12V electrical systems
- Chrome-plated brass housing
- Blue LED illumination
- Single LED configuration
- 0.5 lumens light output
- Focused 30° beam angle
- Low 0.23W power consumption
- Pressure-fit recessed mounting
- Compact low-profile design
- IP65 waterproof protection
- Suitable for interior and exterior marine applications
Technical Specifications
Brand Osculati Osculati Code 13.185.13 Product Type Square LED Courtesy Light Front Style Square Operating Voltage 12V Power Consumption 0.23W Luminous Output 0.5 Lumens LED Quantity 1 LED Light Colour Blue Beam Angle 30° Body Material Chrome-Plated Brass Installation Type Pressure Fit Protection Rating IP65 Recess Diameter 25.4 mm External Dimensions 30 x 30 mm -
