ID
1344828
$ 1,116.57
1-2 weeks delivery time
-
+
The EWT 255BS provides an 80° wiping angle, 55 Nm torque, dual-speed motor with speed interval, and self-parking function, engineered for demanding 24 VDC HD1 bulkhead installations.
- Description
- Ask a Question
-

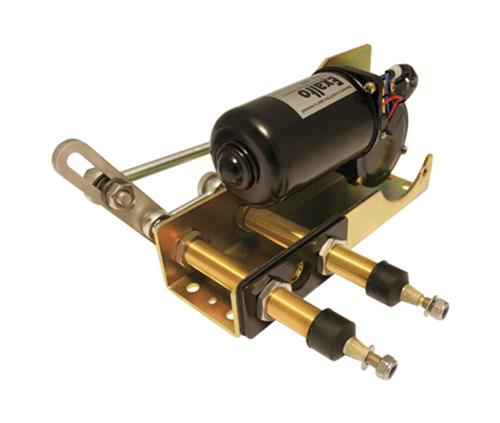

Exalto EWT Wiper 255BS 24V 80° 55Nm Bulkhead 35mm Single
The EWT 255BS with an 80° wiping angle provides the widest sweep within this configuration. Designed for 24 VDC systems, it combines strong torque output with dual-speed performance, speed interval control, and self-parking, making it suitable for demanding HD1 bulkhead installations.
Key Features
- Extra-wide 80° wiping angle
- 55 Nm torque output
- Dual-speed motor with speed interval
- Integrated self-parking function
- Bulkhead mounting for 35 mm wall thickness
- Ungrounded design
Technical Data

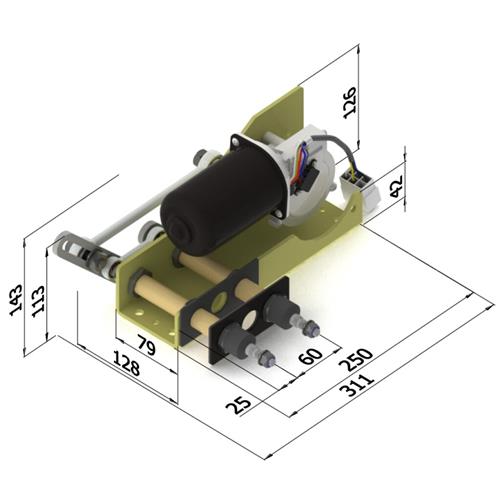

Sales Unit 1 piece Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 80° Driven Axles 1 High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Support Shaft Diameter 20 mm Shaft Length 96 mm Distance HoH 60 mm Arm Type HD1 P10 Suitable For HD1 Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Product Width 311 mm Product Depth 183 mm Product Height 134 mm Wall Thickness 35 mm Series HD1 Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. (Article code: 212455.35S-80) (Barcode: 8720763560185)
-
