ID
1345047
$ 622.14
1-2 weeks delivery time
-
+

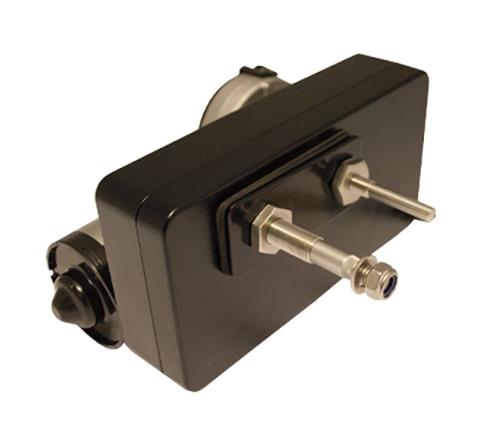

The Exalto EWT 235KGC 12V wiper motor features a 70° wiping angle for the MD1 series, equipped with a pendulum MD1 arm, speed interval function, self-parking, 15 Nm torque, and suitable for 17 mm glass.
- Description
- Ask a Question
-
Exalto EWT Wiper 235KGC 12V 70° 15Nm Glass 17mm
The Exalto EWT 235KGC wiper motor is designed for the MD1 series and operates on 12V DC. It features a pendulum MD1 arm type, speed interval function, and self-parking for reliable wiping performance. With a 70° angle of view and 15 Nm torque, this motor is suitable for glass installations with a wall thickness of 17 mm.
Key Features
- Pendulum arm type MD1
- Speed interval function
- Self-parking system
- Ungrounded design
- Single driven axle
Technical Data
Article Code XA2123-70 Sales Unit 1 piece Series MD1 Suitable For MD1 series Arm Type PENDULUM MD1 Distance HoH 50 mm Angle of View 70° Driven Axles 1 Torque 15 Nm Voltage 12 V Type VDC Power 36 W High Speed 65 rpm Low Speed 47 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Shaft Length 62.6 mm Wall Thickness 17 mm Maximum Arm Length 450 mm Maximum Blade Length 500 mm Product Width 180 mm Product Depth 175.9 mm Product Height 108 mm EAN Code 8720763537101
Brand: Exalto Wiper Technologies B.V. Article code: XA2123-70 Barcode: 8720763537101
-
