ID
1344892
$ 677.14
1-2 weeks delivery time
-
+
The Exalto EWT 232BD 12 V 65° with 35 mm bulkhead delivers extended wiping coverage with 32 Nm torque, self-parking functionality, speed interval operation, and solid MD1-series performance.
- Description
- Ask a Question
-

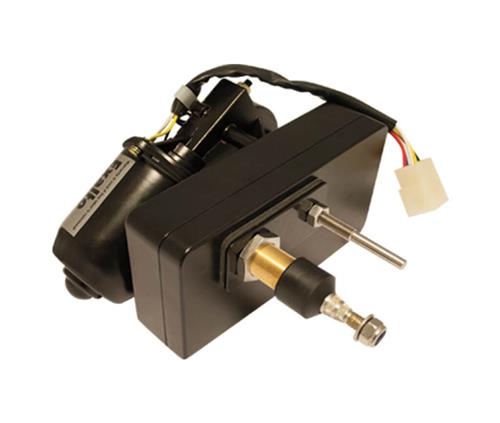

Exalto EWT Wiper 232BD 12V 65° 32Nm Bulkhead 35mm
The Exalto EWT 232BD 12V with a 65° wiping angle provides wide wiping coverage combined with dependable performance. This MD1 series pendulum wiper motor supports bulkhead mounting with 35 mm wall thickness and delivers strong torque with self-parking and speed interval operation.
Key Features
- Self-parking pendulum wiper motor
- Speed interval: yes
- 32 Nm torque for demanding applications
- Bulkhead mounting configuration
- Compatible with MD1 series systems
Technical Data
Sales Unit 1 Pieces Voltage (V) 12 VDC Power (W) 40 Torque (Nm) 32 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Support Shaft Diameter (mm) 6.4 Shaft Length (mm) 90 Distance HoH (mm) 50 Wiping Angle (°) 65° Arm Type MD1 PENDULUM Driven Axles 1 High Speed (rpm) 56 Low Speed (rpm) 38 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 800 Product Width (mm) 200 Product Depth (mm) 214 Product Height (mm) 106 Series MD1 Type (VAC / VDC) VDC Wall Thickness (mm) 35
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.32-65 / Barcode: 8720763535862)
-
