The Exalto EWT 223KGO 24V wiper motor with a 55° wiping angle provides stable performance for MD1 pendulum systems, offering 25Nm torque, speed interval control, and self-parking, suitable for glass installations needing consistent visibility.
- Description
- Ask a Question
-
Exalto EWT Wiper 223KGO 24V 55° 25Nm Glass 17mm

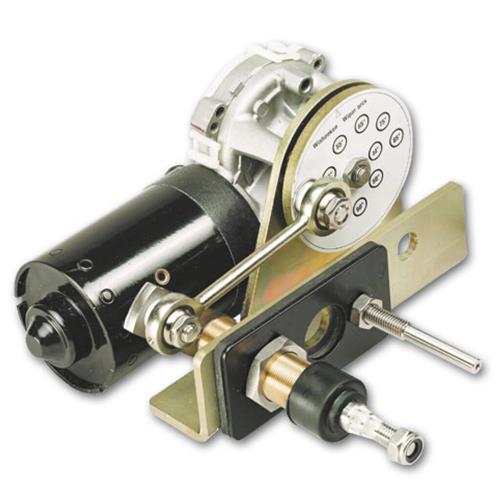

The Exalto EWT 223KGO 24V wiper motor with a 55° wiping angle delivers powerful and stable performance for MD1 pendulum systems. Equipped with a 25Nm torque, speed interval control, and self-parking, this motor is ideal for glass installations requiring consistent visibility.
Key Features
- Pendulum wiper motor for MD1 series
- Fixed 55° angle of view
- Self-parking function
- Speed interval control
- Ungrounded design
Technical Data

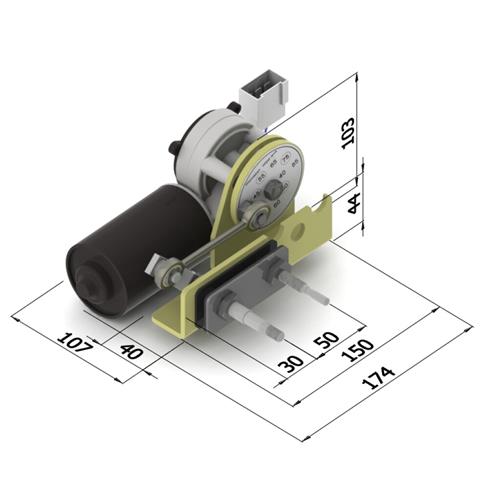

Sales Unit 1 piece Article Code XA2126-55 Barcode 8720763537408 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 PENDULUM Driven Axles 1 Voltage (V) 24 Type VDC Power (W) 36 Torque (Nm) 25 Angle Of View (°) 55° High Speed (rpm) 65 Low Speed (rpm) 47 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Drive Shaft Diameter (mm) 9.5 Shaft Length (mm) 65 Distance HoH (mm) 50 Maximum Arm Length (mm) 450 Maximum Blade Length (mm) 500 Product Width (mm) 150 Product Depth (mm) 174 Product Height (mm) 90 Wall Thickness (mm) 17
Brand: Exalto Wiper Technologies B.V. (Article code: XA2126-55)
-
