ID
1368633
$ 519.69
1-2 weeks delivery time
-
+
24V 250A bipolar inverter for DC motors, suitable for 2, 3 or 4 wire systems, with IP56 protection, low energy consumption and a robust corrosion resistant housing for marine use.
- Description
- Ask a Question
-

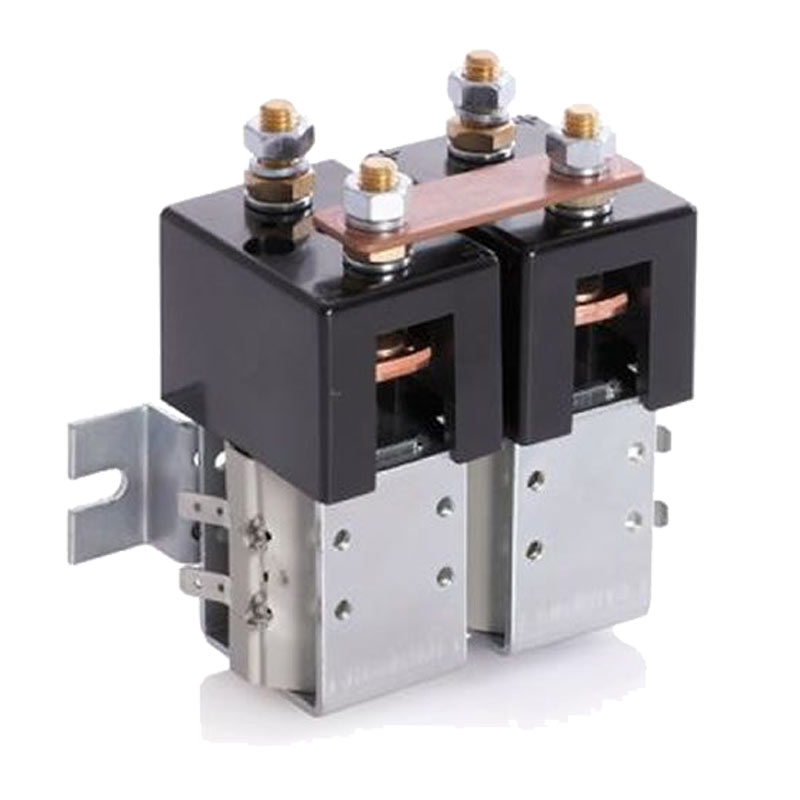

MZ Electronic MZIC20134 - Bipolar Inverter 24V 250A
This bipolar inverter is a high-performance control unit designed for DC motors with 2, 3, or 4 wires. It features a pre-assembled configuration that allows quick and practical electrical connections, simplifying installation across marine applications. Operating within a 10 to 30 VDC range, it delivers efficient performance with low energy consumption.
The unit is built with a durable self-extinguishing polyester resin housing, offering resistance to shocks and marine corrosion. With an IP56 protection rating, it is well suited for demanding environments.
Key Features
- Designed for DC motors with 2, 3, or 4 wires
- Quick and easy installation with pre-assembled connections
- Low energy consumption
- Shock and corrosion resistant housing
- Suitable for marine environments
Technical Data
Type Bipolar inverter Voltage 24V Current 250A Motor Power 3000W Supply Range 10–30 VDC Protection Rating IP56 Weight 1.4kg
Brand: MZ Electronic
-
