Lopolight 400-018 Monitoring Relay supervises navigation lights, detecting normal operation, partial faults, and full failures while learning light behavior over time to indicate aging; it supports RS485 communication and manual panel control with priority for integration into monitoring systems.
- Description
- Ask a Question
-

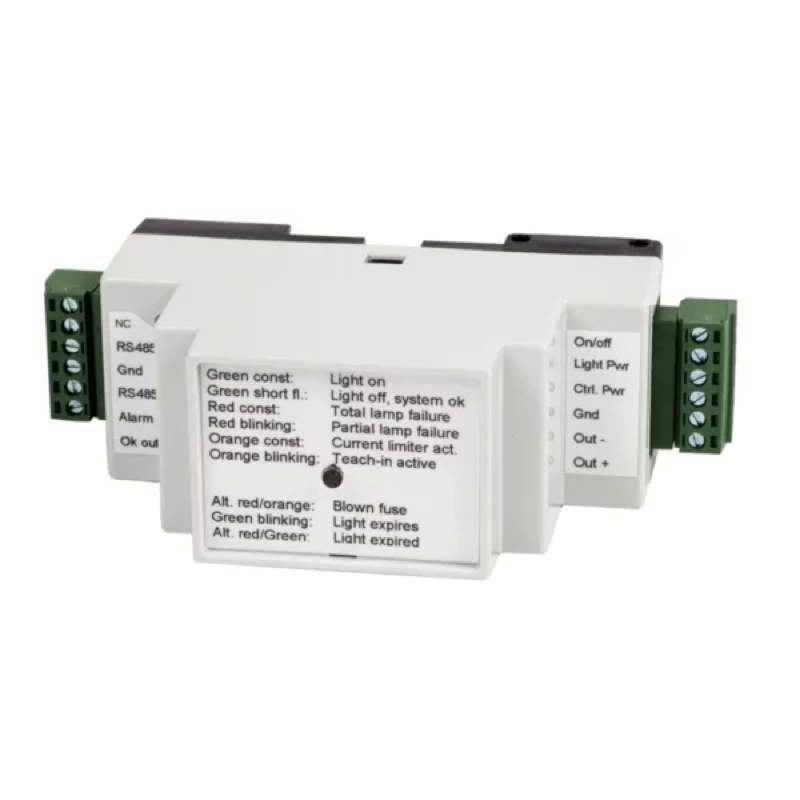

Lopolight 400-018 - Monitoring Relay Navigation Light Control
Product Overview
The Lopolight Monitoring Relay (LMR) is designed to accurately monitor Lopolight navigation lights. It detects operational status, partial faults, and complete failures, regardless of the cause. The system learns the light’s profile over time and indicates when replacement is required due to aging.
The relay supports both manual panel control with priority and communication via RS485 for computer-based monitoring. It is suitable for all vessel types and complies with major maritime standards.
Technical Data
Article Number 187018 Pack Units Piece Controlled Lights 1 Compatibility Lopolight Navigation Lights Only Communication RS485 Standards EN 60945, MSC.253(83), Lloyds Register Approval Lloyds Register ENV1 Mounting M36 DIN-rail enclosure Dimensions 110 x 32 x 58 mm (L x W x H) Weight 65 g
Electrical Specifications
Light Power Supply 10.5–32.0 VDC Controller Power Supply 10.0–32.0 VDC Output Current 20 mA (max 5 VDC) Technology MOS-FET switching
Controller Connections
Alarm Output Activated on partial or full failure OK Output Activated when light operates correctly On/Off Input Switch via GND Ground Common 0V Output to Light 10–32 VDC (+ and - switched)
Diagnostic Indicators
Green Constant Light on, controller ok Green Flash Light off, controller ok Red Constant Total light failure Red Blinking Partial light failure Orange Constant Current limiter active Orange Blinking Teach-in active Red/Orange Alternating Fuse or controller failure Green Blinking Light nearing end of life (>48,000 hrs) Red/Green Alternating Light expired (>50,000 hrs)
Brand: Lopolight
-
