ID
1368980
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
5 pin IP68 quick connector for 4–14 mm cables, built from durable polyamide for high-load electrical connections in demanding industrial and outdoor environments.
- Description
- Ask a Question
-

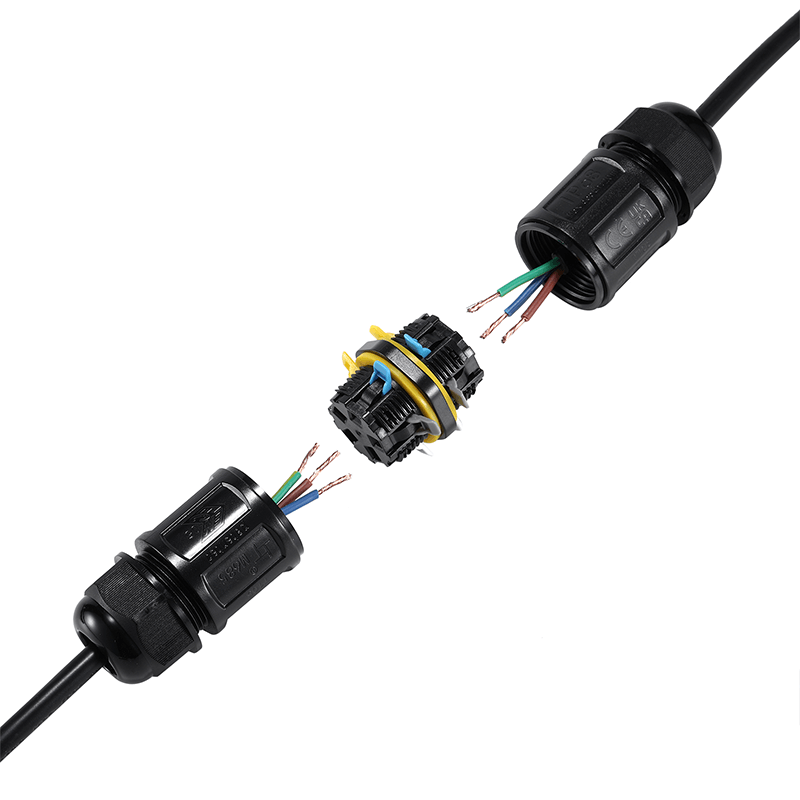

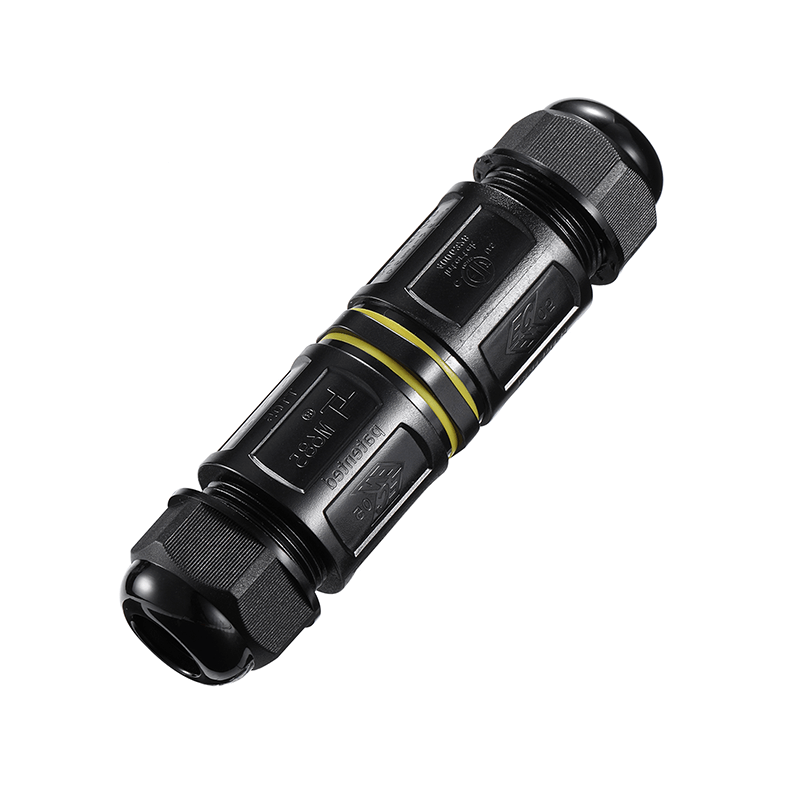

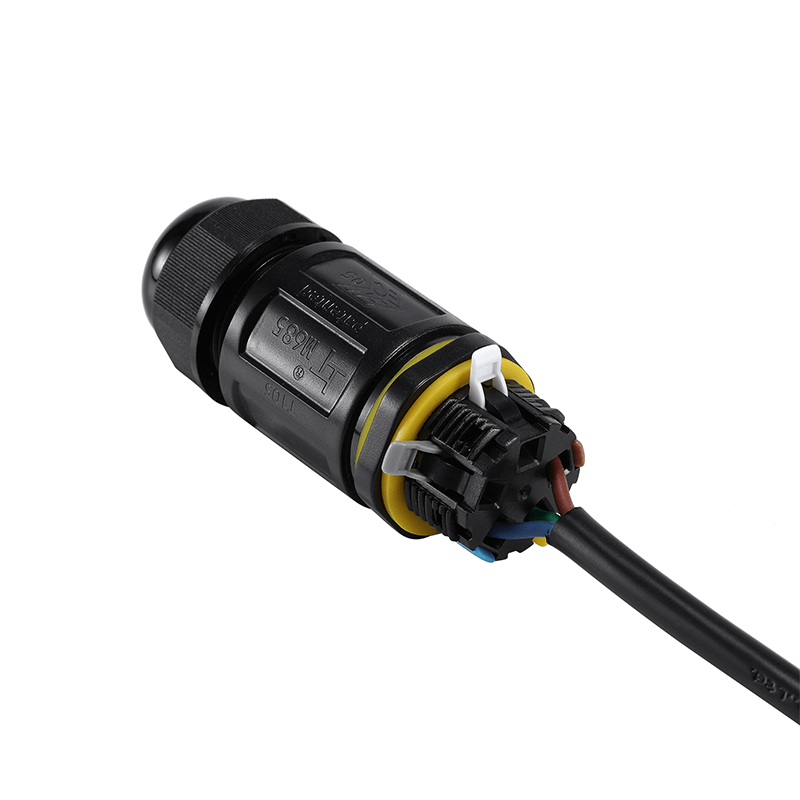

5 Pin Quick Connector IP68 4-14mm
This 5 pin quick connector is designed for secure and durable cable connections in demanding conditions. With an IP68 rating, it offers excellent protection against water and dust, making it suitable for outdoor and industrial applications. The connector supports higher electrical loads and is constructed from robust polyamide material.
Technical Data
Article number 804428 Pack units 1st Connector type 5 pin IP rating IP68 Cable diameter 4–14 mm Input current 32000 mA Input voltage 450 V (AC) Diameter 29.1 mm Length 117.2 mm Material Polyamide Weight 0.06 kg Certifications CB, CE, ENEC, ETL, RoHS, UKCA Outer box width 310 mm Outer box height 300 mm Outer box length 380 mm Outer box weight 12 kg -
