Look at the first number on every panel’s data plate (its cold-weather Voc), add them up, then grab the total wattage of your solar array. On a 12-volt solar power system running 2 panels, choose a 75/15 amp-MPPT solar MPPT whose volt-and-amp limits sit at least 20 % higher than those sums so the controller can handle wake-up surges without damage to the controller. Double the modules? Move to a 100/50 class unit so you still safely charge the battery and keep all Victron products protections live. This one-minute “charge controller do I need” check lets an MPPT out-harvest any bargain-level PWM and MPPT alternative while guarding system integrity.
What is an MPPT Solar Charge Controller and Why Do I Need One?
An MPPT is the array’s traffic cop, forever sliding panel voltage and current to the exact point of highest yield, then trading spare volts for extra amps. That means faster top-ups—and cooler electronics—whenever clouds roll by or frosty dawn pushes voltage high. Whether the rig is an off-grid cabin, camper, or sailboat, an MPPT keeps batteries healthier for years and wrings every watt from the same sunshine—something a plain PWM box simply can’t match.
Understanding Maximum Power Point Tracking Technology
Envision a Victron solar MPPT as a lightning-quick navigator for your 12-volt array: dozens of times per second it samples panel voltage and current, then slides to the precise coordinate where wattage maxes out. Every surplus volt that a PWM regulator would shed as heat is instead up-cycled into extra charging amps, so chilly dawns, drifting clouds, or half-shaded modules still feed your batteries hard. The upshot is a fuller bank, cooler electronics, and a solar power system that runs much closer to its theoretical ceiling from sunrise to sunset.
MPPT vs PWM Charge Controllers: Key Differences
Both PWM and MPPT regulators funnel panel power into a 12-volt battery, yet they do so with very different mind-sets. A PWM unit simply opens or closes like a relay, accepting whatever voltage the panels supply. An MPPT controller, by contrast, constantly re-tunes voltage and current to hit the array’s sweet spot, squeezing out every extra watt. That strategic distinction shows up in six practical areas:
- Watt Recycling — MPPT turns spare panel volts into charging amps; PWM discards them.
- Voltage Headroom — MPPT can handle higher string voltage (handy when you run 2 panels in series); PWM must stay close to battery voltage.
- Price Equation — PWM wins on first-number cost; MPPT repays you with daily energy gains.
- Array Harmony — MPPT copes with cloud shadows and mismatched modules; PWM prefers uniform, full-sun arrays.
- Thermal Discipline — Lower cable losses let MPPT run cooler, guarding system longevity.
- Battery TLC — Smarter multi-stage charging lets an amp-class MPPT top packs quickly yet gently, extending cycle life.
Benefits of Victron Energy MPPT Controllers
A PWM regulator is little more than an electronic switch: it accepts whatever voltage your panels deliver and pulses that straight into your 12-volt battery. A solar MPPT controller, on the other hand, behaves like a fast-thinking DC transformer—sampling array voltage and current dozens of times per second, then nudging operating points until the controller can handle the exact combo that wrings out maximum watts. That difference in strategy echoes through every corner of system performance:
| Real-World Impact | How MPPT Scores the Edge |
|---|---|
| Watt Recycling | Converts spare panel volts into charging amps instead of wasting them. |
| String-Voltage Freedom | Lets you run 2 panels (or more) in series without over-volting a 12-volt bank. |
| Cloud-Cover Harvest | Keeps output high when sunlight shifts or half a module is shaded. |
| Cable & Heat Loss | Higher array voltage means lower current—cooler cables, cooler electronics. |
| Battery TLC | Multi-stage profiles top packs quickly yet gently, boosting cycle life. |
| Mixed-Panel Tolerance | Handles slight watt-rating or age mismatches far better than PWM. |
| Cold-Morning Boost | Captures those voltage spikes at dawn and turns them into usable amps. |
| Future-Proof Growth | Oversize your array now; the MPPT will down-convert safely until you upgrade batteries. |
| Lifetime Cost Curve | Pays back the higher sticker price with daily energy gains and longer component life. |
| On-board Intelligence | Built-in logging and Bluetooth let you see exactly how much extra charge the battery receives. |
How Do I Size the Correct Victron MPPT Charge Controller for My System?
- Confirm cold-weather Voc – Add each panel’s open-circuit voltage, then check that total against the controller’s maximum input rating. Low temperatures drive voltage upward, so leave a safety margin.
- Match watts to amps – Total array watts ÷ battery-bank volts (12 / 24 / 48) equals charging amps. Choose a Victron unit whose output current sits at least 15-20 % above that figure.
- Plan for growth – If you might add modules later, pick the next-size SmartSolar model so future wattage doesn’t overload the hardware.
- Align with battery chemistry – Ensure the controller’s profiles cover your storage type—lithium, AGM, or gel—for accurate multi-stage charging and longer battery life.
Matching Solar Array Size to Charge Controller Capacity
- Check Voltage Headroom – Add every panel’s winter-rated Voc; keep that figure comfortably under the controller’s input-voltage ceiling.
- Compute Required Amps – Array watts ÷ battery-bank volts (12 / 24 / 48) = peak current; choose an MPPT whose amp spec sits at least 20 % above it.
- Pick a Wiring Scheme – String modules in series to raise voltage or in parallel to raise current until both values land inside the MPPT’s safe zone.
- Leave a Buffer – Slight oversizing (within the manufacturer’s margin) recovers energy lost to heat, shade, and cable resistance—keeping your batteries happier all year.
Calculating Required Voltage and Charge Current
Choose an MPPT by matching the array’s winter voltage, peak charging amps, local weather swings, and any future panel upgrades to the controller’s specs—ensuring your solar, battery, and electronics all stay in tune for years of reliable power.
Which Victron SmartSolar MPPT Models Are Available?
Victron covers every scenario: a 75/10 hand-sized unit keeps a lightweight 12-volt camper bank topped up, while a 250/100 giant can shepherd the amp surge from a barn-roof array without stressing the electronics. Each device ships with native BLE monitoring—open the VictronConnect app and you’re looking at volts, amps, and daily harvest in less than a minute. No matter the model, Victron’s ultra-smart tracker hunts the true power point under cloud bursts, cold snaps, or partial shade, squeezing extra watt-hours out of your panels.
SmartSolar MPPT Small Models (75/10 to 100/20)
- 75/10 – One-Panel Specialist - Perfect for a single module and a modest 12-volt load—LEDs, fans, and phone charging—without risking voltage overshoot that could damage the controller.
- 100/20 – Expansion-Ready Workhorse - Designed for 2 panels wired in series or parallel; its higher amp-MPPT ceiling leaves headroom if you bump up the total wattage of your solar later.
- App-Direct Telemetry - Built-in Bluetooth (no dongle) streams real-time data—array voltage, charge current, battery SOC—straight to your phone.
- Voltage Shape-Shifter - Manages higher array voltages yet feeds a rock-steady 12 V battery bank, ideal when cable runs are long and voltage drop is a concern.
- High-Yield Algorithm - Converts surplus panel volts into extra amps, charging the battery faster than any entry-level PWM and MPPT rival.
Choose one of these compact Victron products when space is scarce but reliable, loss-free energy harvest is non-negotiable.
Mid-Range Controllers (100/30 to 100/50)
| Aspect | Refreshed Description |
|---|---|
| Price Band | Sits comfortably in the $100–$150 bracket |
| Chassis | Tough, impact-resistant polymer shell |
| Button Feel | Crisp, tactile clicks with reliable rebound |
| Analog Sticks | Fluid movement, virtually zero centre drift |
| Battery Endurance | 15–20 hours on a single charge |
| Connectivity | Choice of USB-C cable or low-latency wireless |
| Platform Support | Plug-and-play with PCs and major consoles |
| Bonus Feature | Swap-out thumbsticks for customised grip |
Large System Controllers (150V and 250V Models)
Running a multi-kilowatt array? Victron’s 150-volt and 250-volt SmartSolar units are built for it. These industrial-grade trackers tame extra-long series strings—common in off-grid houses, farm sheds, or light-commercial roofs—while their oversize MOSFETs and generous heat-sinking keep temperatures in check. The result: safer cable runs, lower line-loss, and more watt-hours harvested from the same sunshine, even on complex, high-voltage installations.
What Special Features Should I Look for in Victron MPPT Controllers?
Opt for a Victron SmartSolar that packs four forward-looking extras into one chassis: on-board BLE radios that stream live array data to the VictronConnect app; an adaptive charge engine that auto-switches between lithium, AGM, and gel curves on the fly; millisecond-speed MPPT logic that clips every micro-surge of sunlight even as clouds race past; and a temperature probe that nudges set-points higher in frost and lower in midsummer heat. Choose a model flagged “parallel-ready,” so a second unit can be snapped in later—expanding capacity without tossing out the hardware you already own.

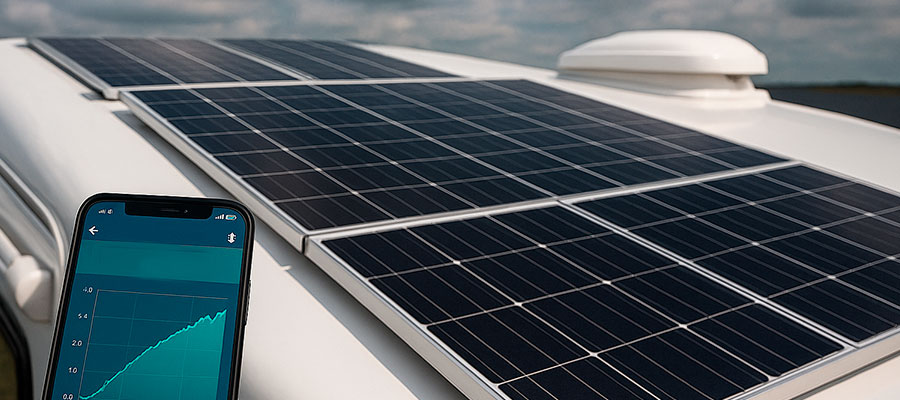

Bluetooth Connectivity and Remote Monitoring
Victron’s Bluetooth-ready controllers turn your phone or tablet into a live dashboard: view incoming array watts, track 12-volt battery voltage, and tweak charge profiles without crawling over gear or decoding tiny LCDs. Instant alerts flag any voltage drift, and one tap lets you retune settings after you bolt on extra panels—making system checks as easy as scrolling a feed.
Integration with Larger Victron Electrical Systems
Each MPPT slots straight into Victron’s networking backbone, chatting fluently with their inverters, battery monitors, and shunt meters. The result? A self-coordinating micro-grid that balances solar harvest, AC loads, and storage in real time—no wiring gymnastics or third-party bridges required—perfect for cabins, yachts, and expanding off-grid sites.
How Do I Install and Configure My Victron Solar Charge Controller?
Install your Victron MPPT in three deliberate moves. First, bolt the unit where air circulates freely and heat can escape, then attach the battery leads before touching the PV cables—this “battery-first” step powers up the electronics without risking a spark. Next, launch Victron Connect on your phone; Bluetooth gives you instant access to voltage, current, and battery-type settings so you can set charge limits in minutes. Finally, torque every terminal firmly, weather-seal the cable glands, and let the controller’s built-in auto-calibration fine-tune the array for maximum harvest.
Proper Wiring and Connection Best Practices
Well-planned cabling keeps a Victron system running at full tilt. Wake the controller by attaching the battery lugs before anything else, then lock each terminal with a firm torque so no micro-arcs develop. Slip weather sleeves and heat-shrink over every joint, choose low-resistance copper sized to hold voltage sag under two percent, and park blade fuses near both the battery post and the combiner box. Route conductors in tidy, open bundles—good airflow and quick visual checks beat tangled wires and hidden hot spots every time.
Troubleshooting Common Installation Issues
When your array runs two to four modules, sizing the controller correctly is the quickest way to avoid headaches. A Victron SmartSolar MPPT outshines basic PWM units by reshaping panel voltage and current on the fly, squeezing full output even when light or temperature swings. For a 12-volt bank, confirm the controller’s amp ceiling sits safely above the combined short-circuit current of all panels; overshoot by a comfortable margin so cold-weather surges don’t trip protections. Matching specs this way safeguards the controller, preserves battery health, and lets you harvest steady, worry-free power season after season.
