When Anchoring, Where Should You Secure the Anchor Line to the Boat?

Larger boats and yachts may use an anchor windlass, chain stopper, snubber, or bridle to secure the anchor rode. The important rule is that the anchoring load must be carried by a suitable structural attachment point, not by the windlass alone. This guide explains where to attach the anchor line, how to secure it correctly, and how to anchor safely in different conditions.

Where Should You Secure the Anchor Line on a Boat?

The correct attachment point for a conventional single-anchor setup is a bow cleat or another designated strong point at the front of the boat. The fitting must be securely installed, adequately reinforced, and suitable for the expected anchoring loads.

• Small boats: Secure the anchor rope to a properly installed bow cleat.
• Motorboats and sailing yachts: Use the designated bow cleat, bollard, or other approved anchoring attachment point.
• Boats with an anchor windlass: Transfer the anchoring load to a suitable cleat, chain stopper, or other independent strong point.
• All-chain anchoring systems: Use an appropriate chain stopper or nylon snubber or bridle connected to suitable deck fittings.
• Catamarans: A properly configured anchor bridle is commonly used to distribute loads between reinforced attachment points on both hulls.

Before lowering the anchor, ensure that the inboard end of the anchor rope, commonly called the bitter end, is securely attached to the boat. Once sufficient rode has been deployed, the working section must be secured so the boat's weight and movement are supported by the designated anchoring hardware.

Why Is the Bow the Best Place to Secure an Anchor Line?

Anchoring from the bow normally allows the boat to align naturally with the prevailing wind or current. The bow is better suited than the stern to meet approaching waves in a conventional anchoring arrangement.

Securing the anchor line forward provides several advantages:

• Improved boat orientation: The vessel can swing around the anchor as wind or current changes.
• Reduced swamping risk: The bow generally handles approaching waves more safely than a low stern.
• Controlled pulling direction: The rode leads forward through the intended anchoring arrangement.
• Better equipment alignment: Bow rollers, windlasses, and deck fittings are positioned to handle anchor deployment and retrieval.
• More predictable swinging: The boat can follow changes in wind or current within the available swinging radius.

However, securing the rode at the bow does not automatically guarantee good holding power. Anchor type, seabed conditions, rode length, and correct setting technique are also essential.

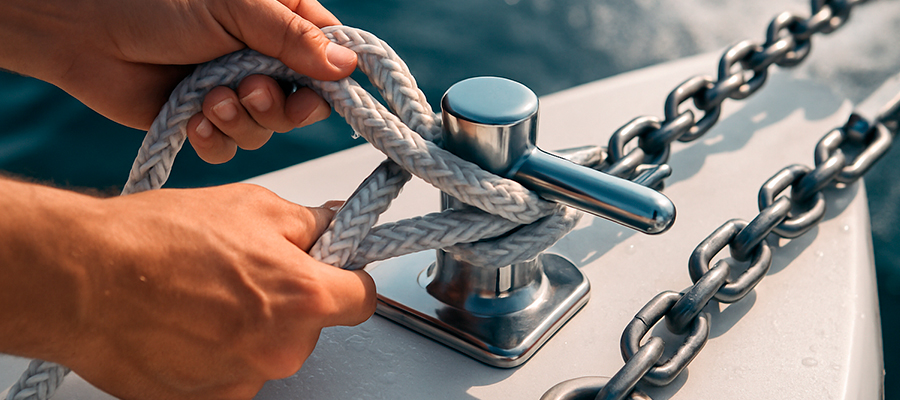

How to Secure an Anchor Rope to a Bow Cleat

On a small boat with a conventional rope-and-chain anchor rode, a cleat hitch is a common method of securing the rope to a properly sized bow cleat.

1. Inspect the cleat. Check that it is firmly attached, free from visible damage, and suitable for anchoring loads.
2. Secure the bitter end. Before deployment, make sure the inboard end of the anchor rope is attached to a designated strong point so the entire rode cannot accidentally run overboard.
3. Deploy the anchor rode. Lower the anchor and pay out the required length while controlling the boat's movement.
4. Lead the rope correctly. Use the designated fairlead or bow fitting, avoiding sharp edges and unnecessary chafing.
5. Make a cleat hitch. Take a turn around the base of the cleat and form a figure-eight over the horns, finishing with a secure locking turn as appropriate for the fitting and rope.
6. Check the attachment. Ensure the hitch is secure, the rope is not rubbing against sharp surfaces, and the load is carried by the cleat.

Use correctly sized boat anchor ropes suitable for the vessel and anchoring arrangement. Nylon is commonly used because its elasticity helps absorb sudden loads from wind and waves.

Safety tip: Never stand inside a loop of anchor rope or allow the rode to wrap around your feet or hands. Keep clear of the loaded line and communicate clearly with the person operating the boat.

Why Should You Avoid Anchoring from the Stern?

Stern anchoring can be dangerous, particularly on small boats. The stern often has less freeboard and may be more vulnerable to water entering over the transom when waves or current push against it.

Possible hazards include:

• Water entering over the stern and swamping the boat.
• Increased risk of flooding or capsizing in strong current or waves.
• Unexpected loads on stern fittings not designed for primary anchoring.
• Reduced ability to align the bow with incoming waves.

Specialized anchoring arrangements may involve stern lines, such as a bow anchor combined with a stern line to shore in a protected Mediterranean anchorage. These arrangements require suitable equipment, careful assessment of conditions, and an understanding of how the boat will respond to changing wind and waves.

For normal recreational anchoring, secure the primary anchor rode at the bow rather than directly to the stern.

How Do Anchor Windlasses, Bow Rollers, and Chain Stoppers Work?

On larger boats, the anchor system commonly includes a bow roller, windlass, anchor chain, and a dedicated securing arrangement. Each component has a different purpose, and understanding these differences helps prevent damage to the equipment.

What Is the Purpose of an Anchor Bow Roller?

Anchor bow rollers guide the anchor and rode over the bow during deployment and retrieval. They help prevent the chain or rope from rubbing against the hull and can support the anchor in its designated stowed position.

The correct roller depends on the anchor's shape, shank dimensions, weight, and installation geometry. Suitable anchor bow rollers should be compatible with both the anchor and the boat's foredeck arrangement.

A bow roller guides the rode but should not be assumed to be the primary load-bearing attachment point unless the complete fitting is specifically designed and rated for that purpose.

Should the Anchor Line Be Secured to the Windlass?

No. An anchor windlass should not be used as the sole attachment point holding a boat at anchor. The windlass is designed to deploy and retrieve the anchor, not to carry continuous anchoring loads from wind, waves, and vessel movement.

Leaving the load on the windlass can damage its gearbox, gypsy, shaft, or mounting hardware. The anchor rode should be secured independently to a suitable cleat, bollard, chain stopper, or other designated strong point.

• Windlass: Deploys and retrieves the anchor and rode.
• Bow roller: Guides the anchor and rode over the bow.
• Bow cleat or bollard: Provides a strong attachment point for appropriate anchoring loads.
• Chain stopper: Mechanically secures the chain and can relieve the windlass of load when correctly installed.
• Anchor snubber: A length of suitable nylon rope used with an all-chain rode to absorb shock loads.
• Anchor bridle: Distributes anchoring loads between designated attachment points, commonly used on multihull boats.

How Do You Secure an All-Chain Anchor Rode?

On a boat using an all-chain anchor rode, the chain normally passes through the bow roller and windlass during deployment. Once the anchor is set, the load should be transferred to equipment designed to carry it.

A properly installed chain stopper can secure the chain independently of the windlass. Alternatively, an appropriately configured nylon snubber or bridle can be connected to the chain and attached to suitable deck cleats, allowing the nylon to absorb some of the dynamic loading.

Choose anchor chain with the correct diameter, grade, and dimensions for the vessel, windlass gypsy, and anchoring equipment.

Always follow the windlass and deck-hardware manufacturers' instructions for securing the rode and transferring the load.

How Much Anchor Line Should You Let Out?

The length of deployed anchor rode affects the pulling angle on the anchor and therefore its ability to remain buried. The relationship between deployed rode length and vertical distance to the seabed is called anchor scope.

How to Calculate the Correct Anchor Scope

Use the following formula:

Anchor Scope = Length of Deployed Rode / Vertical Distance from the Bow Roller to the Seabed

The vertical distance includes the water depth, the height of the bow roller above the water, and any additional rise in water level during the anchoring period.

• 5:1 scope: A commonly used starting point for certain sheltered conditions with a suitable anchoring system.
• 7:1 scope: Often recommended for rope-and-chain systems when additional holding security is needed and sufficient swinging room is available.
• Greater scope: May be required in demanding conditions, depending on the vessel, rode configuration, anchorage, and manufacturer's recommendations.

Example: If the water is 3 m deep, the bow roller is 1 m above the surface, and the expected tidal rise is 1 m, the maximum vertical distance is 5 m. A 5:1 scope requires approximately 25 m of deployed rode, while a 7:1 scope requires approximately 35 m.

The appropriate scope depends on the type of rode, anchor design, weather, current, and available space. An all-chain system may have different requirements from a combined rope-and-chain arrangement.

Why Is Anchor Scope Important?

When an anchor is properly embedded, a relatively horizontal pull helps it maintain holding power. If too little rode is deployed, the line pulls upward more sharply and may break the anchor free from the seabed.

Increasing scope can improve holding geometry, but it also increases the boat's potential swinging radius. Always consider nearby boats, underwater obstacles, water depth, and shore clearance before releasing additional rode.

How Do You Properly Set an Anchor for Maximum Holding Power?

Once the anchor rode is ready and the securing equipment has been checked, follow a controlled anchoring procedure. Proper setting is essential regardless of where the anchor line is attached.

Step-by-Step Boat Anchoring Procedure

1. Choose a safe anchorage. Check water depth, seabed type, weather, current, nearby vessels, and the available swinging area.
2. Prepare the anchor and rode. Confirm that the equipment is correctly connected and that the bitter end is secured to the boat.
3. Approach slowly. Position the bow into the prevailing wind or current and reduce forward speed.
4. Lower the anchor. Deploy it from the bow under control rather than throwing it overboard.
5. Pay out the rode. Allow the boat to move slowly backward while releasing the required rope or chain length.
6. Begin setting the anchor. Gradually take up tension so the anchor can orient and penetrate the seabed.
7. Apply controlled reverse power. Increase engine load progressively to verify that the anchor is holding.
8. Secure the rode. Transfer the anchoring load to the designated cleat, chain stopper, or snubber arrangement.
9. Check the boat's position. Use fixed visual references or navigation instruments to verify that the anchor is not dragging.

How Can You Tell If the Anchor Is Set Correctly?

A properly set anchor should resist controlled reverse power without allowing the boat to continue moving backward over the seabed.

Useful checks include:

• The anchor rode takes up tension without persistent backward movement.
• The boat remains in a consistent position relative to fixed landmarks after the anchor is loaded.
• GPS information or an anchor watch system shows no continued movement beyond normal swinging.
• The anchor remains secure when wind or current changes within the expected operating conditions.

A tight anchor rope or chain alone does not prove that the anchor is holding. The anchor may still be dragging along the seabed.

What Type of Anchor Is Best for Your Boat?

Although securing the anchor line correctly is essential, the anchor itself must also be suitable for the boat and seabed conditions. Different boat anchors use different shapes and penetration characteristics to develop holding power.

Choosing an Anchor for Sand, Mud, and Mixed Bottoms

• Sand: Danforth-style fluke anchors, modern scoop anchors, and suitable plow designs can provide strong holding when correctly set.
• Soft mud: Broad-fluke anchors such as Danforth and Fortress designs are often effective because they can penetrate deeply into suitable soft sediment.
• Firm mud and clay: Suitable scoop, fluke, or plow anchors can provide reliable holding depending on penetration and bottom consistency.
• Weed and grass: Some modern scoop and plow designs can penetrate vegetation more effectively, although heavy weed can prevent any anchor from setting.
• Rock: Holding may depend on mechanical engagement, and specialized anchors may be required. Rocky bottoms can also make anchors difficult to retrieve.

Lewmar CQR Anchors for General Cruising

The Lewmar CQR Anchor is a traditional plow-style marine anchor designed for cruising boats and yachts. Its hinged shank allows movement between the shank and plow section as the vessel changes direction at anchor.

CQR anchors are used in a range of seabed conditions, including suitable sand and mud bottoms. Their effectiveness depends on correct sizing, bottom penetration, scope, and setting technique. Like other anchor designs, they may be less effective where vegetation, rock, or unsuitable sediment prevents proper burial.

The anchor should be selected according to the vessel's dimensions, displacement, expected anchoring conditions, and the manufacturer's sizing recommendations.

How Does Boat Size Affect Anchor Selection?

Anchor size should not be determined by boat length alone. A suitable anchor must be selected with the following factors in mind:

• Boat length and displacement: Both influence the selection of appropriate anchoring equipment.
• Windage: High-sided motorboats and yachts with large exposed surfaces can experience substantial wind loads.
• Expected conditions: Overnight anchoring and exposed locations may require greater holding capacity than a short stop in sheltered water.
• Anchor design: Different anchors can provide different holding performance at similar weights.
• Deck equipment: The anchor must be compatible with the bow roller, windlass, chain, and securing fittings.

Use the manufacturer's sizing chart for the specific anchor model and select a suitable safety margin for the boat's intended operating conditions.

How to Monitor Your Boat and Prevent Anchor Dragging

Securing the anchor line correctly is only part of safe anchoring. Once the anchor is set, the boat must be monitored for unexpected movement, changing weather, or problems with the rode and attachment points.

How Do You Monitor Your Boat's Position Once Anchored?

Use two or more fixed shore references or a suitable GPS-based anchor watch system to monitor movement. Remember that a boat naturally swings around its anchor as the wind or current changes.

Check the following:

• The boat remains within the expected swinging radius.
• The anchor rode is not rubbing excessively against deck fittings or the hull.
• The bow cleat, chain stopper, and snubber or bridle remain correctly secured.
• Weather, current, and tidal changes do not compromise the anchorage.
• The boat maintains adequate clearance from other vessels, shorelines, and underwater hazards.

What Should You Do If Your Anchor Starts Dragging?

If the boat begins moving outside its normal swinging area, determine whether the anchor is dragging. Take immediate action if the vessel is moving toward another boat, shallow water, or a navigational hazard.

1. Maintain control of the boat. Start the engine if safe and maneuver to prevent collision or grounding.
2. Assess the anchoring conditions. Check wind, current, rode length, and the boat's position.
3. Recover the anchor when safe. Avoid allowing the anchor rode to become entangled with the propeller or other equipment.
4. Select a better anchoring position. Consider seabed type, water depth, nearby hazards, and available swinging space.
5. Lower and reset the anchor. Deploy the appropriate scope and verify the set with controlled reverse power.

Do not assume that an anchor will eventually hold if it continues dragging. If the bottom is unsuitable or the conditions are deteriorating, relocate to a safer anchorage.

Frequently Asked Questions About Securing an Anchor Line

Should You Tie an Anchor Line to the Bow or Stern?

For conventional recreational anchoring, secure the primary anchor line to a properly installed bow cleat or another designated strong point at the bow. Anchoring small boats directly from the stern can create a serious risk of swamping or capsizing.

Can You Tie an Anchor Rope Directly to a Cleat?

Yes, provided the cleat is correctly sized, securely installed, and suitable for the expected loads. A cleat hitch is commonly used to secure a rope anchor rode on small boats. Ensure the rope is protected from chafing and cannot accidentally release.

Can an Anchor Chain Be Secured Directly to a Windlass?

No. The windlass should not carry the continuous anchoring load. Use a properly installed chain stopper, snubber, bridle, or other designated strong point according to the manufacturer's instructions.

What Is the Best Knot for Securing an Anchor Line to a Cleat?

A properly made cleat hitch is commonly used to secure an anchor rope to a suitable bow cleat. The rope diameter and cleat size must be compatible, and the hitch should be checked before the anchoring system is loaded.

Why Is Nylon Rope Commonly Used for Anchor Lines?

Nylon offers useful elasticity and shock absorption. It can reduce sudden loads transmitted to deck fittings and the anchor when the boat moves in wind or waves. Its diameter, construction, and strength must be appropriate for the vessel and anchoring conditions.

Does the Anchor Line Need to Be Tight?

The anchor rode must be securely attached and able to maintain the required scope. It may become taut as the boat pulls against the anchor, but it should not be shortened merely to remove all slack. Excessively short scope can create an unfavorable pulling angle and reduce holding performance.

Final Thoughts: Where to Secure an Anchor Line on a Boat

When anchoring, secure the anchor line to a strong, properly installed bow cleat or another designated attachment point at the bow. This allows the boat to align more naturally with the wind and current while reducing the hazards associated with stern anchoring.

On smaller boats, the anchor rope is commonly secured with a cleat hitch. On larger yachts with windlasses and all-chain systems, the anchoring load should be transferred to a suitable chain stopper, snubber, bridle, or independent strong point rather than left on the windlass.

Safe anchoring also requires a suitable anchor, correct rode length, properly rated deck fittings, and verification that the anchor is securely set. Inspect the equipment regularly and monitor the vessel's position throughout the anchoring period.
