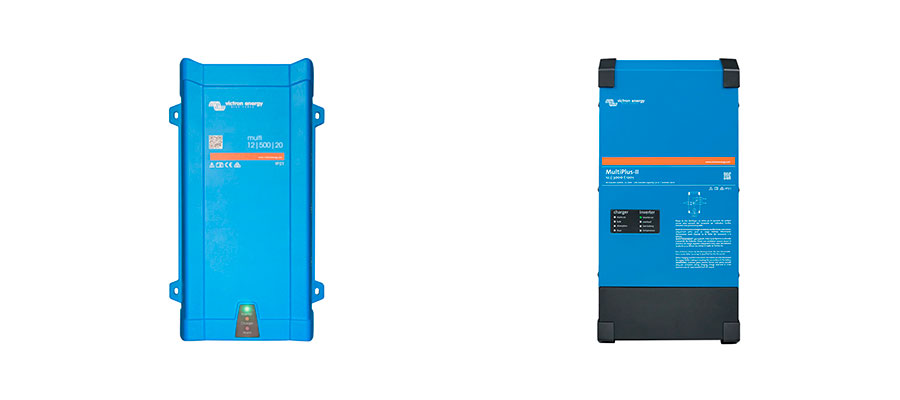

Victron Energy Multiplus vs Multiplus 2

What are the Key Differences Between Victron Multiplus and Multiplus II Inverters?

The Victron Multiplus and the Multiplus II are two of the most widely used Victron Energy inverter-chargers. Both are designed to supply alternating current (AC) to your electrical system while managing battery charging. The Multiplus II, also labeled as Multiplus-II, represents the updated version with enhancements for grid-connected and off-grid applications. It includes built-in anti-islanding detection for grid-tie setups, making it grid code compliant for residential energy storage systems (ESS). These upgrades highlight the core differences between the Multiplus models in terms of grid features and inverter intelligence.

Design and Technical Enhancements: From Multiplus to Multiplus II

The major design upgrade in the Multiplus-II includes an integrated anti-islanding relay and updated firmware. It supports external current sensors for more accurate load balancing and battery charging. It also improves compatibility with Pylontech batteries and newer ESS systems. The normal Multiplus, while still reliable, lacks this grid-interactive capability.

Power Output and Capacity Differences Between the Two

The Multiplus II typically comes in higher VA ratings, like the 3000VA, with enhanced thermal performance. It handles more demanding energy requirements and supports larger battery banks. The old Multiplus covers smaller loads and simpler setups, like RV or van build systems, where capacity and scalability are less critical.

Grid Code Compliance and Anti-Islanding Features

Because of its built-in anti-islanding capability, the Multiplus-II instantly disconnects from the grid whenever a power outage happens. This guarantees safe operation and aligns with regulatory standards in the majority of countries. It’s a must-have for grid-tied homes using renewable energy, especially when you want to provide backup electricity during blackouts.

How Do Power Specifications Compare in Multiplus vs Multiplus II Models?

The two models share many similarities but differ in system compatibility and energy handling. The Multiplus II is more suited for advanced systems that require refined control over grid power interaction. While both models support essential inverter tasks, the Multiplus II adds enhanced functionality for dynamic energy setups. Understanding these performance differences will help users identify the right model for their power infrastructure.

AC Output and Voltage Options (12V, 24V, 120V System Compatibility)

Both Victron inverters support 12V and 24V input options, as well as 120V AC output. The Multiplus II supports more advanced options like 2x120V split-phase for North America. It’s perfect for residential and marine applications requiring 120V systems.

Battery Charging Capabilities and Efficiency

The Multiplus II is more efficient in terms of battery charging, with intelligent algorithms that adjust based on load and power source. It can recharge your batteries from shore power, a generator, or solar panels via an external charge controller.

Maximum Load Handling in Different Modes

Whether operating in inverter mode, charger mode, or bypass, the Multiplus-II manages high load demands without overheating. Its PowerAssist and PowerControl features enable dynamic load management to prevent overload. It’s a better choice for systems with variable consumption.

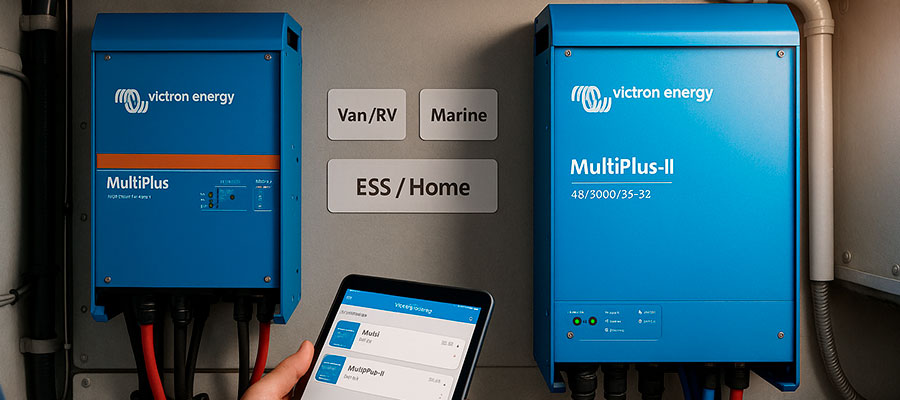

Which Victron Energy Inverter is Best for Different Installation Types?

Choosing between the Multiplus and Multiplus II depends on the installation's energy needs and space constraints. The Multiplus II is built for systems that must provide power in variable conditions, especially when interacting with grid power. The differences between the Multiplus options also come down to islanding capabilities and compliance with modern energy standards. Make sure to consider whether you need advanced features or basic inverter support.

RV and Mobile Installation Considerations

The old Multiplus is still ideal for smaller installations such as RVs, vans, and campers. It’s lightweight, cost-effective, and easy to integrate with smaller battery banks and inverters.

Residential Off-Grid Solar Power Systems

For remote homes, cabins, and off-grid properties, the Multiplus II excels. It handles larger loads, works well with solar energy systems, and can manage backup generators. It can link up with energy meters and the Cerbo GX to deliver complete system monitoring.

Shore Power and Marine Applications

In marine environments, where shore power and generator input vary, both models work. However, the Multiplus II supports better current balancing and more precise voltage settings. This ensures longer battery life and more stable energy flow.

Are Multiplus and Multiplus II Compatible with the Same Systems?

Despite the technical upgrades, both models maintain compatibility with core Victron system components. The Multiplus II expands on functionality, especially when islanding protection is required. Advanced features like PowerControl and PowerAssist allow more precise current management in smart systems. These extras give the Multiplus II a clear advantage in hybrid grid environments.

Compatibility with Existing Victron Components

Yes, both work well with Victron gear like Cerbo GX, Victron SmartShunt, MPPT controllers, and GX devices. You can swap one for the other in many systems depending on the need for grid compliance.

Integration with Renewable Energy Sources

The Multiplus-II integrates smoothly with solar power systems, wind turbines, and battery storage. It supports ESS modes for storing surplus energy and pushing it back to the grid when needed.

Parallel and 2x120V MultiGrid Configuration Options

You can run Multiplus II units in parallel to increase output or create a 2x120V system. Thanks to the MultiGrid firmware, these units meet stricter regulatory requirements while delivering high efficiency and supporting external current sensing.

How Does the Multiplus-II Compare to Other Victron Inverters like the Quattro?

Both inverters are reliable, but choosing between them depends on the depth of control and power management required. The Multiplus II is popular for both home and mobile setups, whereas the Quattro is better suited to more sophisticated systems. Understanding your energy use and whether you need multiple inputs or islanding protection is key. Each delivers solid performance, yet they’re tailored to meet different user requirements.

Multiplus-II vs Quattro for Advanced Power Needs

The choice between the Multiplus-II and Quattro essentially hinges on their available input options. Featuring dual AC inputs, the Quattro merges inverter, charger, and transfer-switch functions into a single unit. It offers superior flexibility for off-grid, marine, or industrial setups.

Cost-Benefit Analysis Between Models

The Multiplus II offers a cost-effective yet potent solution, while the Quattro’s higher price tag is justified by its added redundancy. It’s ideal for mission-critical systems where power supply reliability is vital.

Deciding Which Victron Inverter Matches Your Requirements

Choose the Multiplus-II for smarter energy storage, better grid interaction, and futureproof upgrades. Opt for Quattro if your system requires multiple inputs, grid disconnection logic, or frequent power source changes.

What Are Users Saying About the Upgrade from Multiplus to Multiplus II?

User feedback paints a clear picture. Many report better performance, smarter controls, and easier grid compliance after upgrading to the Multiplus II. The change is especially noticeable for those running hybrid energy systems or using energy storage setups tied to the grid. For off-grid users, improved load handling is the standout win.

Real-World Performance Reports from the Victron Power Forum

In the Victron Power Forum, users report improved charging and better thermal behavior in the Multiplus 2. Many highlight seamless transitions between grid and inverter, making it great for hybrid systems.

Installation Experiences and Common Issues

Most find the Multiplus II easier to integrate due to built-in relay and grid code support. One user noted, “It auto-syncs with VictronEnergy systems faster than the old unit.” Minor complaints include the larger case size and firmware learning curve.

Final Notes and Additional Considerations

• Thanks to its anti-islanding relay, the Multiplus II will automatically drop off the grid without any manual intervention.
• The Multiplus II integrates inverter, charging, and transfer-switch capabilities into one device.
• MP-II (short for Multiplus II) and MPII are commonly used abbreviations.
• Always consult the datasheets to compare specs like charging current, power factor, and system compatibility.
• Want Multiplus vs Multiplus-II clarity? Use the Victron comparison tool or check Victron Power Forum threads for real-world tests.

A comparison table
