Choosing a DC to DC charger boils down to one pivotal, non-negotiable question: isolated vs non-isolated. This decision is far more than a technical detail; it dictates the fundamental safety, reliability, and longevity of your entire electrical system. The difference between the two lies in their internal grounding architecture—a concept we will dissect in detail. One type of DC charger is engineered to create a complete electrical firewall between your start and service circuits, while the non isolated models build a bridge between them.
When looking at the Victron Orion series, you'll face the non-isolated vs isolated Orion-Tr debate. Understanding when you need isolated circuitry is paramount. This guide will move beyond surface-level definitions to explore the physics of grounding, corrosion, and electrical noise, guiding you to the right DC to DC converter. We will determine if an isolated victron product is mandatory for your application. The core issue is whether you can afford to have your starter and house battery
Isolated vs Non-Isolated DC-DC Chargers: Key Differences
The entire distinction hinges on the path of the negative current. To put it simply, an isolated charger provides two completely separate roads for the negative current to return to each battery, while a non-isolated one forces both batteries to share the same road. A key feature is the separate output neg while the non-isolated uses a common bus.
What Is an Isolated DC-DC Charger?
An isolated dc-dc charger provides full galvanic separation, creating what is essentially an air gap for electricity. Internally, a high-frequency transformer passes energy from the input to the output side via a magnetic field, not a physical wire. This means its input and output are electrically and physically disconnected; the input and output negative terminals have no continuity between them. This serves to isolate the two battery systems completely, as if they were on two separate islands with power being beamed between them.
How Does a Non-Isolated DC-DC Charger Work?
The design of a common-ground charger is simpler and more direct because the non-isolated uses a common negative. This means that the target batteries share a negative connection with the source battery through a shared ground point, typically the vehicle's metal frame. The non-isolated dc-dc charger assumes this shared path is robust and reliable. Both the input and output circuits are tied to the same negative reference point.
Main Differences Between Isolated and Non-Isolated Units
The crucial difference is that an isolated unit offers a complete electrical firewall. The common-ground non-isolated unit does not. The isolated version has its own dedicated neg, creating two distinct circuits. The non-isolated model uses a common negative return, merging the two circuits into one larger system. This distinction is the single most important factor in your decision.
When Do You Need an Isolated DC-DC Charger?
The theoretical debate over separated or common-ground battery chargers is settled by real-world applications where risk is not an option. The need to create an electrical break in a DC-DC component becomes a mandatory safety requirement in specific environments. An isolated DC-DC device is often the only correct and responsible choice.
Preventing Stray Current and Galvanic Corrosion
This is the number one reason you need an isolated device, especially in marine applications. A shared ground on a boat is a recipe for disaster. It creates a pathway for current flowing where it shouldn't, turning your vessel's hull and through-hulls into a slowly dissolving battery. This is stray current corrosion, an aggressive galvanic degradation that can compromise a vessel's structural integrity. The only way to prevent this is to create a complete electrical break between the engine's electrical system and the house system with an isolated one.
Applications Requiring Isolated Input and Output
Any system requiring absolute electrical separation between the source and load demands isolated input and output. This includes commercial vehicles with sensitive, calibrated electronics that can be disrupted by interference from the engine's electrical system. Ambulances, communication vans, and research vehicles must create a division for these delicate components. When in doubt, get an isolated one.
Why Marine (Fiberglass) and RV Systems Need Isolation
Even on a fiberglass boat, submerged metal parts like propellers, shafts, and through-hulls necessitate electrical separation to prevent corrosion. In RVs, using a separated charger ensures the house system is a truly independent power supply, often working alongside solar power. The isolated version provides this critical safety feature, ensuring a problem in one system cannot affect the other.
Non-Isolated DC-DC Chargers: Pros and Cons
While galvanic separation is critical in many cases, the nonisolated device has its place, and it's important to understand its specific advantages and its strict limitations. The non-isolated charger is often less expensive, slightly more efficient, and more compact, not by magic, but due to its design. By eliminating the heavy internal transformer needed for isolation, the unit is lighter, generates less heat, and has fewer components, which directly translates to a lower cost and higher peak efficiency. However, its use case is far more specific and brutally unforgiving of a poor installation. It operates on the absolute assumption that your vehicle's chassis is a perfect, low-resistance conductor—a pristine highway for electricity. Any rust, loose bolts, or paint at the connection points can turn that highway into a bottleneck, with potentially disastrous consequences.
How Non-Isolated Chargers Use a Common Negative
The design of a common-ground device is straightforward: it establishes a common negative. The return path for both the starting system and the auxiliary battery bank is the same—typically the vehicle chassis ground. This design is predicated on the assumption that the vehicle's chassis is a flawless, low-resistance conductor.
Limitations of Non-Isolated Victron Orion Chargers
The primary limitation of a non-isolated Victron product is that it absolutely cannot be used where a galvanic break is required. Using a non-isolated version in a marine environment is a major risk. The Victron Orion line makes this distinction clear in its product naming and documentation, separating the standard models from the Orion-Tr series.
When Can You Use a Non-Isolated Version?
You can safely use a common-ground model in many standard vehicle applications like vans or 4x4s. The key condition is that the starter and house battery circuits are both securely and permanently connected to a robust, clean, and rust-free common metal chassis. If your vehicle has a composite frame or you have any doubts about the quality of your grounding points, you must use an isolated charger.
Victron Orion Smart Chargers: Isolated vs Non-Isolated Models
The Dutch manufacturer offers robust, modern solutions in both categories, and understanding their specific product lines is key. The Orion-Tr Smart is the company's benchmark for applications where you absolutely must isolate the circuits; think of it as the electrical firewall. Its entire purpose is to provide that guaranteed galvanic break. On the other hand, the non-isolated Victron Orion XS represents the pinnacle of what a common-ground charger can be. It's not just a cheaper alternative; it's an engineering marvel of efficiency (up to 98.5%), with an extremely compact size and advanced features. The Orion XS is the superior choice only when your system's architecture is confirmed to be 100% compatible with and safe for a common-ground topology.

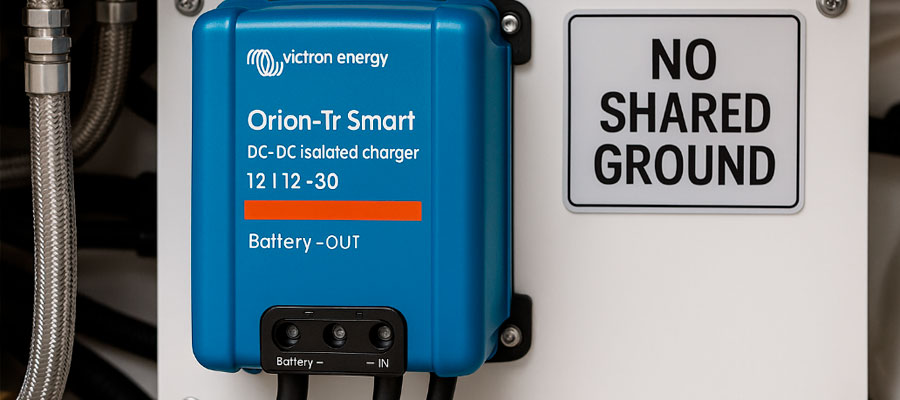

Victron Orion-TR Smart Isolated Charger Features
The Victron Energy Orion-Tr Smart is the premier choice when you must create a galvanic break. It is a true smart charger with a host of features:
- It provides full electrical separation, with a separate battery negative connection for each circuit.
- It allows for complete configuration via Bluetooth for different battery types, including lithium (LiFePO4).
- It has engine shutdown detection to protect the source battery.
The Orion-Tr Smart is a leading solution for demanding applications.
Non-Isolated Victron Orion XS: Best Use Cases
The new Orion XS is a modern and highly efficient common-ground device. It's perfect for standard vehicle systems that don't require a galvanic break. A 30 amp model can handle the needs of many auxiliary battery systems, and its novel design redefines efficiency for this type of converter.
Which One Should You Choose?
The choice of an isolated or non isolated device depends entirely on your system's architecture and your tolerance for risk.
| Feature | Separated Model |
Common-Ground Model
|
| Grounding | Separate Negative Paths |
Shared Negative Path
|
| Best For | Marine, RVs, Sensitive Electronics, Composite Chassis |
Standard vehicles with a proven, robust common chassis ground
|
| Safety | Highest level, prevents corrosion & ground path issues. |
Safe only with perfect, verifiable grounding.
|
| Wiring | Requires separate ground returns for each circuit. |
Uses a common negative return via the chassis.
|
| Verdict | When in doubt, you need an isolated charger. |
Simpler wiring, but with significant safety caveats.
|
Electrical Noise, Voltage Drop, and Safety Considerations
The choice of topology affects far more than just the charging process; it has profound impacts on your system's performance and safety. This isn't just about getting power from point A to B; it's about how cleanly and safely that power gets there. The grounding architecture is the foundation of your entire electrical system, and a weak foundation will compromise everything built on top of it.
Does Isolation Reduce Electrical Noise?
Yes. A major benefit is the ability to break "ground loops," which are a common source of electrical noise that manifests as an audible hum in audio components. This is a key reason to use a separated system if you have sensitive audio or communication equipment. It completely eliminates this interference path.
Voltage Drop in Isolated vs Non-Isolated Systems
Voltage drop is a function of cable size and length, not the device type. The same applies to the battery positive connection. An undersized cable will cause issues regardless. However, a poor ground on a common-return system can create a high-resistance path that mimics high voltage loss. The input voltage is only part of the equation; the quality of the return path is equally critical.
Safety Risks with Shared Negative Connections
The primary safety risk of a shared neg is an unintended current path. If the main ground for the house battery fails, the current will try to find another way back to the source, which could be through sensitive electronics, antenna cables, or other critical components, potentially destroying them. A separated charger completely prevents this risk, which is a compelling reason to use the isolated model.
Choosing the Right DC-DC Charger for Your Battery System
The final decision rests on a clear, honest, and technically sound assessment of your setup and your tolerance for risk. This isn't a choice you make based on price alone; it's a decision you make based on the fundamental design of your vehicle or vessel. To make the right call, you must answer a few key questions about your specific installation, because the consequences of choosing incorrectly can range from annoying electrical gremlins to catastrophic equipment failure.

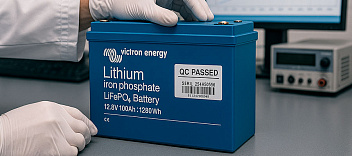

Lithium (LiFePO4) Batteries: Isolated or Non-Isolated?
The choice to use a separated model is independent of battery chemistry. A LiFePO4 house battery can be serviced by either type of device, as long as the system wiring is correct for the chosen hardware. The decision to isolate is about the vehicle/vessel, not the battery.
Starter Battery vs. House Battery Bank Setup
This is the central dilemma. If the source and target batteries share a robust common ground (chassis), a common-return charger is viable. If there's any doubt about the integrity of that shared path, or if the application is marine-based, you absolutely must use an isolated dc-dc.
Final Verdict: Which Victron DC-DC Charger Is Best for You?
While the common-ground device has its place, the isolated version is unequivocally the superior and safer choice for a wider range of applications. It eliminates the risk of catastrophic corrosion, prevents a host of grounding headaches, and provides peace of mind. The Orion-Tr Smart is the benchmark for this technology. For specific advice, the Victron community is an excellent resource, but the final word is this: you should use an isolated charger when safety and system integrity are paramount. Your power system depends on it.
