How to Reset Victron Solar Controller?

What is a Solar Charge Controller?

A solar charge controller is a vital guardian. It protects your battery bank. Its primary job is to manage charging safely. It charges batteries using raw power from panels.

Without this device, energy from solar arrays is unpredictable. This energy could damage batteries by overcharging.

Modern versions include MPPT solar controllers. They are incredibly sophisticated devices. They actively optimize energy harvest. They maximize energy stored, rain or shine.

How an MPPT Solar Controller Works

An MPPT charge controller is like a savvy negotiator for your PV panels. It constantly works to extract the maximum power they can produce. It does this by intelligently converting higher panel voltage into optimal charge current. This matches your battery voltage. It ensures you capture every possible watt-hour of energy.

• It constantly tracks the ideal operating point (MPPT) of your panels.
• It converts excess PV input voltage into more usable amperage for your battery terminals.

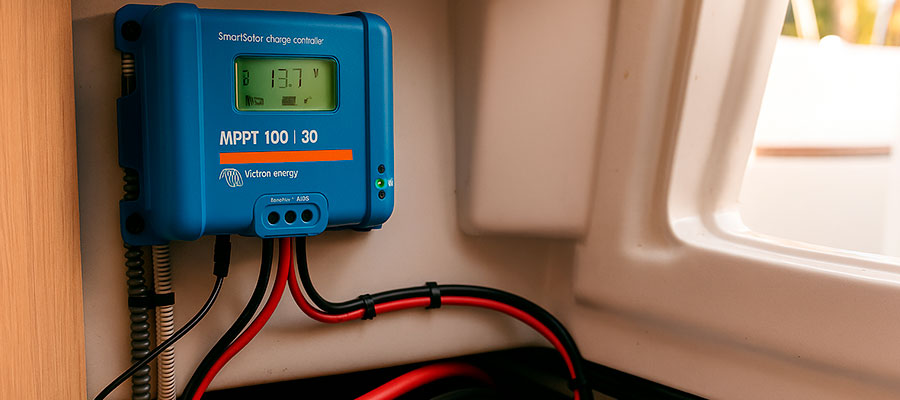

Victron Energy SmartSolar Features

Victron's SmartSolar line takes this smart technology even further. It packs user-friendly features accessible right from your phone. Through the VictronConnect app via Bluetooth, you gain deep insight and control. It turns complex data into simple, actionable information.

• Monitor real-time solar input and PV power.
• Perform a firmware update to add new features.
• Check the SOC (State of Charge) of your lithium or AGM batteries.
• Access advanced troubleshooting tools and settings.

Common Reasons to Reset a Victron MPPT

Sometimes your Victron MPPT controller may need a refresh. This resolves unexpected glitches or applies new settings. Whether it's after a firmware update or to fix irregularities in battery voltage readings, resetting can clear temporary faults. Many users find that performing a soft reset helps. It restores normal operation without losing custom configurations.

Troubleshooting Solar Panel Connection Issues

When your solar charge controller isn't detecting power from the PV array, it's often due to connection problems. Damaged wiring can also cause this. Start by inspecting the fuse and all battery terminals. Look for corrosion or loose contacts. These can disrupt the flow of PV input.

Using a multimeter to check the volt levels at the controller's terminal can help. It identifies if the solar input is within expected ranges.

Sometimes panels wired in parallel or series may cause unexpected voltage drops. This happens if they are not configured properly. Ensuring all connections are secure and consistent will often resolve most troubleshooting issues. You won't need a full reset.

Inverter and Battery Charging Problems

Issues with your inverter may occur. Inconsistent charging of your battery bank may also happen. These may indicate that the MPPT solar controller is not regulating the charge current correctly. This can be caused by outdated firmware. Incorrect battery settings can also cause this.

• Check the firmware version and perform a firmware update if available.
• Verify battery type settings, especially if using lithium battery or lifepo4.
• Inspect the dc to dc charger connections if applicable.
• Consider performing a soft reset before moving to more drastic measures.

When a Factory Reset is Necessary

A factory reset should be reserved for specific situations. Use it when persistent errors resist all other fixes. Also use it when you want to clear all custom settings to start fresh. Using the reset button or the VictronConnect app allows you to perform this action safely.

• Use a hard reset if instructed by Victron Energy support.
• Backup your settings before proceeding.
• After reset, reconfigure your system through the victronconnect app or victron app.
• Check all connections and run a full system test to confirm normal operation.

How to Perform a Soft Reset on a Victron Controller

A soft reset is your first and gentlest option. Use it when your solar charger starts acting up. It reboots the device's electronics without touching your personal settings. Think of it as giving your unit a quick power nap. It clears its head and shakes off any minor glitches. This process is completely reversible. It is the safest initial step in the reset process.

Steps for a Quick Controller Reset

Performing this reset is a straightforward process. You can often do it right from your phone. First, if your system is connected to shore power, ensure your one battery is still providing stable voltage to the unit.

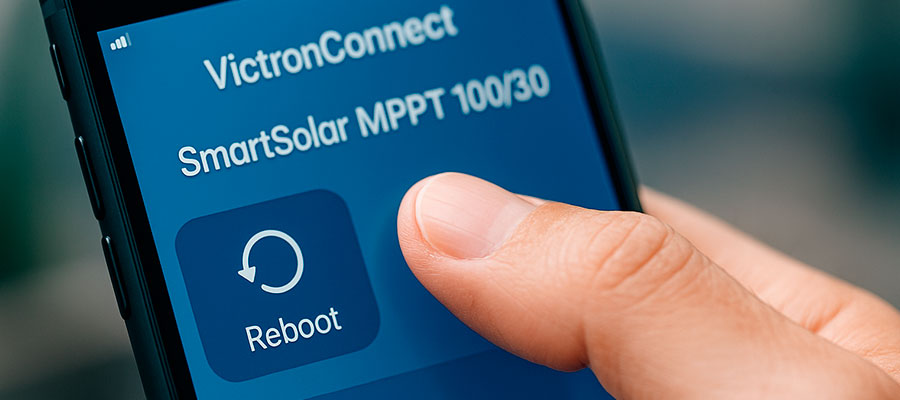

Open the Victron Connect app on your phone. Locate your device. Navigate to the settings menu. You'll find the reboot or restart option there.

Tapping this will initiate the soft reset. The controller's display will briefly go dark. Then it will cycle back on. This entire procedure takes just a moment. It is a fantastic first move. Do this before investigating more complex wiring or panels in parallel.

Using Victron Energy Tools for a Soft Reset

The VictronConnect app is your primary tool. It manages this process seamlessly. It puts control right at your fingertips. It provides a clean, intuitive interface. This guides you through the reset without needing to touch any physical components.

• Navigate to the 'Settings' or 'Device' menu for your specific controller.
• Select the option labeled 'Restart' or 'Reboot device'.
• Confirm the action and wait for the controller to cycle its power.

Limitations of a Soft Reset

It's important to understand that a soft reset is a troubleshooting step. It is not a cure-all for every possible problem your system might encounter. This type of reset will not resolve issues stemming from physical problems. Examples include a faulty connection from the controller to the battery. It also won't fix deeper internal errors.

• It will not erase or correct custom configuration settings.
• It cannot fix hardware failures or physical wiring faults.
• It does not address persistent errors that may require a firmware update.

Performing a Hard Reset on a Victron MPPT Solar Controller

A hard reset on your Victron MPPT solar controller is a more thorough way to restore the device. Use it when simpler fixes don't work. This process fully powers down the unit. It clears all temporary data. It forces the system to restart fresh. It's especially useful if your smart solar charger becomes unresponsive. It also helps if it behaves erratically. This is despite attempts to reset with softer methods.

When to Use a Hard Reset vs. Soft Reset

Step-by-Step Hard Reset Process

To perform a hard reset, first ensure your one battery is safely disconnected. This cuts power completely. Then, unplug any panels in parallel from the controller. This avoids backfeed. Wait about a minute before reconnecting everything.

• Disconnect the battery terminals carefully.
• Remove the solar input connections.
• Wait 30-60 seconds to allow the system to fully discharge.
• Reconnect the battery and controller to the battery wiring.
• Power the solar charger back on and verify normal operation.

Safety Precautions During a Hard Reset

Handling electrical components like your Victron MPPT requires caution. This prevents damage or injury. Always make sure the system is fully powered down. Avoid touching live terminals during the reset.

• Use insulated tools when disconnecting the 12v battery connections.
• Confirm no shore power or external power sources are connected.
• Follow manufacturer guidelines and consult the Victron community or support if unsure.
• Avoid forcing connectors to prevent damage to the smart solar unit.

Factory Reset for Victron SmartSolar MPPT Charge Controllers

A factory reset is the most definitive action you can take. It restores your unit to its original, out-of-the-box state. This process erases every custom setting you've ever programmed. It returns all parameters to their manufacturer defaults. It is the ultimate step for resolving persistent, unexplainable issues. It is also useful for preparing a used device for a fresh start in a new system.

Restoring Default Settings on a Solar Charge Controller

You might consider this comprehensive restoration when all other diagnostic steps have failed. The procedure is typically initiated through the dedicated device management application. It is not done by holding a physical button.

It's crucial to understand that this action will completely clear your battery type selection, voltage thresholds, and any other personalized configurations.

Because of this, it is highly recommended to note down your current settings. Alternatively, ensure you have a recent backup before proceeding. This ensures you can return your system to its optimal state without starting completely from scratch.

How a Factory Reset Affects System Configuration

This type of restoration wipes the slate completely clean. It removes any user-defined parameters that could be causing conflict. You will need to reconfigure the device as if it were brand new. This includes specifying your energy storage type and desired charging behavior.

• All custom charging algorithms and voltage setpoints are deleted.
• The unit will revert to generic, one-size-fits-all presets.
• You must manually re-enter your specific battery chemistry profile.
• Any previously installed software improvements will remain intact.

Reconnecting Solar Panels After a Factory Reset

Once the reset is complete and your unit is reconfigured. You can safely reconnect your renewable energy source. It is good practice to verify basic functionality and communication before re-energizing the entire array.

• Double-check all wiring connections at the unit's input points for security.
• Power up the system sequentially, starting with the storage unit.
• Use the management software to confirm the device recognizes the incoming power correctly.
• Monitor the system closely for the first few hours to ensure stable operation.

Troubleshooting After Resetting a Victron MPPT Solar Controller

Even after a successful reboot, your system might need extra attention. Gently guide your system back to full operation. Methodically check each component’s status and communication. This post-reset period is the perfect time to verify that everything is speaking the same language and functioning in harmony.

Ensuring Proper Solar Panel and Inverter Connections

Once the unit itself has been refreshed, the next critical step is ensuring all its physical conversations with other components are clear and strong. Carefully inspect the wiring from your energy source. Make sure each plug is secure and free of corrosion or damage.

Don’t forget to examine the links to your power conversion unit. A loose connection there can silently sabotage the entire system’s efficiency.

Taking these few moments for a visual and physical inspection can prevent hours of frustration. This avoids chasing a problem that doesn’t exist within the electronics themselves.

Checking Charge Controller Status and Performance

After reconnection, your primary task is to confirm the device is correctly interpreting its environment and executing its duties. Watch for clear signals. Ensure it is properly managing the flow of energy to your storage units.

• Confirm the display shows accurate voltage readings from the energy source.
• Verify that the active charging state is appropriate for your battery's current capacity.
• Ensure the recorded input power aligns with expected values for the weather conditions.
• Check that any history or log data has begun accumulating again normally.

Using Victron Energy Apps for Troubleshooting

Your smartphone becomes a powerful diagnostic tool when paired with the official application. It provides a clear window into the device’s soul. It shows not just what it’s doing, but why.

• Navigate to the device list and ensure your unit appears and connects without errors.
• Use the live data section to watch real-time performance metrics.
• Review the battery status menu to confirm the correct chemistry profile is active.
• Check for any alert messages or fault codes in the history log.
