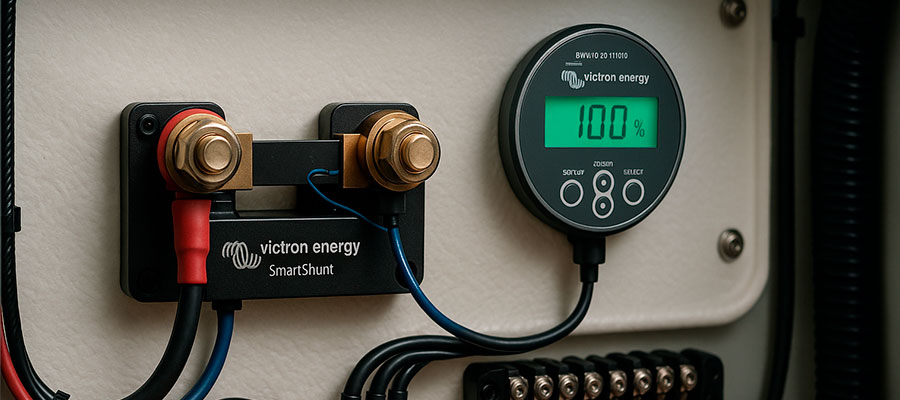

Let's get this straight. To reset a Victron monitor isn't just 'turning it off and on again.' It's a critical calibration required for the device to be accurate. An out-of-sync State of Charge (SOC) reading on your BMV-712 or a Victron Smartshunt makes it a worthless accessory. This guide provides the definitive, no-nonsense procedure for recalibrating your BMV, ensuring you can trust its readings absolutely.
The entire goal is to get the monitor's displayed percentage to perfectly match the actual energy level of your battery. This requires the system to meet specific voltage and current parameters before you sync. We'll cover how to perform a synchronise soc to 100 on the bmv 712 (and the 712 family, including the victron smart shunt) so that when it says the battery is at 100, it truly is. A proper calibration is non-negotiable for maximizing battery life.
Understanding Your Victron Battery Monitor
Your battery monitor is the fuel gauge for your battery bank. It doesn't guess the charge level based on voltage; it precisely counts every amp that flows in and out.

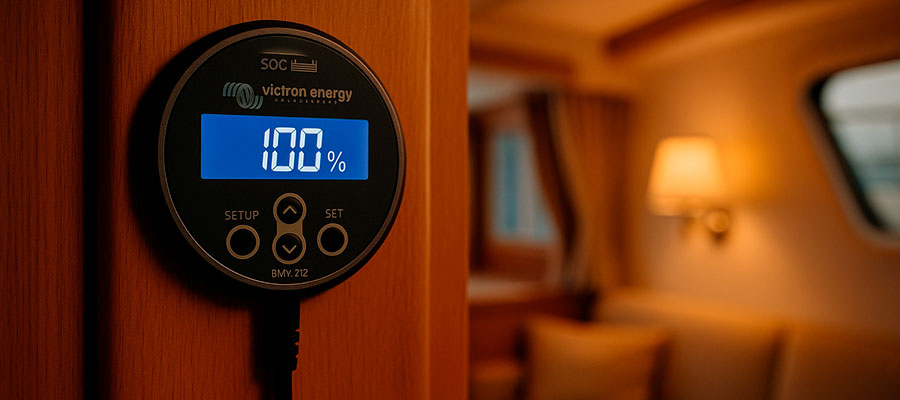

What Does the Victron BMV-712 Monitor?
A Victron unit monitors several key data points. It measures the voltage and current to calculate power. Most importantly, it acts as a coulomb counter. By tracking the amp-hours going in during a charge cycle and out during discharge, it provides a highly accurate state of charge value. This ensures the displayed battery soc is a true reflection of the energy available.
Key Terms: SOC (State of Charge) and Voltage
- SOC (State of Charge): This is the percentage of energy left in your power source. 100% means the bank is full, and 0% means it's empty.
- Voltage: This is the electrical pressure of the power source. While useful, relying on it alone to determine the charge level is extremely inaccurate for certain battery types.
Why Lithium Batteries Need Accurate Monitoring
Unlike lead acid batteries, whose voltage drops in a predictable line as they discharge, lithium power sources have a very flat voltage curve. An LFP battery might read a similar volt level at both 80% and 20% of its capacity. This makes a current-counting monitor essential for knowing the true state of charge. This also applies to other advanced chemistries like Battle Born batteries.
When Should You Reset Your Victron Battery Monitor?
Do not perform a sync randomly. It is a deliberate calibration step that should only be done at specific times to maintain accuracy.
Signs Your Monitor Needs Resetting (Incorrect SOC, Faulty Readings)
Your monitor will give you signs that it has drifted out of sync. The most obvious is a percentage reading that doesn't make sense. For example, if the value jumps from 40% to 100% the moment a charger is turned on, or if it reads 90% but your low-voltage cutoff is already triggering. These faulty readings mean a reset due.
After Replacing or Reconfiguring Lithium Batteries
Anytime you change the physical battery bank, a new calibration is mandatory. If you replace your old acid batteries with a new victron power system, you must not only perform a sync but also update the battery settings in the configuration menu, especially the battery capacity.
Post-Maintenance or System Upgrades
A synchronization is also necessary after any significant system maintenance. This includes adding a new charge source like a solar controller, installing a larger inverter, or changing any wiring. Any change that could alter the flow of current requires a full charge and a recalibration to ensure the monitor remains accurate.
Step-by-Step Guide to Resetting the BMV-712
The most common procedure is synchronizing the monitor when the power source is 100% charged. This manual action tells the device, "The power source is full, so set the state of charge to 100%."
How to Access the Reset Menu on the Victron Monitor
You have two primary ways to interact with your Victron Smart device:
- On the Head Unit: Use the physical buttons on the display to navigate through the menus.
- Via VictronConnect: The easiest method. Use the Victron Connect app on your phone to connect to the unit via Bluetooth.
Resetting SOC (State of Charge) to 100%
This is the standard sync procedure, the most common calibration you will perform. It's crucial to understand that the monitor is designed to do this automatically, but only when it is 100% certain the battery is full. To achieve this, it looks for a trifecta of conditions to be met simultaneously: the system voltage must rise to the "Charged Voltage" parameter, the charge current must drop below the "Tail Current" percentage, and both conditions must hold true for a specific "Charge Detection Time." This logic prevents a false sync from a temporary voltage spike.
You can also perform a manual sync through the app, but this should be done with caution. You should only force a manual synchronization when you are absolutely certain the battery has been fully saturated—meaning your battery chargers stop charging or have been in their "float" stage for a significant period after the bulk charge and absorption charge phases are complete.
Using the "Reset the PIN" Function for Calibration
Let's be perfectly clear: the option to "reset the PIN" is a security feature, not a calibration tool. It has absolutely zero effect on the monitor's accuracy, energy reading, or any other battery parameter. Its only function is to restore your access to the settings menu if you have forgotten your four-digit PIN code. To perform this reset, you will need the device's unique PUK code, which is printed on the product sticker—think of it as the device's birth certificate. This function restores access; it does not calibrate the device. The manual command to set to 100 is what performs the calibration.
Advanced Reset Options for Lithium Batteries
For lithium batteries, accuracy is paramount, and a simple occasional synchronization is only part of the story. True accuracy comes from programming the monitor's foundational settings—its digital DNA—to perfectly match your battery bank from day one. Simply performing a sync without getting these core parameters right is like having a perfectly zeroed rifle scope mounted on a crooked rail; the starting point is correct, but the aim will inevitably drift over time. Getting these advanced settings right is what separates a merely functional system from a precisely calibrated one, preventing the need for frequent manual resets in the first place.
Syncing the Monitor with New Lithium Battery Banks
When you install a new power source or change the size of your existing one, you must immediately tell the monitor about it. The single most important parameter to update is the battery capacity (measured in Amp-hours). The monitor's entire calculation is based on the formula (Amp-hours Consumed) / (Total Amp-hour Capacity). If you install a 400Ah bank but the monitor's capacity setting is still at 200Ah, the monitor will think the battery is dead when it's still at 50% capacity. Every single calculation it makes will be wrong. You must set the BMV to match your new bank's true capacity for the readings to have any meaning.
Adjusting Settings for Optimal Lithium Performance
To get the most accurate, drift-free readings over hundreds of cycles, you need to precisely configure several key parameters in the VictronConnect app to match your specific battery chemistry. These settings define what a "full battery" looks like to the monitor.
- Charged Voltage: This is the primary trigger for the monitor to start looking for a full state. You must set the charged voltage parameter to a level slightly below your charger's absorption or float voltage (e.g., 0.1V-0.2V below). This tells the monitor, "The battery is approaching full, start paying close attention to the current now."
- Tail Current: This is arguably the most critical setting for accuracy. It's expressed as a percentage of your battery's total capacity. It defines the "whisper of current" that a nearly full battery will accept. For LFP chemistry, this is typically a low value, around 1-2%. When the charge current drops below this threshold, the monitor knows the battery is saturated and can no longer accept a significant charge.
- Charge Efficiency Factor: This accounts for the energy lost as heat during charging. Not every amp pushed into a battery is available on the way out. For LFP batteries, this is extremely high, and you should set the charge efficiency to 99%. For lead-acid, this is much lower (often 85-95%), and using the wrong value is a primary cause of SOC drift over time.
Factory Reset vs. Partial Reset: Which to Choose?
- Partial Sync (Sync to 100): This is the standard procedure. It only changes the displayed percentage value, leaving all your other settings intact. This action tells the monitor to 100.
- Factory Reset: You should only use the monitor to reset to factory defaults if your settings have become corrupted or you are starting fresh with a completely different battery type. This will wipe all your custom configurations and bring the unit back to 100 default parameters.
Troubleshooting Reset Issues
Sometimes, the process doesn't go as planned. Here are some common hangups.
| Problem | Possible Cause | Solution |
| SOC won't sync. | The monitor's "charged" parameters are not being met. The system voltage is too low or the tail current is too high. | Verify your charging system is working correctly. Check the charged voltage setting and tail current parameters in the BMV and ensure they align with your charger's output. |
| The monitor reads 0%. | Incorrect wiring. All loads and charge sources must be connected to the battery on the "system" side of the shunt. | Check all connections to the shunt. Only the negative battery terminal should be on the "battery only" side. |
| Cannot connect via Bluetooth. | The device is out of range, or the PIN is incorrect. | Move closer to your monitor. Use the PUK code printed on the device if you've lost the PIN. |
Why Won’t My Victron Battery Monitor Reset?
The number one reason a monitor won't sync to 100 is that the battery isn't actually full according to the parameters you've configured. The specified charge voltage must be reached, and the current flowing into the battery must drop below the tail current threshold for a specific charge detection time. A sync won't happen unless the charged voltage is set correctly and those conditions are met.
Fixing Common Errors During the Reset Process
If a synchronization fails, do not just keep trying. First, charge the battery completely. Verify with a multimeter that the voltage of the battery at the terminals matches what the device is reporting. If it doesn't, you may have a wiring issue.
When to Contact Victron Energy Support
If you have followed all the steps, checked your wiring, and consulted the manual, and you still can't get your monitor to calibrate, it's time to reach out to your distributor or Victron Energy support.
Maintaining Your Victron Battery Monitor Post-Reset
A recalibration gets you back to a known good state. Proper maintenance keeps you there.
Calibrating for Accurate Long-Term SOC Readings
Your monitor should be synchronized every few weeks, or whenever you know the bank is 100% full. This should be done soon as the battery reaches a float state. This regular calibration corrects any small tracking errors that may have accumulated over many cycles.
Best Practices for Lithium Battery Monitoring
Trust the percentage from your bmv-712 smart battery monitor, not just the battery voltage. For a 12V system, configure the absorption voltage correctly in your charging sources, and make sure the monitor's voltage setting aligns. This ensures the battery starts synchronized and stays that way.
Integrating with Other Victron Energy Products
The power of a Victron system is its integration. The data from the victron battery monitor is broadcast via a GX device. This allows a charge controller to adjust its charge rate or a system to automatically start a generator, all based on the accurate data provided by your perfectly calibrated device.
