How to Read a Marine Compass?

What Is a Marine Compass and Why Does It Stay True on a Rolling Deck?

A ship’s compass is a purpose-built instrument, far tougher and more sophisticated than the pocket model used on shore. At its core is a small magnetic element that constantly pivots to match Earth’s field, but the housing around that element is what makes it dependable at sea. The card sits on a friction-free jewel bearing, bathed in a clear oil that cushions sudden lurches, while a bold lubber mark shows the exact direction of the bow. Together these features keep the heading rock-solid even as the boat pitches, yaws, and vibrates—giving the helm a steady reference when every wave tries to knock the needle off course.

Understanding the Magnetic Compass Basics

• Magnetic core – A set of miniature permanent magnets is bonded to the lightweight compass card. This pack responds to Earth’s field and turns the dial so its zero mark always settles on magnetic north.
• Precision pivot – The card is balanced on a needle-sharp point and jewel bearing with almost no friction, allowing it to swing quickly and smoothly without sticking.
• Stabilising liquid – The bowl is filled with clear damping fluid (usually light oil or an alcohol mix) that cushions the card, preventing wild oscillations when the vessel pitches or rolls.
• Natural alignment – Because our planet behaves like a huge bar magnet, the magnets on the card twist until they sit parallel with Earth’s magnetic flux lines, giving the helmsman a constant, trustworthy heading reference.

Types of Marine Compasses for Different Boats

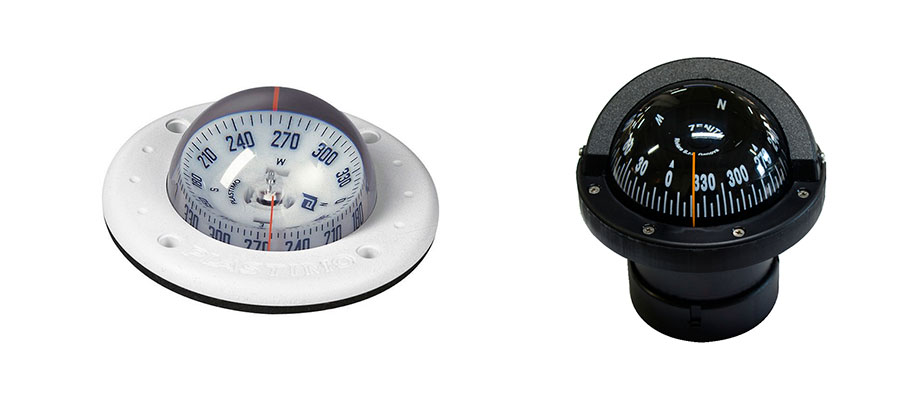

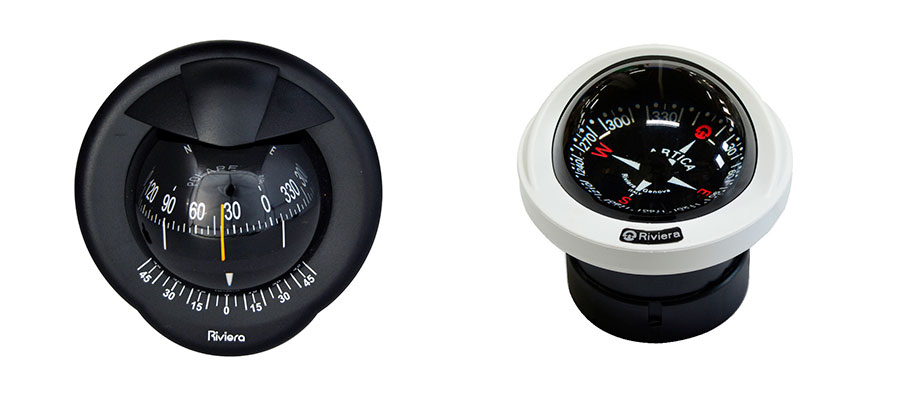

1. Helm (steering) compass – Installed front-and-center at the wheel. Top makers (e.g., Ritchie) hang the bowl in a gimbal cradle so it stays level while the boat pitches and rolls, giving the helmsman a rock-steady heading for hand steering in any sea state.
2. Hand-bearing compass – A pocket-size sighting model used to shoot bearings on buoys, lighthouses, or other vessels. By lining up the peep-sight with a target, the navigator records its magnetic angle and plots an accurate fix when GPS is down or paper-chart work is required.
3. Electronic (fluxgate) compass – Uses solid-state sensors instead of a spinning magnet. It feeds digital heading data to plotters, autopilots, and MFDs, tightening course-keeping and waypoint accuracy. Even so, mariners still keep a classic magnetic compass ready as a no-power backup.

How Earth’s Magnetism Skews a Ship’s Compass

• Declination (variation) – True North on a chart and magnetic north on your compass are seldom the same point. The angle between them—called declination—changes with geography and drifts over the years. Check the figure printed inside the chart’s compass rose and add or subtract that number to steer the correct course.
• Dip (inclination) – Magnetic field lines don’t run flat; they plunge toward the poles. This downward pull makes an un-balanced card tilt. Compass makers counterweight the card for specific latitude zones, so a dial built for the Northern Hemisphere will read poorly if carried south of the equator, and vice-versa.

How to Properly Read a Boat Compass?

Steering with a magnetic compass really boils down to two pieces: the rotating dial that forever swings toward magnetic north, and the stationary lubber line etched in line with the bow. The bearing that meets that fixed mark is your course; keep that number centred, and you’ll hold a true heading no matter the sea state.

Interpreting the Compass Card and Lubber Line

• Compass card – The inner dial is graduated 000°–360° and labelled with the four cardinal directions (000 = N, 090 = E, 180 = S, 270 = W). Because the dial is magnetised, its zero mark swings until it settles on magnetic north, giving you a constant directional baseline.
• Lubber line – Etched into the bowl and aligned with the vessel’s centreline, this fixed reference mark shows where the bow is pointing. Read the number on the spinning card that sits directly beneath the line and you have your present heading.

Understanding Compass Headings and Bearings

In practice, heading and bearing describe two different angles. Heading is the exact course the bow is pointing at that moment; you read it where the compass dial meets the lubber line. Bearing, on the other hand, is the angle from your position to an outside reference—perhaps a beacon, buoy, or another vessel—taken with a hand-bearing compass. Plotting those bearings on the chart lets you pinpoint your location and steer clear of dangers.

Common Mistakes When Reading a Boat's Compass

• Eye-level sighting — Look straight down the lubber line; viewing from the side introduces parallax and skews the heading.
• Scale awareness — Learn how many degrees each small hash mark equals on your dial (1, 2, or 5); guessing can put you a few degrees off course.
• Apply corrections — The figure on the dial is magnetic; add or subtract local variation and boat-specific deviation to get a true course.
• Watch the reciprocal — Read the number under the lubber line, not the one 180° opposite, or you’ll steer the wrong direction entirely.

What Causes Compass Deviation and How to Account for It?

Compass deviation is the compass error your own vessel manufactures. Engine blocks, stainless rails, battery cables, even a laptop at the nav desk leak stray magnetism that tugs the card off line. Because every hull carries a different mix of metal and wiring, each one produces a unique error pattern. The skipper must swing the compass, map those offsets into a deviation card, and apply the corrections to every heading to stay truly on course.

Magnetic Variation vs. Compass Deviation Explained

• Magnetic variation – The angle separating true north on the globe from magnetic north on your compass. Because Earth’s field is uneven, the size of that angle shifts from region to region. Sailors read the local value in the compass rose printed on every chart and use it to correct their courses.
• Compass deviation – A heading error created by the vessel itself. Engines, rigging, wiring, and electronics generate stray magnetic fields that push the needle off line. The amount of error changes with the boat’s heading, so each craft is “swung” and its individual corrections are entered on a deviation card that must be consulted whenever a precise course is required.

Using a Deviation Card for Accurate Navigation

A deviation card is a vessel-specific table compiled after a technician “swings” the compass to measure how the hull’s magnetism skews each heading. Find the row that matches your planned course, note the degrees of error, and offset the compass by that amount so the boat tracks the exact bearing you want.

How to Check for Compass Error Before Setting Course

• Choose a charted transit—two fixed marks that form a straight line, such as a pair of beacons or channel posts.
• Steer until those marks sit exactly in line off the bow.
• Note the heading shown on the steering compass.
• Look up the magnetic bearing of that transit on the chart and compare it to the compass reading.
• The difference between the two figures is the compass deviation for that heading.

How to Take a Bearing Using a Marine Compass?

Taking a bearing means figuring out the exact angle between your vessel and a distant target—be it a lighthouse, buoy, or another ship. Plotting that angle on the chart lets you mark your position and dodge potential dangers. Although the helm compass can give a ball-park figure, real precision comes from a hand-bearing compass equipped with a sighting device and prism, purpose-built for this task.

Step-by-Step Guide to Taking Accurate Compass Bearings

1. Pick a charted landmark you can clearly identify—perhaps a lighthouse, channel buoy, or water tower.
2. Hold the hand-bearing compass level at eye height, keeping your arm steady.
3. Sight through the peep or align the bearing markers so the target sits dead-centre.
4. Read the number where the dial stops; that magnetic bearing is the exact line from your boat to the chosen object.

Using Landmarks and Lighthouses for Navigation

• Plotting a fix – Take magnetic bearings to two (or more) separate charted objects—say a lighthouse and a radio mast. Convert them to lines on the chart; your position lies at the intersection of those lines.
• Using a danger bearing – Shoot a single bearing to a known hazard such as a reef. Draw that line on the chart and remain on the safe side of it; as long as the bearing stays greater (or lesser) than the marked value, the boat will miss the danger zone.

Converting Magnetic Bearings to True North Readings

Convert a magnetic bearing to a true one before plotting it on the chart. Check the variation shown in the chart’s compass rose: add the value if it is labelled “East,” subtract if it is “West.” The corrected figure is the true bearing you draw on the chart for an exact line of position.

How to Navigate Using a Compass and Nautical Chart?

Pure navigation blends two timeless skills: reading the compass and turning those numbers into lines on a chart. By linking heading data to plotted courses, you can pinpoint direction, sketch your track across the paper, and verify that the vessel is holding exactly the course you planned.

Plotting Your Course on a Nautical Chart

Place a point on the chart for your departure, another for your destination, and draw a straight track connecting them. Slide a pair of parallel rules to carry that track across to the nearest compass rose. The angle where the line meets the rose’s outer scale is your true course in degrees.

Navigational Techniques When Visibility is Poor

• Dead-reckoning track – Begin at your last plotted fix, then project your position forward by multiplying vessel speed by time under way and laying that distance along the compass heading. Add corrections for sideways set (leeway) and current drift to refine the estimated spot.
• Riding the depth contour – Watch the echo-sounder and keep the reading matched to a chosen depth line on the chart. By following that submerged “road,” you can hug a safe water corridor along the coast or slip through shoal areas without touching bottom.

What Should You Do When Your Compass Isn't Working?

• Identify the fault fast – Check whether the dial is jammed, an air bubble clouds the bowl, or the numbers jump around randomly.
• Respond immediately – Free the card or vent the bubble if possible; otherwise switch to backup tools such as a hand-bearing compass, electronic heading source, or visual ranges to stay on course.

Troubleshooting Common Compass Problems

• Big air pocket in the bowl – A leaking seal has let fluid escape; only a specialist can reseal, refill, and swing the compass to restore accuracy.
• Dial won’t turn freely – A worn pivot or damaged jewel is binding the card; send the unit to a service shop for a complete rebuild.
• Wild heading swings – Before condemning the compass, clear the helm of magnetic clutter—phones, stainless tools, speakers—which can twist the needle off course.

Emergency Navigation Without a Compass

If your compass is out of action, remember that nature and electronics can still guide you: at dawn the sun rises roughly in the east, swings due south at local noon in northern latitudes, and sinks toward the west at dusk; after sunset, find Polaris—the steadfast North Star—to steady your course toward true north; and whenever power is available, fire up a chart-plotter, handheld GPS, or even a navigation app on a charged phone to obtain an instant heading and position fix.
