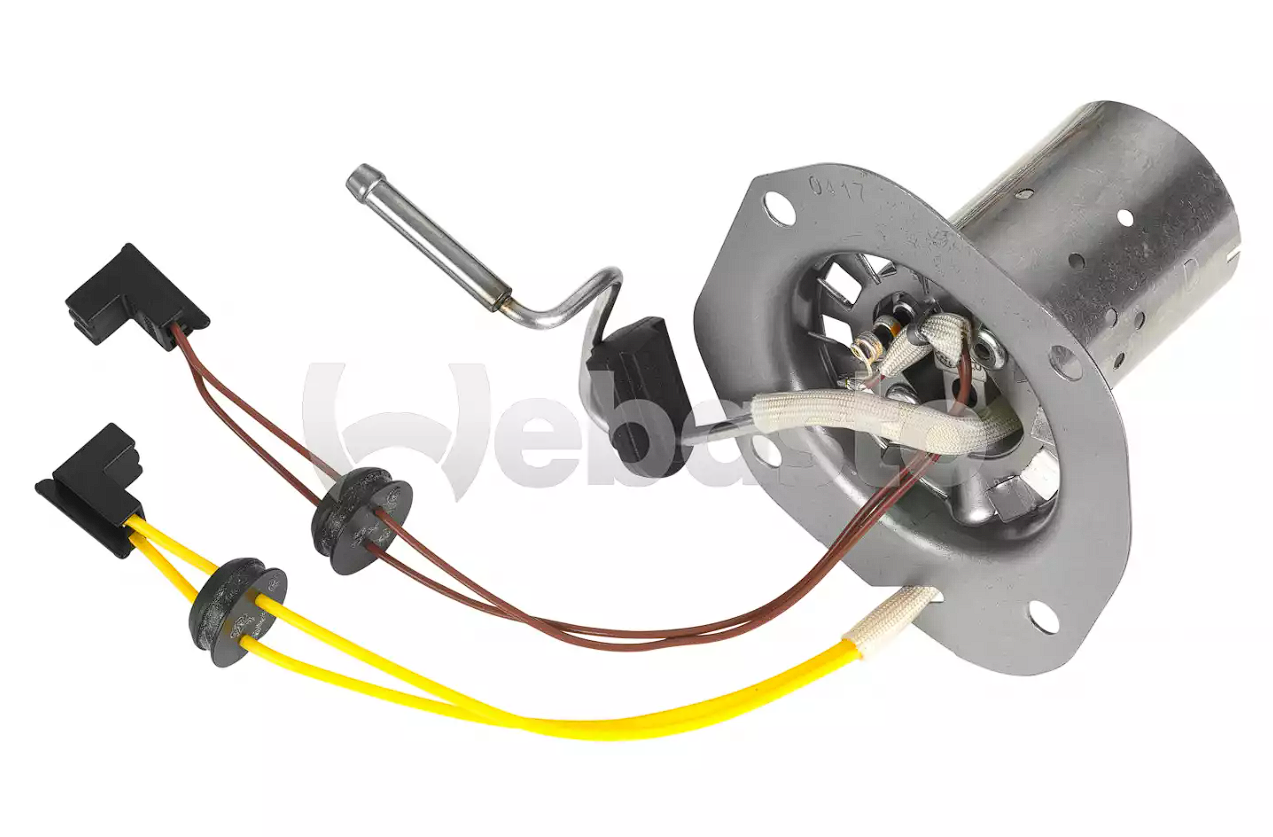

Webasto 65788C - Burner AT2000 24V (Diesel) Assembly

Article Webasto 65788C FL

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Webasto 65788C Burner AT2000 24V (Diesel) Assembly is a reliable heating component essential for various applications. It includes a glow plug (82307B) and a flame sensor (82306B), both crucial for efficient operation. Testing of these components should be conducted with a current of less than 5 mA using a standard multimeter, with specific resistance values for the flame sensor ranging from 2.6-3.4 ohms at 25°C to 12-15 ohms at 800-1000°C, and for the glow plug ranging from 1.3-1.44 ohms at 25°C. It's important to perform these tests with the components disconnected from the control unit. Additionally, during maintenance or repair, ensure to replace the necessary one-time gaskets, including 82302A, 1322638A, 1303517A, and 1322586A, to maintain optimal performance and safety.

Description
Ask a Question

Webasto 65788C - Burner AT2000 24V (Diesel) Assembly

The Webasto 65788C Burner AT2000 24V (Diesel) Assembly is a high-quality heating component designed for various applications. It comes equipped with the following components:
- Glow plug: 82307B
- Flame sensor: 82306B
Key specifications and instructions for checking the components:
- Flame sensor and glow plug should be tested with a current of less than 5 mA using a standard multimeter.
- Flame sensor resistance at 25°C: 2.6-3.4 ohms, at 800-1000°C: 12-15 ohms.
- Glow plug resistance at 25°C: 1.3-1.44 ohms.
- Testing should be performed with components disconnected from the control unit.
During maintenance or repair, it is necessary to replace the following one-time gaskets: 82302A, 1322638A, 1303517A, 1322586A.
