Vetus VD4120---B - Engine Deutz 4 cyl 120hp 12V/160A/2P without Gearbox

Vetus VD4120---B - Engine Deutz 4 cyl 120hp 12V/160A/1P without Gearbox

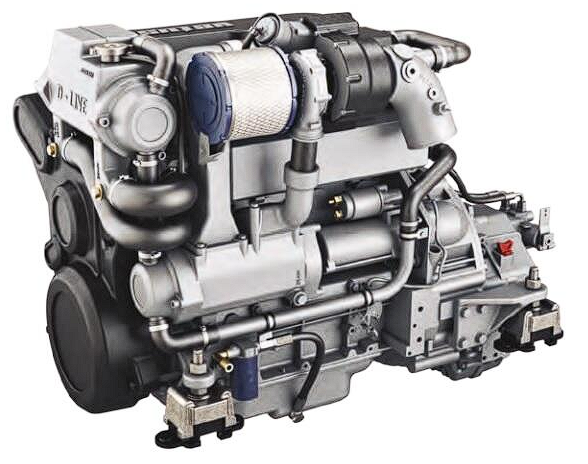

The Vetus VD4120---B is a powerful and reliable 4-cylinder common-rail diesel engine designed for marine applications. It delivers smooth operation, high torque, and low revolutions, making it an ideal choice for demanding environments. The engine is compliant with RCD2 emission regulations and is well-suited for powering hydraulic systems on board. Featuring a CAN bus system with an SAEJ1939 protocol, it is also compatible with NMEA2000 systems.

This engine comes equipped with an MPA34BS2 instrument panel and four flexible LMX140 engine mountings. The innovative VETUS water-cooled top cover helps reduce engine noise and heat in the engine room while also functioning as a sturdy step. Additional enhancements include a compact air filter for space optimization, new exhaust manifold insulation, a standard 160A high-output alternator, and the option for a second alternator (which removes the front belt cover). An electric sump pump is fitted as standard for added convenience.

Key Features:

• 4-cylinder common-rail diesel engine for smooth and efficient operation
• High torque output of 449 Nm at 1600 rpm
• Compliant with RCD2 emission regulations for environmental sustainability
• Integrated CAN bus system (SAEJ1939) with NMEA2000 compatibility
• Innovative water-cooled top cover reduces heat and noise
• Compact air filter design saves space in the engine room
• High-output 160A alternator as standard
• Optional second alternator available (removes front belt cover)
• Electric sump pump included for easy maintenance
• Supplied with MPA34BS2 instrument panel and four LMX140 flexible mountings

Specifications:

• Engine Model: Vetus VD4120---B
• Engine Type: Common-rail diesel
• Number of Cylinders: 4
• Maximum Power Output: 120 hp (90 kW)
• Maximum Torque: 449 Nm @ 1600 rpm
• Maximum Speed: 2400 RPM
• Fuel System: Common-rail direct injection
• Cooling System: Water-cooled
• Alternator Output: 160A
• Optional Second Alternator: Yes (removes front belt cover)
• Electric Sump Pump: Standard
• Mounting Type: LMX140 flexible mountings
• Emission Compliance: RCD2
• Control System: CAN bus (SAEJ1939), NMEA2000 compatible
• Saildrive Compatibility: No

Compatibility and Application:

The Vetus VD4120---B is engineered for marine applications requiring a robust, low-revving, and high-torque engine. It is particularly suitable for hydraulic power systems and propulsion in boats and yachts. The engine’s integration with CAN bus and NMEA2000 systems ensures seamless communication with modern onboard electronics, making it an excellent choice for vessels requiring advanced connectivity and control.

Benefits:

• Highly reliable and durable for demanding marine conditions
• Designed for smooth and quiet operation with low vibrations
• Reduces engine room heat and noise with an innovative water-cooled top cover
• Compatible with modern vessel control systems (SAEJ1939, NMEA2000)
• Standard 160A alternator for high electrical output
• Flexible mounting system for easy installation
• Electric sump pump for convenient oil management
• Compact design allows for space-saving installation
• RCD2 emission compliance for environmentally friendly operation
• Optional second alternator for increased power generation
