Vetus STM9028 - Diesel filter P4.21/23/25, also M3.10/4.14

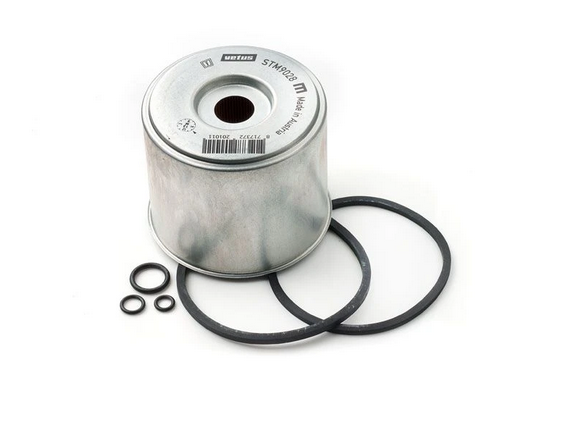

Vetus STM9028 - Fuel Filter Type CAV P4.21/23/25

The Vetus STM9028 Fuel Filter Type CAV is specifically designed for P4.21/23/25 engines, and is also compatible with M3.10/4.14 engines. This high-performance diesel fuel filter ensures clean fuel delivery to the engine, enhancing engine efficiency and longevity. By efficiently filtering out contaminants such as dirt, water, and particulates, the STM9028 protects vital engine components and reduces the risk of engine damage. Built for demanding marine, RV, and industrial applications, the filter is lightweight, compact, and easy to install, offering consistent fuel flow and high reliability in harsh environments.

Key Features:

• Compatible with P4.21/23/25 and M3.10/4.14 engines for reliable filtration
• Filters diesel fuel to ensure optimal engine performance and protection
• Prevents dirt, water, and other contaminants from damaging engine components
• Compact dimensions (80 mm x 90 mm x 90 mm) for easy installation in tight spaces
• Lightweight design (0.20 kg) for easy handling and replacement
• Durable construction for reliable operation in marine, RV, and industrial environments
• Helps maintain engine longevity by providing consistent, high-quality fuel filtration
• See-through body allows for easy inspection of filter condition

Specifications:

• Engine Compatibility: P4.21/23/25, M3.10/4.14
• Filter Type: Diesel Fuel Filter (CAV P4.21/23/25)
• Filter Material: High-quality synthetic fibers with excellent filtration capacity
• Dimensions (hxwxd): 80 mm x 90 mm x 90 mm
• Net Weight: 0.20 kg
• Maximum Fuel Flow Rate: 100 liters per hour (L/h)
• Maximum Operating Pressure: 6 bar (88 psi)
• Operating Temperature Range: -20°C to 120°C (-4°F to 248°F)
• Max. Filtration Efficiency: 99.8% for particles down to 10 microns
• Mounting Options: Vertical and horizontal mounting for flexible installation
• Color: Black transparent body for easy filter inspection
• Filter Surface Area: 230 cm² for effective contaminant capture
• Fuel Compatibility: Suitable for use with diesel fuel and biodiesel blends up to B20
• Filter Service Life: Typically lasts up to 500 operating hours, depending on fuel quality
• Flow Resistance: < 0.2 bar (2.9 psi) at 100 L/h flow rate
• Housing Material: Reinforced plastic for enhanced durability and resistance to corrosion

Benefits:

• Ensures high-quality filtration, preventing fuel contaminants from damaging critical engine components
• Compact, lightweight design makes it easy to install, replace, and maintain
• Durable synthetic filter material captures particulates as small as 10 microns for optimal filtration
• Maximizes engine performance and reduces wear by maintaining clean fuel delivery
• See-through filter body allows easy visual inspection, reducing downtime and maintenance costs
• High filtration efficiency of 99.8% extends engine life by preventing clogging and corrosion
• Works with biodiesel blends up to B20, providing flexibility in fuel choice
• Reliable performance in demanding environments, such as marine, RV, and industrial applications
• Reduces maintenance intervals by providing excellent contaminant protection
• Cost-effective solution for maintaining engine fuel systems in optimal condition
