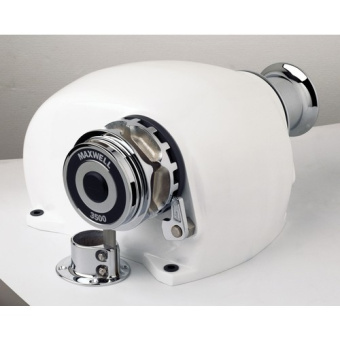

Vetus P13089 - Maxwell 3500 HWC, 12V, 1200 W, DCW: 8-13 mm chain, sprocket 3182/XXX

Article Vetus.P13089

€ 9.286,65

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Vetus P13089 - 3500 HWC is a high-performance horizontal windlass designed for the automatic handling of chain-only anchor rodes. With a 12V DCW motor delivering 1200W power, this windlass is well-suited for 8-13 mm chains, featuring a sprocket 3182/XXX for optimal functionality. It boasts fully automatic chainring operation in one or two directions, allowing seamless use with chain-only anchor rods. The windlass provides functional front and rear rope pulling with an independent, knurled stainless steel warp drum equipped with a sprocket clutch for precise control of all ropes. Additionally, it offers the option for dual-anchor handling with smooth independent control of each sprocket supplied via cone couplers. The cone-shaped clutch/brake mechanism ensures manual anchoring in 'free fall' with smooth and precise operator control. Installation is simplified with a deck-mounted design, and maintenance is made easy by allowing the removal of the landing gear (sprocket and drum) without disturbing the windlass attachment. The windlass is further characterized by its robust two-way motor developed for ship winches, high-quality chrome-plated chain ring and warping drum over marine bronze, and a seawater-resistant alloy housing with a durable white two-component polyurethane paint finish. Ideal for marine enthusiasts seeking a powerful and reliable horizontal windlass solution.

Description
Ask a Question

Vetus P13089 - 3500 HWC, 12V, 1200W, DCW: 8-13 mm Chain, Sprocket 3182/XXX

The Vetus P13089 - 3500 HWC is a powerful and efficient horizontal windlass designed for automatic handling of chain-only anchor rodes. With a 12V DCW motor and 1200W power, this windlass is equipped to handle 8-13 mm chains, featuring a sprocket 3182/XXX for optimal operation.

Features and Benefits:
- Fully automatic chainring operation in one or two directions, suitable for use with chain-only anchor rods
- Functional front and rear rope pulling with an independent, knurled, snag-free stainless steel warp drum with sprocket clutch disengagement for precise control of all ropes
- Optional dual-anchor handling with smooth independent control of each sprocket supplied via cone couplers
- Chain tube assembly
- Cone-shaped clutch/brake mechanism allows for manual anchoring in 'free fall', ensuring safe and precise operator control
- Sprocket pawl to assist with independent warping drum use
- Simple, deck-mounted installation with no below-deck parts
- Simplified maintenance, allowing the landing gear (sprocket and drum) to be removed from the windlass without disturbing the windlass attachment
- Robust two-way motor developed for ship winches
- Chain ring and warping drum are high-quality chrome-plated over marine bronze
- Seawater-resistant alloy housing, pre-treated, powder-coated, and finished with a white two-component polyurethane paint
