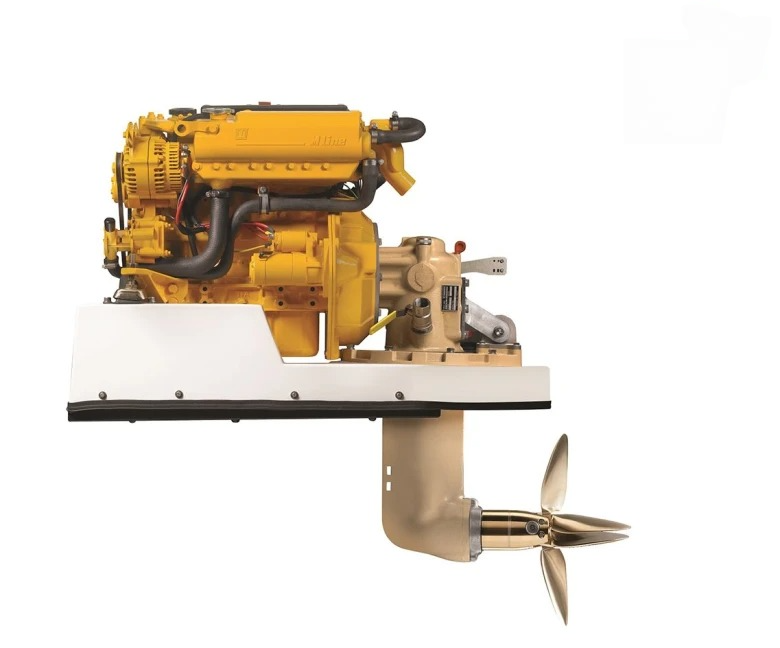

Vetus M213S-A_STM5801 - Mitsubishi M2.13 with SD10 Saildrive i=2.49

Vetus M213S---A - Mitsubishi 12 HP M2.13 Marine Diesel Engine Saildrive Compatible

The Vetus M213S---A is a highly efficient 2-cylinder marine diesel engine designed for sailboats requiring a compact, fuel-efficient, and reliable propulsion system. Delivering 12 HP at 3000 RPM, it ensures smooth and consistent power delivery with a maximum torque of 32.7 Nm at 1600 RPM. Equipped with the STM5801 Saildrive SD10 ZF-2.49R, it provides excellent maneuverability and reduced vibration for enhanced sailing comfort. The engine features a water-cooled top cover, effectively reducing engine room temperature by up to 20%, and an advanced air filter system that decreases noise levels by 5 dB(A). Built with modern emission standards in mind, this engine is HVO-approved, supporting eco-friendly fuel alternatives that reduce carbon emissions by up to 90%.

Key Features:

• 2-cylinder, 4-stroke marine diesel engine for smooth and efficient operation
• 12 HP (8.8 kW) power output at 3000 RPM
• Maximum torque of 32.7 Nm at 1600 RPM
• STM5801 Saildrive SD10 ZF-2.49R for enhanced propulsion and easy maneuvering
• Water-cooled top cover lowers engine room temperature by up to 20%
• Advanced air filter and aluminum top cover reduce noise by 5 dB(A)
• Fuel-efficient design for optimal consumption and extended cruising range
• High-output marine alternator (120A) for rapid battery charging
• Electric start with 12V system for reliable ignition
• HVO-approved, allowing the use of low-carbon alternative fuels
• Durable and corrosion-resistant components for extended lifespan

Specifications:

• Engine Type: 4-stroke, naturally aspirated diesel
• Number of Cylinders: 2
• Displacement: 635 cm³
• Maximum Power Output: 12 HP (8.8 kW) at 3000 RPM
• Maximum Torque: 32.7 Nm at 1600 RPM
• Cooling System: 2-circuit water cooling
• Fuel System: Indirect injection
• Fuel Consumption: ~1.5 L per hour at cruising speed
• Alternator: 12V, 120A high-output marine alternator
• Starting System: Electric start
• Exhaust System: Wet exhaust with water injection
• Oil Capacity: 2.0 L
• Fuel Compatibility: Diesel and Hydrotreated Vegetable Oil (HVO)
• Saildrive Model: STM5801 Saildrive SD10 ZF-2.49R
• Noise Reduction: -5 dB(A) compared to conventional marine engines
• Overall Dimensions (L x W x H): 640 mm x 470 mm x 530 mm
• Dry Weight: 95 kg (excluding saildrive)
• Emission Compliance: RCD2 and SOLAS-approved
• Operating Temperature Range: -10°C to 50°C
• Vibration Dampening: Integrated engine mounts for smoother operation

Compatibility and Application:

The Vetus M213S---A is an ideal choice for sailboats requiring a compact, low-noise, and fuel-efficient diesel engine. Its saildrive compatibility ensures superior maneuverability, making docking and tight navigation easier. The engine's advanced cooling and exhaust systems allow for safe operation in confined engine compartments. With its HVO compatibility, it meets modern sustainability requirements, making it a future-proof choice for eco-conscious sailors.

Benefits:

• Compact and lightweight design for easy installation
• Quiet operation ensures a more comfortable sailing experience
• High fuel efficiency reduces overall running costs
• Fast battery charging with a powerful 120A alternator
• Eco-friendly fuel compatibility for reduced carbon footprint
• Reliable electric start system for hassle-free ignition
• Durable construction for extended service life
• Corrosion-resistant materials for marine environments
• Meets strict international emission and safety standards
• Optimized for saildrive applications, ensuring smooth and efficient sailing
