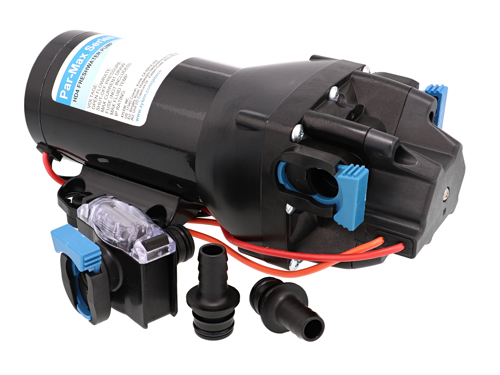

Jabsco Q402J-112S-3A - Par-Max HD4 Drinking Water Pump 24V 15 L/min 25 PSI
The Jabsco Q402J-112S-3A Par-Max HD4 is a 24V heavy-duty water pump designed for multi-outlet freshwater delivery with high durability, quiet operation, and protection features.
- Dry self-priming capability up to 2.13 meters (7 ft)
- Runs dry without damage
- Equipped with vibration-dampening feet for quiet performance
- Integrated sealed pressure switch for on-demand operation
- Includes 2 x 1/2" quick connect straight hosebarb fittings
- Comes with inline 40 mesh strainer
- Voltage: 24V DC
- Flow rate: 15 liters per minute (4 US GPM)
- Shut-off pressure: 25 PSI (1.7 BAR)
- Cut-in pressure: 10 PSI
- Max current: 4.0 Amps
- Recommended fuse: 10A (not included)
- Pressure rating: 25 PSI operating / 30 PSI inlet
- Self-primes up to 8 ft (2.4 m)
- Temperature range: 0°C to 60°C (32°F to 140°F)
- Dimensions (LxWxH): 239 x 104 x 97 mm
- Weight: 2.92 kg
- Inlet/Outlet: Fittings for 13mm (1/2") ID hose
- Wire leads: 12" (305mm), 14 AWG (2.5mm²)
- Certifications: ISO 8846 Ignition Protected, CE Certified, RCM compliant
- Brand: Jabsco
- Model: Q402J-112S-3A
- Replaces: 509738
- Order number: 00320630
- Supplier code: Q402J-112S-3A
- Barcode: 671880841887
- Guarantee: 3 years
-
