€ 285,08
1-2 weeks delivery time
-
+
The Jabsco Q401J-118N-3A HotShot HD4 is a heavy-duty 12V deck wash pump providing 15 L/min at 60 PSI, featuring self-priming up to 2.4m, dry run capability, vibration-dampening feet, sealed pressure switch, and comes with multiple hose fittings and accessories.
- Description
- Ask a Question
-

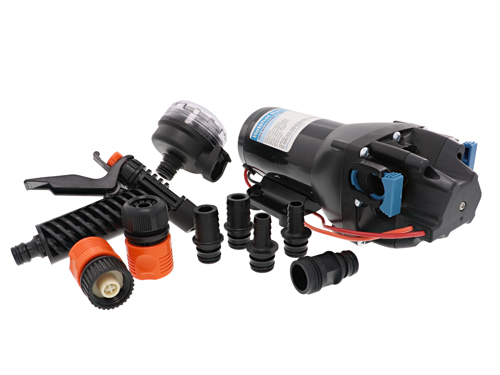

Jabsco Q401J-118N-3A - HotShot HD4 Deck Wash Pump 12V 15 L/min 60 PSI
The Jabsco HotShot HD4 Q401J-118N-3A is a powerful 12V washdown pump designed for high-pressure cleaning applications. Built with durability and performance in mind, it includes heavy-duty motor components and user-friendly fittings.
- Voltage: 12V DC
- Flow Rate: 15 LPM (4 US GPM)
- Shut-off Pressure: 60 PSI (4.1 BAR)
- Cut-In Pressure: 50 PSI
- Self-Priming: Up to 8ft (2.4m) dry prime
- Dry run capable without damage
- Vibration-dampening feet for quiet operation
- Sealed pressure switch for on-demand use
- Inlet Pressure Max: 30 PSI (2.1 bar)
- Amperage: 11A at 60 PSI
- Recommended Fuse Size: 20A (not included)
- Dimensions: 239mm (L) x 104mm (W) x 97mm (H)
- Weight: 3.2 kg
- Pump Type: 4 chamber diaphragm
- Hose Fittings: 13mm (1/2"), 19mm (3/4"), and US Garden Hose Thread
- Includes: Inline strainer (40 mesh), straight hose barb fittings, 90° 20 mesh strainer, trigger nozzle, quick connect adapters
- Temperature Range: 0°C to 60°C (32°F to 140°F)
- Certification: ISO 8846 Ignition Protected, CE Certified, RCM compliant
- Size of leads: 305mm (12"), 14 AWG (2.5mm²)
- Model Number: Q401J-118N-3A
- Order Number: 00320661
- Barcode: 671880841917
- Replaces: JAB-32605-0392, 32605-0092, 31700-0092, 31700-0392, 82405-0092
-
