SKU:
TN 00320665
€ 443,92
1-2 weeks delivery time
-
+
The Jabsco P601J-219N-3A HotShot HD6 Deck Wash Pump is a robust 12V DC diaphragm pump designed for heavy-duty deck washing. It delivers 23 liters per minute at 70 PSI, features a durable powder-coated motor shell, cast aluminum parts, vibration-dampening feet, and an integrated pressure switch for automatic operation. The pump can self-prime up to 2.1 meters, run dry without damage, and comes with various fittings and approvals for marine use.
- Description
- Ask a Question
-
Jabsco P601J-219N-3A - HotShot HD6 Deck Wash Pump 12V 23 l/min 70 psi
This high-performance 12V DC diaphragm washdown pump from Jabsco Xylem is designed for heavy-duty deck washing applications. The HotShot HD6 model features an enhanced wide-diameter motor with a durable powder-coated shell and cast aluminum components to boost pressure capacity and longevity.
- Voltage: 12V DC
- Flow rate: 23 liters per minute (6 US gallons per minute)
- Maximum pressure: 70 PSI (4.8 BAR)
- Maximum current draw: 19 amps
- Recommended fuse size: 25 amps
- Dimensions: 259mm (L) x 129mm (W) x 119mm (H) / 10.2" x 5.1" x 4.7"
- Dry self-priming up to 2.1 meters (7 feet)
- Vibration-dampening feet for quieter operation
- Integrated sealed pressure switch for automatic on-demand activation
- Can run dry without damage due to membrane design

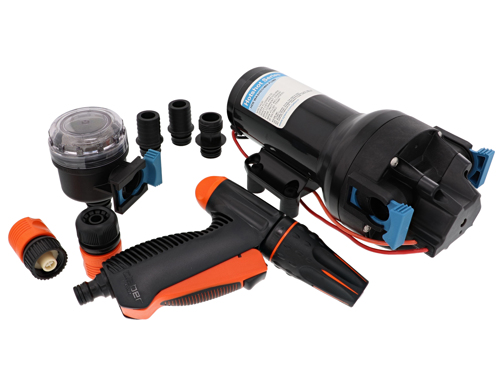

- Supplied with quick connect hose barb and Garden Hose Thread fittings, 90° 20 mesh strainer, trigger nozzle, and hose adapters
- Approvals: ISO 8846 Ignition Protected, CE Certified, RCM compliant
- Operating pressure range: Cut-in at 50 PSI, cut-out at 70 PSI (4.8 BAR)
- Weight: 8.06 kg
- Inlet/outlet fittings for 13mm (1/2") ID hose and US Garden Hose Thread
- Temperature range: 0°C to 60°C (32°F to 140°F) ambient and fluid
- Replaces JAB-82605-0092
- Order number: 00320665
- Supplier code: P601J-219N-3A
- Barcode: 6718808420060
-
