SKU:
TN 00320637
€ 404,22
1-2 weeks delivery time
-
+
The Jabsco P601J-215S-3A Par-Max HD6 Fresh Water Pump is a 12V pump delivering up to 22.7 l/min at 40 psi, with a 5-chamber diaphragm, self-priming to 2.1 meters, dry run capability, and built-in bypass for smooth operation.
- Description
- Ask a Question
-

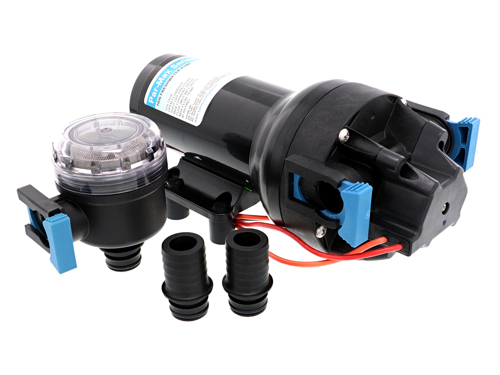

Jabsco P601J-215S-3A - Par-Max HD6 Fresh Water Pump 12V 23 l/min 40 psi
This Par-Max HD6 12V fresh water pump offers efficient water delivery for potable water systems with multiple outlets. It produces up to 22.7 liters per minute at open flow and features a pressure switch that activates between 20 psi and 40 psi. Constructed with a 5-chamber Santoprene diaphragm and EPDM valves, it self-primes up to 2.1 meters and can run dry without harm. The built-in bypass reduces cycling for smoother operation. The pump comes with snap-in hose ports and a 40 mesh strainer for added protection.
- Voltage: 12V DC
- Flow rate: up to 22.7 liters per minute (6 US gallons per minute)
- Pressure cut-in: approx. 1.4 bar (20 psi)
- Pressure cut-out: approx. 2.8 bar (40 psi)
- Diaphragm type: 5-chamber Santoprene
- Valve material: EPDM
- Self-priming height: up to 2.1 meters
- Dry run capability without damage
- Bypass included for smoother flow and less cycling
- Ports: 2 × 19mm (3/4") hose barb, 1 × 40 mesh strainer
- Max amperage: 15A
- Recommended fuse: 25A
- Dimensions (H×W×L): 119 × 129 × 260 mm
- Order number: 00320637
- Supplier code: P601J-215S-3A
- Barcode: 671880841979
-
