The Jabsco P501J-119N-3A HotShot HD5 Deck Wash Pump is a robust 12V diaphragm pump with 19 l/min flow and 70 psi pressure, equipped with vibration-dampening feet, quick connect fittings, and a sealed pressure switch for automatic operation.
- Description
- Ask a Question
-

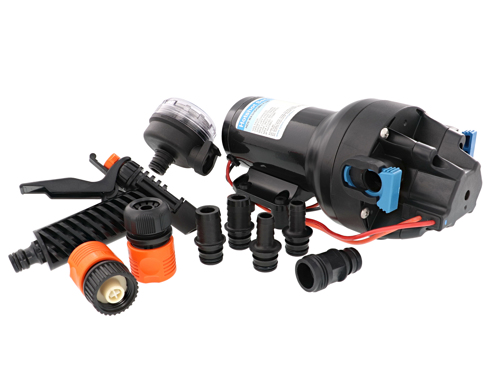

Jabsco P501J-119N-3A - HotShot HD5 Deck Wash Pump 12V 19 l/min 70 psi
The Jabsco HotShot HD5 12V DC pump is a powerful diaphragm washdown pump designed for demanding tasks. It features a robust motor with a powder-coated shell and cast aluminum components to enhance durability and pressure performance. Its vibration-dampening feet ensure quiet operation, while the integrated sealed pressure switch allows for automatic on-demand use. The pump self-primes up to 2.1 meters and can run dry without damage, making it reliable in various conditions. It includes quick connect fittings and a trigger nozzle for convenience.
- Voltage: 12V DC
- Flow rate: 19 liters per minute (5 US gallons per minute)
- Maximum pressure: 70 PSI (4.8 bar)
- Maximum current: 16.0 Amps
- Recommended fuse: 25A
- Dimensions (L×W×H): 244 × 127 × 119 mm (9.6" × 5.0" × 4.7")
- Approvals: ISO 8846 Ignition Protected, CE Certified, RCM compliant
- Cut-in pressure: 60 PSI
- Cut-out pressure: 70 PSI (4.8 bar)
- Dry self-priming up to 8 feet (2.4 meters)
- Fittings for 13mm (1/2") ID hose, 19mm (3/4") hose, and US Garden Hose Thread
- Supplied with inline 40 mesh strainer, quick connect fittings, trigger nozzle, and adapters
- Operating temperature: 0°C to 60°C (32°F to 140°F)
- Weight: 3.265 kg
- Brand: Jabsco
- Model number: P501J-119N-3A
- Order number: 00320664
- Supplier code: P501J-119N-3A
- Barcode: 671880841962
-
