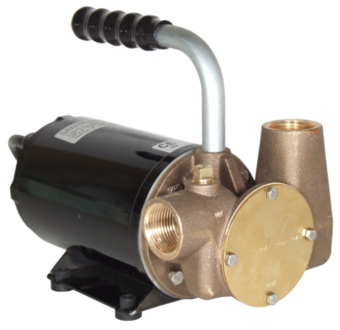

Jabsco 53041-2003-24D - Utility 40 Self-Priming Flexible Impeller Pump

Jabsco 53041-2003-24D - Utility 40 Self-Priming Flexible Impeller Pump

The Jabsco 53041-2003-24D Utility 40 is a high-performance, self-priming flexible impeller pump designed for a variety of industrial, marine, and fluid transfer applications. Its robust construction, advanced features, and ability to handle solids make it a versatile solution for demanding environments.

Key Features:

• Rapid self-priming from dry up to 3 meters for efficient startup.
• Handles both hard and soft solids without clogging or damage.
• Built-in dry-running protection for up to 30 minutes after initial prime.
• Corrosion-resistant bronze pump body and stainless steel shaft for durability.
• Carbon-ceramic mechanical shaft seal prevents leaks and extends lifespan.
• Nitrile oil-resistant impeller compatible with a wide range of fluids.
• Compact, fully serviceable design with minimal wearing parts for easy maintenance.
• IP54-rated motor for protection against dust and water spray.

Specifications:

• Connections: 1" BSP internal threaded ports.
• Dimensions: 253 mm (L) x 117 mm (W) x 214 mm (H).
• Packaged Dimensions: 340 mm (L) x 290 mm (W) x 300 mm (H).
• Weight: 9.53 kg (Actual), 10.53 kg (Packaged).
• Output: Up to 45 liters per minute (11.9 gallons per minute) at 3-meter head.
• Maximum Differential Pressure: 1.6 bar (23.2 PSI).
• Motor: 24V DC, 0.25 kW, IP54-rated electric motor.
• Self-Priming Capability: Up to 3 meters vertical lift.
• Dry Run Protection: Up to 30 minutes after initial priming.
• Maximum Operating Temperature: 60°C (140°F).
• Impeller Material: Nitrile, oil-resistant for versatile fluid handling.
• Noise Level: Low operating noise for user comfort.
• Power Consumption: Approximately 250 Watts.
• Operating Voltage Range: 22-28V DC for stable performance in variable conditions.
• Sealing Type: Carbon-ceramic mechanical shaft seal for leak prevention.
• Maximum Fluid Viscosity: 1500 cSt, suitable for a variety of fluids.
• Fluid Compatibility: Suitable for water, oils, light fuels, and mixed liquids with small solids.
• Maintenance: Easy to disassemble and service with readily available spare parts.

Compatibility and Application:

• Ideal for industrial processes, marine bilge pumping, and fluid transfer tasks.
• Suitable for handling oil, water, and mixed liquids with solids.
• Can be used for diesel transfer, irrigation, and general utility pumping.
• Designed for easy integration with existing systems in tight spaces.

Benefits:

• Delivers reliable, high-performance operation for challenging tasks.
• Corrosion-resistant materials ensure long-term durability and reduced maintenance costs.
• Dry-running protection and robust design enhance operational safety.
• Compact and lightweight construction allows for easy installation and portability.
• Low noise levels and smooth operation improve user experience.
• Energy-efficient design reduces power consumption and operational costs.
• Versatile performance makes it suitable for a wide range of applications and environments.
