SKU:
TN 00320565
€ 1.038,54
1-2 weeks delivery time
-
+
The Jabsco 52530-1100 is a compact double diaphragm pump system with an integrated pre-pressurized accumulator tank, operating at 24V for smooth automatic flow on larger boats. It delivers variable flow rates up to 36 liters per minute, has a shut-off pressure of 40 psi, and is self-priming up to 3 meters.
- Description
- Ask a Question
-

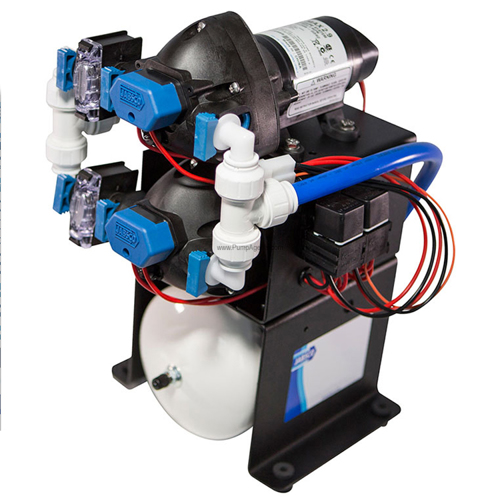

Jabsco 52530-1100 - Double Stack 9 Pump And Tank System 24V 36 L/Min
The Jabsco 52530-1100 is a compact double pump system combined with a pre-pressurized accumulator tank. It operates automatically with two-stage pumping to ensure smooth flow and reduce cycling, ideal for larger boats with variable demand.
- Order number: 00320565
- Supplier code: 52530-1100
- Barcode: 671880615938
- Model: 52530-1100
- Voltage: 24 Volts DC
- Port size: 3/4 inch hose barb
- Flow rates: 4.8 GPM (18 LPM) at low demand; 9 GPM (34 LPM) at high demand
- Shut-off pressure: 40 psi (2.8 bar)
- Self-priming up to 6-10 feet (2-3 meters)
- Two-stage diaphragm pump with run-dry ability and thermal overload protection
- Complies with ISO 8846 MARINE standards
- Dimensions (LxWxH): 345 x 310 x 345 mm
- Weight: 8-9.5 kg (shipping weight 9.5 kg)
-
