Jabsco 51200-2011 - Bronze Pump 200-Size Foot Mounted With BSP Threaded Ports

Jabsco 51200-2011 - Bronze Pump 200-Size Foot Mounted With BSP Threaded Ports

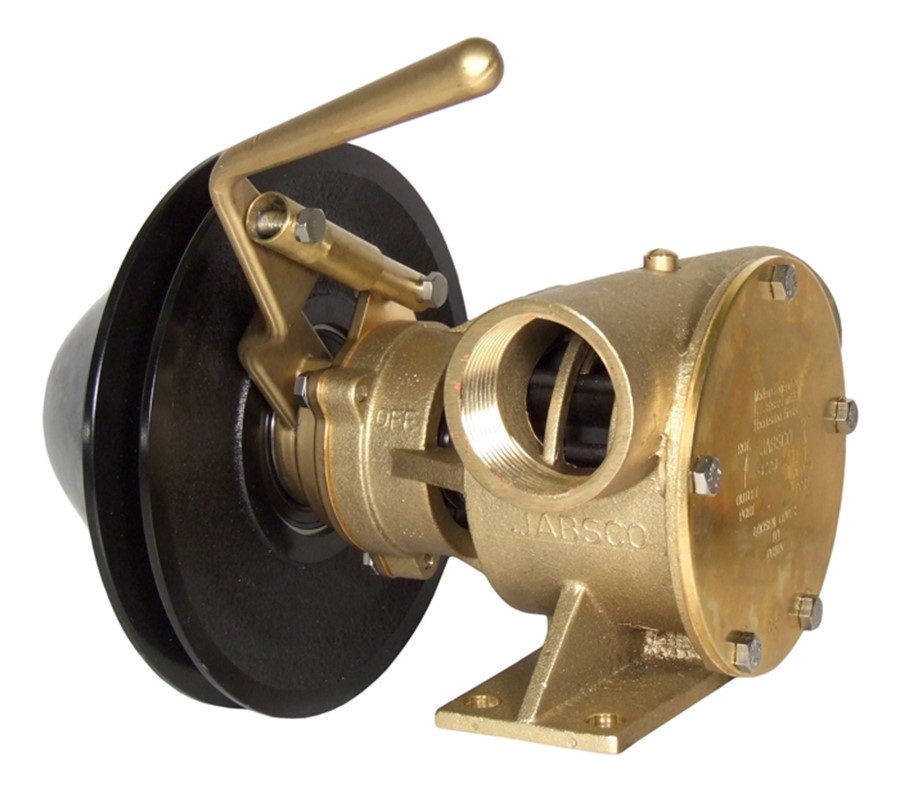

The Jabsco 51200-2011 Bronze Pump is a robust and high-performance pump designed for heavy-duty marine and industrial applications. This 1½” bronze pump is foot-mounted with BSP threaded ports, providing ease of installation and compatibility with various systems. The pump features a manual clutch with a 1A / 1B pulley, allowing smooth and efficient operation. With a maximum output of 195 liters per minute (43 gallons per minute) at 1500 rpm and a 3-meter total head, it is ideal for applications such as bilge and deck wash systems. Its durable construction includes a bronze body, stainless steel shaft, and mechanical shaft seal, ensuring longevity and resistance to harsh environmental conditions. The neoprene impeller is designed for optimal performance with clean or lightly contaminated water, and a nitrile option is available for handling oily water. The pump is self-priming up to a 3-meter vertical lift, offering reliable performance in challenging conditions. The Jabsco 51200-2011 is a versatile, heavy-duty pump perfect for use in marine, industrial, and commercial applications.

Key Features

• Heavy-duty bilge and deck wash pump with 1½” BSP internal threaded ports.
• Manual clutch with 1A / 1B pulley for efficient and reliable operation.
• Bronze body and stainless steel shaft for enhanced durability and corrosion resistance.
• Self-priming up to 3 meters vertical lift for reliable operation in various setups.
• Maximum output of 195 liters/min (43 gallons/min) at 1500 rpm with a 3-meter total head.
• Mechanical shaft seal ensures long-lasting performance with minimal maintenance.
• Neoprene impeller for optimal performance in clean or lightly contaminated water; nitrile impeller option available for oily water applications.
• Self-adjusting clutch for ease of use and maintenance.
• Ideal for heavy-duty applications like marine bilge and deck wash systems.
• Reliable and durable construction suitable for industrial and commercial use.

Specifications

• Model: Jabsco 51200-2011
• Pump Type: Bronze Pump 200-Size
• Flow Rate: 195 liters/minute (43 gallons/minute) at 1500 rpm
• Maximum Head: 3 meters (9.8 feet)
• Voltage: Manual clutch (no electric motor)
• Material: Bronze body, stainless steel shaft, mechanical shaft seal
• Impeller: Neoprene (standard), Nitrile (optional for oily water)
• Clutch: Manual with 1A / 1B pulley
• Self-Priming: Up to 3 meters vertical lift
• Dimensions (L x W x H): 244mm x 180mm (pulley diameter)
• Weight: 8.90 kg (approx. 9.90 kg packed)
• Package Dimensions: L: 34.00 cm, H: 26.00 cm, W: 28.00 cm
• Ports: 1½” BSP internal threaded ports
• Fuse Size: 15A
• Maximum Current: 10A
• Operating Temperature: -10°C to +60°C (14°F to 140°F)
• Self-Priming Distance: Up to 3 meters (9.8 feet)
• Motor Type: Manual clutch; no electric motor
• Duty Cycle: Continuous operation with intermittent rest periods recommended
• Applications: Bilge and deck wash, clean water, lightly contaminated water, and oily water (with nitrile impeller)
• Alternative Models: Jabsco 51200-2021 (BSP)

Applications

• Ideal for marine bilge and deck wash systems requiring high-flow pumping.
• Suitable for transferring clean or lightly contaminated water in industrial environments.
• Perfect for handling oily water when equipped with a nitrile impeller option.
• Ideal for water transfer tasks that require self-priming capabilities.
• Reliable for use in harsh marine environments and commercial settings.

Benefits

• High output of 195 liters/min (43 gallons/min) ensures fast water transfer, ideal for demanding applications.
• Corrosion-resistant bronze body and stainless steel shaft ensure long-lasting durability.
• Neoprene impeller (with nitrile option) delivers maximum performance with clean, lightly contaminated, or oily water.
• Self-priming up to 3 meters of vertical lift for reliable operation even in variable conditions.
• Manual clutch system offers operational flexibility and easy maintenance.
• Compact and robust design ideal for installation in marine and industrial environments.
