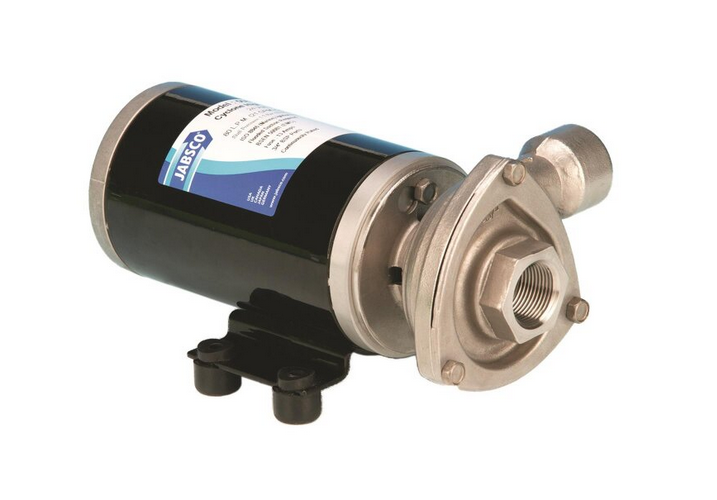

Jabsco 50860-0024 - Centrifugal High Pressure Cyclone Pump Non-Self-Priming 24V

Jabsco 50860-0024 - Centrifugal High Pressure Cyclone Pump Non-Self-Priming 24V

The Jabsco 50860-0024 Centrifugal High Pressure Cyclone Pump is designed for high-output, intermittent-duty applications requiring fluid transfer under high pressure. Powered by a 24V DC motor, this pump offers a flow rate of 80 liters per minute (18 gallons per minute) at a 0.1m head, with a maximum recommended head of 12 meters (39.37 feet). Ideal for ballast transfer systems, diesel, water, and mild chemical transfer, it features a robust stainless steel body for durability and can be used with shut-off nozzles for precise control. With a non-self-priming design, it requires flooded suction to operate efficiently, ensuring optimal performance for high-flow systems in marine, industrial, and agricultural settings.

Key Features:

• High-output centrifugal pump with a flow rate of 80 liters per minute (18 gallons per minute) at 0.1m head.
• Maximum total head of 12 meters (39.37 feet) with a pressure capacity of up to 1.2 bar (17.4 PSI).
• Intermittent-duty pump with a recommended 30 minutes on / 30 minutes off duty cycle for reliable operation.
• Non-self-priming design, requiring flooded suction for optimal performance.
• Stainless steel construction for exceptional durability and resistance to corrosion in harsh environments.
• Can be used with trigger nozzles and shut-off nozzles for versatile fluid handling.
• 24V DC motor ensures energy-efficient operation across various applications.
• Fluid temperature compatibility from +4°C to +95°C (39°F to 203°F), making it suitable for various fluid types.
• ¾” BSP internal threaded ports for secure, easy connections.

Specifications:

• Model: Jabsco 50860-0024
• Pump Type: Centrifugal High Pressure Cyclone Pump
• Voltage: 24V DC
• Flow Rate: 80 liters per minute (18 gallons per minute) at 0.1m head
• Maximum Total Head: 12 meters (39.37 feet)
• Maximum Pressure: 1.2 bar (17.4 PSI)
• Minimum Recommended Total Head: 5 meters (16.4 feet)
• Connections: ¾” BSP internal threaded ports
• Fuse Size: 13 amps
• Maximum Current: 10.5 amps
• Dimensions (L x W x H): 205mm x 120mm x 122mm (8.07 inches x 4.72 inches x 4.8 inches)
• Weight: 4.82 kg (Approx. 5.32 kg packed)
• Temperature Range: +4°C to +95°C (39°F to 203°F)
• Duty Cycle: Intermittent duty, with a 30-minute on / 30-minute off cycle
• Body Material: Stainless steel for durability and corrosion resistance
• Mounting: Foot-mounted for easy installation
• Certifications: CE, ISO 9001
• Alternative Models: Jabsco 50870-2024 (BSP), Jabsco 50870-0024 (NPT), Jabsco 50860-0024 (NPT)

Applications:

• Ideal for ballast transfer systems requiring high flow and moderate pressure.
• Efficient for transferring diesel, water, and mild chemicals in marine, industrial, and agricultural environments.
• Can be used in fluid management systems where high-pressure performance and intermittent operation are required.
• Compatible with trigger nozzles and shut-off nozzles for controlled fluid delivery.

Benefits:

• High-pressure capacity ensures reliable fluid transfer in demanding systems.
• Stainless steel construction provides longevity and resistance to corrosion in various environments.
• Intermittent-duty design allows for flexibility in operation with reduced wear.
• Wide temperature range supports compatibility with different types of fluids.
• Energy-efficient 24V DC motor for reliable and cost-effective operation in off-grid environments.
• Simple installation with ¾” BSP threaded ports ensures secure and easy setup.
• Can handle fluids containing light contaminants, suitable for diverse industrial applications.
